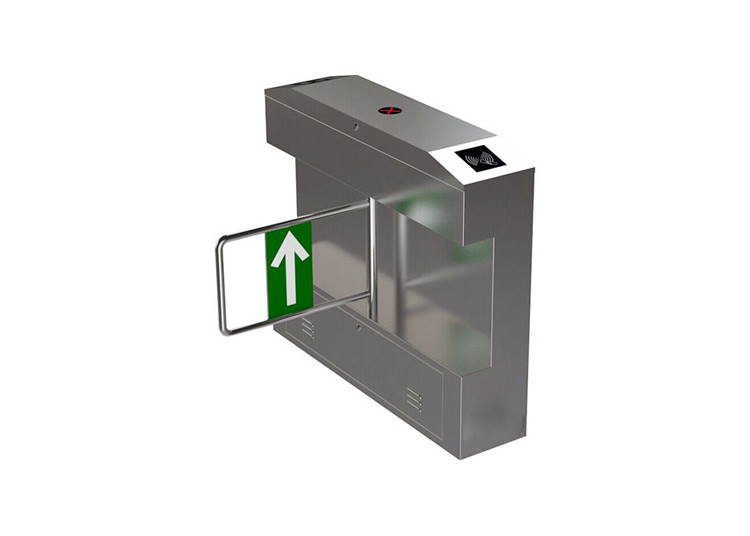

600mm Channel ASS304 1s Pedestrian Security Turnstile
  • 600mm Channel ASS304 1s Pedestrian Security Turnstile
  • 600mm Channel ASS304 1s Pedestrian Security Turnstile
  • 600mm Channel ASS304 1s Pedestrian Security Turnstile
  • 600mm Channel ASS304 1s Pedestrian Security Turnstile

600mm Channel ASS304 1s Pedestrian Security Turnstile

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB03
Product Details
Max Flow Rate:
30 Person Per Minute
Gate Opening Speed:
Working Temperature:
Surface Finishing:
Wire Drawing
Working Humidity:
Housing Material:
High Light:

1s Pedestrian Security Turnstile


SS304 Pedestrian Security Turnstile


600mm Channel Swing Arm Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

Access Control Pedestrian Security Swing Arm Turnstile For hospital Entrance


Swing gate is the barrier gate blocking and releasing by swinging the barrier. The material of the barrier is usually stainless
steel, plexiglass, acrylic. It is mainly used for the management of entries and exits. The usual application places
allow people to pass, or for people who have luggage, and disabled people with wheelchair




Features & function of swing arm barrier


1. Support bi-directional opening


2. Can integrate with access control system.


3. Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.


4. Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.


5. During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.


6. Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.


7. Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.


8. Gate length can be easily customized to fit site requirement.


9. Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.


10. Gate motor mechanism is self lock at open and close position.


11.The electric control adopts DC motor to drive stable and reliable, and has low failure rate.


12. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;


13. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.




Specifications of swing arm barrier:




Channel width 600mm (default)
Arm lenght 530mm (default)

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

35 person per minute

Gate swing angle

180 degree

Gate opening speed


Reset time when power on


Working temperature


Package Wooden box


600mm Channel ASS304 1s Pedestrian Security Turnstile 0600mm Channel ASS304 1s Pedestrian Security Turnstile 1
