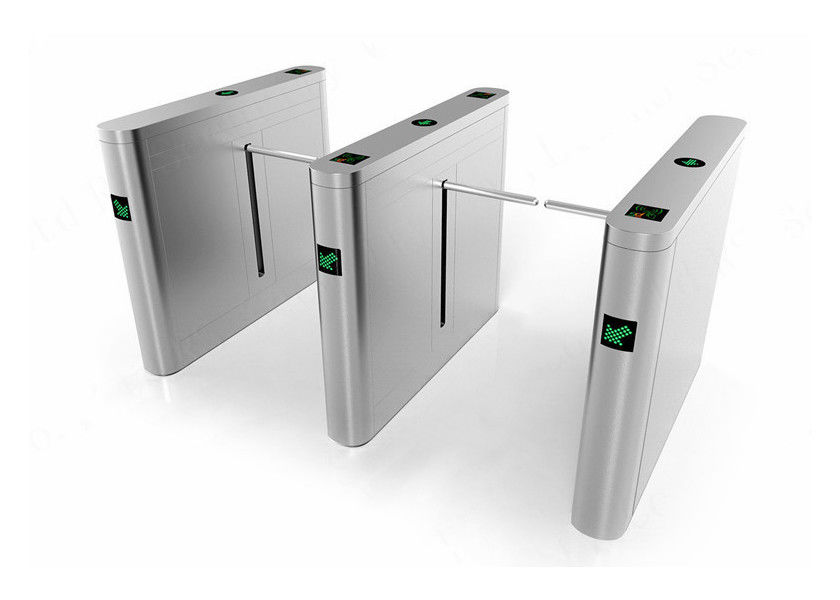

Face Recognition 1000mm Height 40W Power Consumption Drop Arm Turnstile Access Control System
  • Face Recognition 1000mm Height 40W Power Consumption Drop Arm Turnstile Access Control System
  • Face Recognition 1000mm Height 40W Power Consumption Drop Arm Turnstile Access Control System
  • Face Recognition 1000mm Height 40W Power Consumption Drop Arm Turnstile Access Control System
Face Recognition 1000mm Height 40W Power Consumption Drop Arm Turnstile Access Control System

Face Recognition 1000mm Height 40W Power Consumption Drop Arm Turnstile Access Control System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DA02
Product Details
Control Method:
Face Recognition
More Feature:
Temperature Detection
OEM Feature:
Mask Detection
Housing Width:
160 To 200mm
Housing Height:
1000mm
Direction:
Single Or Bi-direction
Highlight:

Face Recognition Drop Arm Turnstile

,

40W Drop Arm Turnstile

,

10mA Half Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description
Face Recognition 1000mm Height 10mA 40W Drop Arm Turnstile
COVID-19 Protection Face Recognition Access Control System Drop Arm Single Arm Turnstile
Product Specifications
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption 40W
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate 25 to 30 person per minute
Arm length 450mm (default)
Working temperature -20°C to +60°C
Current 3A
Control circuit DC24
Working humidity 0 to 95% RH
Time of opening or closing Less than 1 second
Key Features
  • Programmable running status with built-in keyboard on main board
  • Fault detection and alarm functions for easy maintenance
  • Mechanical anti-pinch function with automatic motor stop and reset
  • Automatic reset function cancels authority after preset time (default 5 seconds)
  • Anti-breakthrough function with automatic locking until opening signal received
  • Compatible with various access control devices: IC/ID card readers, bar codes, fingerprints (access controller needed)
  • Configurable as normally open or normally closed
  • Automatic power-off opening and power-on closing for fire safety compliance
  • Configurable single-direction or bi-directional operation
  • Alarm function for illegal intrusion and reverse intrusion detection
Product Dimensions
Face Recognition 1000mm Height 40W Power Consumption Drop Arm Turnstile Access Control System 0
SINOMATIC Service
  • Detailed response to all inquiries within 24 hours
  • OEM services available including custom logo printing and retail box packaging
  • On-site installation training at our factory or door-to-door service available
Warranty: 1 year
