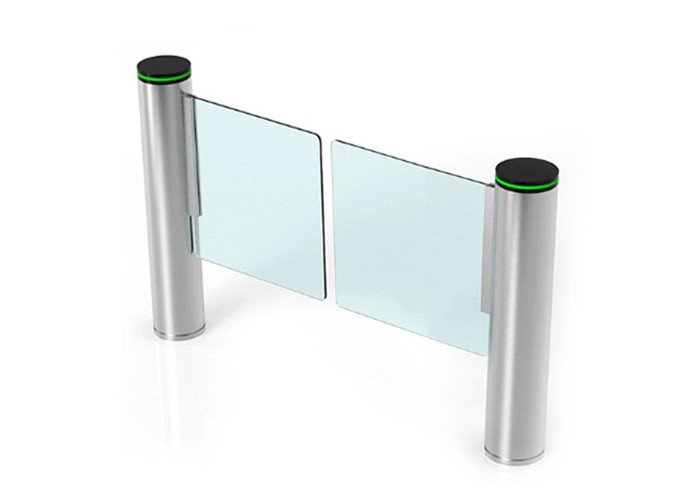

DC Brushless Motor RS485 200W Glass Passage Speed Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ISB10
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 500 pcs per month
Product Details
Cylinder Diameter 168mm Motor Type Brushless DC Motor
Flap Length 600 To 1000mm Arm Material Arcrylic
Service Life 5 Million Times Communication Interface RS485 , TCP/IP
IP Rate IP 54 Max Power Consumption 200W
Package Plywood Warranty 12 Months
High Light

200W Glass Passage Speed Gate

,

RS485 Glass Passage Speed Gate

,

DC Brushless Motor Swing Gate

Leave a Message
Product Description

Intelligent DC brushless motor security access control 900mm wide passage glass speed gate



DESCRITPION



1. Integrated swing gate is designed to control pedestrians entering or exiting restricted areas, usually

    used of high pedestrian traffic flow in both directions.
2. The body is made from brushed stainless steel which creates a seamless and elegant access point

    to blend into most indoor environment.
3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button,

    Fingerprint and Biometric device).
4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.



SPECIFICATIONS



Model
SN-IPS10
Power
AC220V±10V/110V±10V,50/60HZ;
Operating Temperature
-45℃-60℃
Relative Humidity
≤95%, No Condensation
Passage Width
600mm to 1000mm
Passing Speed
Normally open-50 persons/min; Normally closed-30 persons/min
Motor
DC Brushless motor, 140W/24V
Gate Opening and Closing time
≤ 0.4S
Infrared Sensors
No
Working Environment
indoor and outdoor(added the rainshed )
Motor Operation Speed
1600R/Min
Communication Distance
≤1200M
Input Connection
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
Communication Connection
RS485 Communication
Barrier Material
Acrylic glass, SS304 and so on
Material
Stainless steel 304,thickness is no less than 1.5mm
Running Life
5 Million(Continuous Opening and Closing Operation)
Protect Level
IP54
Colour
SSB(US32D)-tainless Steel Brushed / PowderCoating(Optional), or other Colour you like
Operation Place
Subway Station, Hoverport, TourismSports,Exhibition, SwimmingHall,Residence Area,Enterprise's Entrance and ExitAttendance,Gateway Guard,Charge Management,Special AccessControl



PRODUCT PHOTO






Functions& Features



1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.



2) The processing mode in emergency or in special conditions.



3) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.



4) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.



5) Strong system expending capability, available to add new product at any time



6) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection



7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000



8) Light and sound alarm indication function, preventing illegal entry or irregular passing



9) Powerful on-line intelligent control mode, facilitating you

A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.

B) To set up operation mode for passage entry and exit.

C) To read card with multiple times, the special function meeting the application requirements of a particular site.

D) To set up the card reading with or without memory.

E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.

F) Setting function humanized for reset of over time passing.



Access control system

DC Brushless Motor RS485 200W Glass Passage Speed Gate 0

DC Brushless Motor RS485 200W Glass Passage Speed Gate 1





PRODUCT ADVANTAGES



FAQ

1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2.What is  your flap gates opening and closing time ?
-------- <=0.4s .


3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .


5.What's you warranty?
-------- 1 year time warranty .
