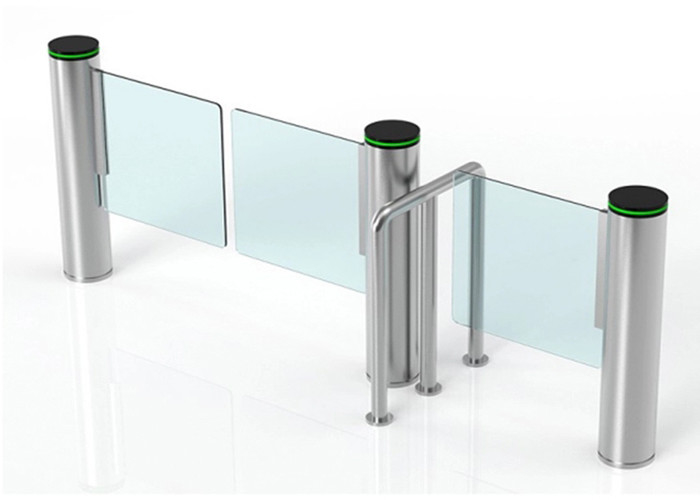

Fast Lane Cylindrical 168mm Pedestrian Swing Gate Self Closing
  • Fast Lane Cylindrical 168mm Pedestrian Swing Gate Self Closing
  • Fast Lane Cylindrical 168mm Pedestrian Swing Gate Self Closing
  • Fast Lane Cylindrical 168mm Pedestrian Swing Gate Self Closing

Fast Lane Cylindrical 168mm Pedestrian Swing Gate Self Closing

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ISB10
Product Details
Driving Motor:
DC 24V
Motor Type:
Brushless DC Motor
Arm Length:
600 To 1000mm
Arm Material:
Ss304 Or Acrylic
Direction:
Bi-directional
Service Life:
5 Million Times
IP Rate:
IP 54
Max Power Consumption:
200W
Noise:
≤50dB
High Light:

Cylindrical Pedestrian Swing Gate

,

Self Closing Pedestrian Swing Gate

,

168mm Airport Speed Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

Security System Self Closing Fast lane 168mm diameter Cylindrical airport High Speed Gate



PRODUCT DESCRITPION

Integrated swing barrier, which usually used in conjunction with turnstiles, pedestrian security gates are designed to provide authorized access to the handicap and disabled or delivery carts and dollies .



SN-IPS10 offers a solution which can secure disabled access or access to wheelchairs and carts in a limited space. This simple access
gate consists of a stainless steel column with a single glass/Acrylic barrier that can be operated by an access control system such as
a card reader or biometric device or from a nearby reception or security desk.



SN-IPS10 is available with different height glass barriers to increase the level of security.
Its design complements our range of Turnstile and Barriers. It is therefore very suitable as disabled access in combination with a bank of
advanced secured entry solutions





SPECIFICATIONS



  Description



Parameters



Power
AC100-250V,

  Frequency



  50/60Hz
Flap lenght
600mm to 1000mm
Flow Speed
Normally closed-30 persons/min
Motor
DC Brushless motor
Infrared Sensors
Not included
Working Environment
indoor and outdoor(added the rainshed )
Communication Distance
≤1200M
Input Connection
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
Communication Connection
RS485 Communication
   Housing dimension



   Φ168*1050mm



 Housing material
SS304
 Flap material
SS304 or Acrylic
Running Life
5 Million(Continuous Opening and Closing Operation)
Protect Level
IP54
Colour
SSB(US32D)-tainless Steel Brushed / PowderCoating(Optional), or other Colour you like
Operation Place
Subway Station, Hoverport, TourismSports,Exhibition, SwimmingHall,Residence Area,Enterprise's Entrance and ExitAttendance,Gateway Guard,Charge Management,Special AccessControl


Fast Lane Cylindrical 168mm Pedestrian Swing Gate Self Closing 0

Functions& Features



1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.



2) DC Brushless Motor, Maintenance Free



3) On-line or off –line mode(optional)



4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation



5) With direction indication, guiding passenger to entry and exit.



6) Self automatic locking to prevent force passing without the card



7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000



8) Light and sound alarm indication function, preventing illegal entry or irregular passing



9) Powerful on-line intelligent control mode, facilitating you

A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.

B) To set up operation mode for passage entry and exit.

C) To read card with multiple times, the special function meeting the application requirements of a particular site.

D) To set up the card reading with or without memory.

E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.

F) Setting function humanized for reset of over time passing.





PRODUCT DIMENSION

Fast Lane Cylindrical 168mm Pedestrian Swing Gate Self Closing 1



PRODUCT ADVANTAGES

Fast Lane Cylindrical 168mm Pedestrian Swing Gate Self Closing 2



MOQ

 1 set

Port

 Shenzhen, Guangzhou etc

Payment terms

 T/T /Western union/ MoneyGram

Producing capacity

 1000 Sets/Month

Leading time

 7 to 10 days

Package

 Wooden



FAQ

1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2.What is  your flap gates opening and closing time ?
-------- <=0.4s .


3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .


5.What's you warranty?
-------- 1 year time warranty .
