Swing Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-CWSB01 |

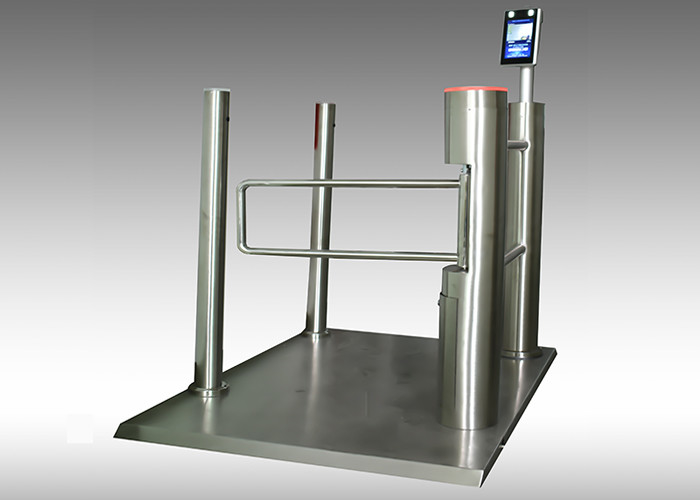

7-inch live mask and face recognition machine integrated with temperature measurement swing barrier gate
Swing barrier Features
1. WIDEST OPENING
Compared to tripod turnstile and flap barrier, swing barrier allow widest opening clearance.
The slim form factor only take up minimum space from passage clearance space. 2 unit swing barrier can be installed on same lane to give maximum clearance 1210mm (inclusive 10 mm clearance).
2. CUSTOMIZE OPENING
Swing barrier allow customizable opening. Arylic gate can be cut short according to clearance available at site to
achieve perfect fitting.Control system will auto synchronize both swing barrier installed in the same lane. Both swing barrier will open and close at the same time.
3. EASY INTEGRATION
A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal. After delay timer elapsed, swing barrier will automatically close back by itself.
4. DOUBLE SAFETY
Optional IR sensor can be installed to auto reverse the gate if obstacle is detected during closing. This prevent the closing gate to hit user that is still in the lane passage.
5. EMERGENCY RECOVERY
During power failure, swing barrier will automatically open for free pass through. This will fast escape in the event of emergency. When the power resume, swing barrier will automatically close back.
Swing barrier specs;
|
Working temperature
|
-20°C~+60°C
|
|
Operating voltage
|
DC 24V
|
|
Power supply input
|
AC220±10%V 50Hz/AC110±10% 60Hz
|
|
Optimal flow rate
|
30 person per minute
|
|
Arm lenght
|
Max. 800mm |
| Arm material | ss304/ acrylic |
|
Current
|
3A
|
|
Motor type
|
brushless DC motor
|
|
Openning or closing time
|
1s to 2s
|
|
Reset time when power on
|
3S
|
Face recognition device specs
| Technical parameter | |
| operating system | Embedded Linux |
| Memory | DDR3 8GB |
| Storage capacity | Built in standard 8GB, can be expanded to 128GB through TF card |
| Display | 7" HD IPS display |
| Monocular camera | 200W pixel, 120 degree wide angle lens, wide dynamic, white light night vision |
| Door opening mode | Support face recognition |
| Door opening time | ＜ 0.3s (30,000 base) |
| Face recognition rate | 99.8% |
| Minimum pixel | Face recognition supports a minimum face pupil distance of 20 pixels |
| Face base capacity | Max. 50,000 |
| Black and white list function | Supported |
Face recognition device Functions & features
Industrial chip platform and system
• Use Hisilicon chip, mini Linux, high stability
• low power consumption (as low as 4W)
• Support multiple styles of shell and customized appearance
High precision face recognition algorithm
• Embedded algorithm, millisecond comparison
• Accurate monocular detection, safe and efficient
• Up to 99.8% accuracy
Multi scene image exposure and correction algorithm
Support temperature measurement, display and high temperature warning
Support temperature interface protocol
Support mask reminding
Applications
suitable for park, community, school, hospital and other public places, and is usually used with gate and access control turnstiles.
