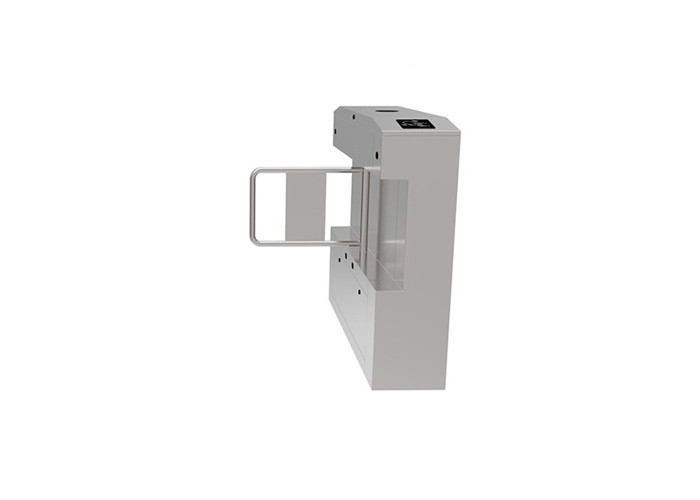

Swipe Card Swing Barrier Turnstile Gate 1.2mm SS304 Bi Direction 2s

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Type Swing Gate Material Thickness 1.2mm SS304
OEM/ODM Supported Application Indoor/outdoor With Tent
Arm Length 500mm To 800mm Warranty 1 Year
Standard CE Aterial Of Housing 304 Or 316 Stainless Steel
Direction Single Or Bi-direction Max Flow Rate 30 Person Per Minute
High Light

Swipe Card Swing Barrier Turnstile


1.2mm SS304 Swing Barrier Turnstile


2s Pedestrian Turnstile Gate

Leave a Message
Product Description

Swipe card access control electronic fully automatic dry contact signal swing barrier turnstile gate


Introduction of Pedestrian Swing Gate:


Sinomatic swing gates are ideal for indoor applications requiring access in one direction and ban on passage in the opposite.

Their elegant and versatile design presents a secure and stylish solution that can blend into numerous locations.

After each passage the gate swing panel is smoothly reset to home position.


Applications of Pedestrian Swing Gate:


Pedestrian swing gate SN-SB03 is suitable for indoor or outdoor with tent. They are optimized economical solution for railway,

bus station, factory, colleges, commercial building, library, stadium, hotel, bank and etc.


Swipe Card Swing Barrier Turnstile Gate 1.2mm SS304 Bi Direction 2s 0

Swipe Card Swing Barrier Turnstile Gate 1.2mm SS304 Bi Direction 2s 1


Features of Pedestrian Swing Gate:

  • Support bi-directional opening
  • Can integrate with access control system.
  • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
  • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
  • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
  • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
  • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
  • Gate length can be easily customized to fit site requirement.
  • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
  • Gate motor mechanism is self lock at open and close position.


Specifications of Pedestrian Swing Gate:




Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush-less motor)

Max flow rate

 30 person per minute

Gate swing angle

180 degree

Gate opening speed

1s to 2s

Reset time when power on


Working temperature



Case of Pedestrian Swing Gate:


Swipe Card Swing Barrier Turnstile Gate 1.2mm SS304 Bi Direction 2s 2
