Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W

  • Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W
  • Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W
  • Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W
  • Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W
  • Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W
  • Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-ISB10
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Driving Motor DC 24V Motor Type Brushless
Arm Length Max 1000mm Arm Material Ss304 Or Acrylic
Arm Turning Degree 180 Degree Service Life 5 Million Times
Communication Interface RS485 , TCP/IP IP Rate IP 54
Max Power Consumption 200W Noise ≤50dB
High Light

Integrated Channel Pedestrian Swing Gate

,

IP Handicapped Pedestrian Swing Gate

,

200W Swing Turnstile Gate
Leave a Message
Product Description

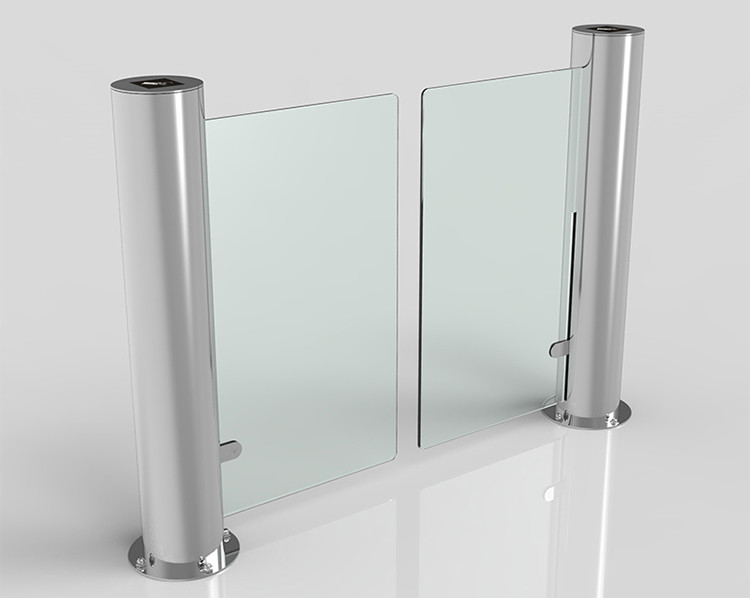

Anti Collision Airport Entrance boarding TCP/IP Handicapped 900mm Passing Integrated Channel Swing Gate



DESCRITPION



1. Integrated swing gate is designed to control pedestrians entering or exiting restricted areas, usually

    used of high pedestrian traffic flow in both directions.
2. The body is made from brushed stainless steel which creates a seamless and elegant access point

    to blend into most indoor environment.
3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button,

    Fingerprint and Biometric device).
4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5. Optical Turnstiles are suit for elegant and luxury entrance solutions.



Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W 0



Description Parameters
Lane Width 900-910mm
IP IP54
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz
Drive Mode Motor drive
Max Power Consumption 200W
Opening time 0.5S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 5,000,000 cycles
Outside packing 145x110x36cm
Working Environment -20°C~+60°C
Gross Weight 85KGS



Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W 1

PRODUCT DIMENSION

Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W 2



FEATURES AND FUNCTIONS



1. DC brushless motor is maintenance-free and new digital positioning.
2. Mechanical anti-pinch; optional in online mode or offline mode.
3. Real-time fault self-test and alarm prompts to ensure safe operation of the system, easy to maintain and use.
4. It has the light indication and the gate induction automatic lock function to guide pedestrians

    to enter and exit the passage and prevent forced passage.
5. Emergency or special situation processing mode; with standard input and output interfaces,

    it is convenient for the system to integrate with other devices, and can realize remote control and management.
6. Super combination ability, different styles, series channel products can be combined without affecting

    system performance.
7. Powerful system expansion capability, new products can be added at any time.
8. Remote control management: The state of the gate is operated remotely to meet the special needs of users and

    fire safety requirements.
9. Powerful self-checking function: The device is in fault monitoring state at any time. The error reporting function

    is friendly. The human-computer interaction is realized conveniently and quickly to realize maintenance;
10. Good anti-collision function (when the gate is in the state of opening and closing, if there is an object hitting the gate,

   it will stop moving and reverses back.
11. The service life is as high as 5 million times.



PRODUCT DIMENSION

Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W 3

PRODUCT ADVANTAGES

Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W 4



PRODUCT MECHANISM

Integrated Channel Swing Gate Anti Collision TCP IP Handicapped 200W 5
