SS316 Acrylic Swing Turnstile Barrier Arms Synchronization For Office Building

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB05
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 3-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 1000 pcs per month
Product Details
Direction 180 Degree Housing Material SS304 Or SS316
Case Thickness 2.0MM Application Indoor/outdoor With Tent
Control Input Dry Contact Warranty At Least 12 Months
Arm Material Acrylic Flow Rate At Least 30 Person/minute
High Light

SS316 Acrylic Swing Turnstile Barrier

,

Arms Synchronization Swing Turnstile Barrier

,

Office Building Access Control Turnstile

Leave a Message
Product Description

Access control entrance swing gate turnstile for public entrance and exit security control system



Introduction of swing barrier



Sinomatic swing barrier is an ideal passenger access management device produced by our company after years of research and development. Our standard product, made of 304 stainless steel, integrating with mechanism, electron, microprocessor an various identification technology, is able to achieve access intelligent control and management by configuring all kinds of identification devices, direction indicator and well-extended LED counting display.



Sinomatic Intelligent swing barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations, gym and other high level venues.



More photo

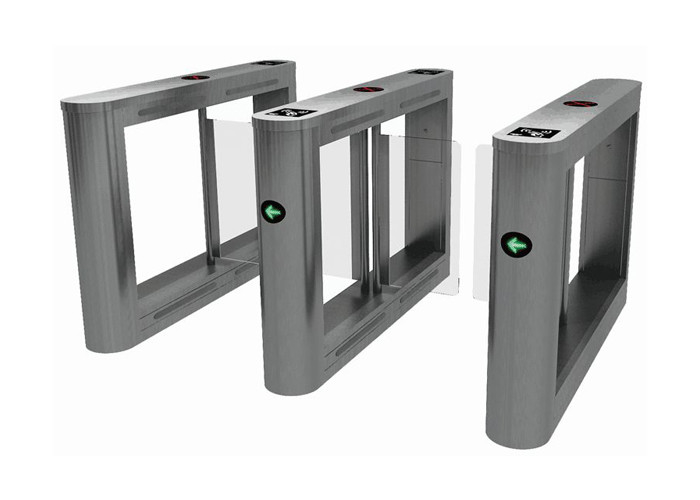

SS316 Acrylic Swing Turnstile Barrier Arms Synchronization For Office Building 0



Main functions and features

  1. With function of self-examine and alarm,it is convinient for maintain and use
  2. Being able to program operation state by the small keyboard in the main board.
  3. Arm will stop moving when it is blocked, which prevents pedestrians from being nipped or from hurt.
  4. Arms are automatically locked until opening signal is received
  5. Arms synchronization(adjustable)
  6. Light and sound alarm is generated when the illegal invasion and the tail followed.
  7. Unit can be adjusted to normal open or normal close to meet different conditions.
  8. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
  9. The arms automatically open when power off and automatically close when power is on, which accords with fire-fighting requirement.
  10. It can be directly controlled or managed by remote computer



Other design

SS316 Acrylic Swing Turnstile Barrier Arms Synchronization For Office Building 1





Specifications of Pedestrian Swing Gate:



Housing dimension
1200*220*980mm
Arm lenght
at least 320mm
Motor material
steel and aluminum alloy
Voltage
220V±15% or 110V±15%
Motor type
brushess 24V DC motor
Input interface
dry contact
Opening time
1s to 2s
Protection grade
IP 44
Working temperature
-25°C~+60°C



Options

  • Counter
  • Infrared reset function
  • Single direction or bi-direction are optional
  • Light and voice alarm function
  • The length of casework and arms are optional

Mode of operation



  • Card IN/Card OUT
  • Card IN/Free OUT
  • Free IN/Card OUT
  • Free IN/Free OUT

Reference

SS316 Acrylic Swing Turnstile Barrier Arms Synchronization For Office Building 2
