Waist High Pedestrian Swing Gate Stainless Steel Access Control System Brushless Motor

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Normal Life-span 5 Million Times Transit Speed 30 Persons/min
Frame Material SS304/SS316 Power 110V/220V
Sensors Included Driving Current 3A
Net Weight 25KG Driving Motor DC 24V
Motor Type Brushless Transit Direction Single Or Bi-direction
High Light

security swing gate


swing gate turnstile


brushless motor swing barrier turnstile

Leave a Message
Product Description

Waist high stainless steel access control system brushless motor swing arm turnstile With Led light cap




Swing turnstile designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests,we built-in standard electrical interface to best-fit customer easier using magnetic card,barcode,ID&IC cards integrated .This system provides civilized,well-organized pass management and meantime its prohibit illegal persons entry&out.

SN-SB01 compact size and turbular shape allow it to easily fit into places with very limited space. Access control and time attendance reader can be integrated into top cover.

SN-SB01 design is simplified to achieve optimum function at more affordable cost. Control system mechanism is modular for easy maintenance servicing and part replacement.

SN-SB01 is typically used together with flap barrier or turnstile as manual lane for handicapped user in building lobby. Ideal for low traffic and light duty site that requires more affordable solution.

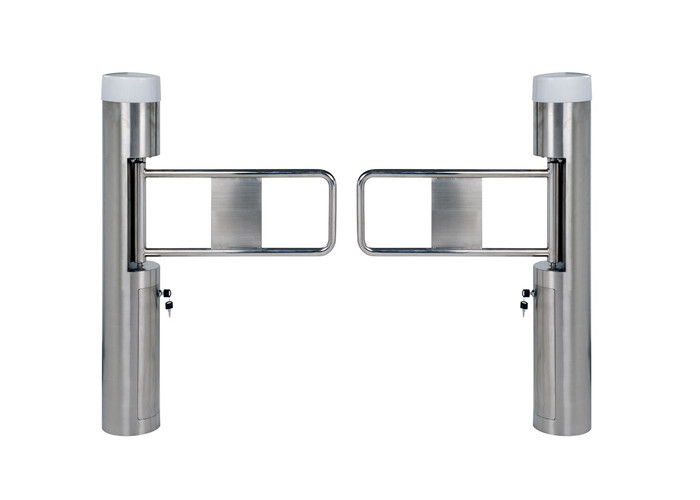

Product photo:

Waist High Pedestrian Swing Gate Stainless Steel Access Control System Brushless Motor 0

Waist High Pedestrian Swing Gate Stainless Steel Access Control System Brushless Motor 1

Product size


Waist High Pedestrian Swing Gate Stainless Steel Access Control System Brushless Motor 2





Compared to tripod turnstile and flap barrier, swing barrier allow widest opening clearance.
The slim form factor only take up minimum space from passage clearance space. 2 unit swing barrier can be installed on same lane to give maximum clearance 1210mm (inclusive 10 mm clearance).



Swing barrier allow customizable opening. Arylic gate can be cut short according to clearance available at site to
achieve perfect fitting.Control system will auto synchronize both swing barrier installed in the same lane. Both swing barrier will open and close at the same time.



A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal. After delay timer elapsed, swing barrier will automatically close back by itself.



Optional IR sensor can be installed to auto reverse the gate if obstacle is detected during closing. This prevent the closing gate to hit user that is still in the lane passage.



During power failure, swing barrier will automatically open for free pass through. This will fast escape in the event of emergency. When the power resume, swing barrier will automatically close back.


Specifications of Pedestrian Swing Gate:



Working temperature
Operating voltage
DC 24V
Power supply input
AC220±10%V 50Hz/AC110±10% 60Hz
Optimal flow rate
30 person per minute
Arm lenght
Max. 800mm
Arm material ss304/ acrylic
Motor type
brushless DC motor
Openning or closing time
1s to 2s
Reset time when power on



1-MOQ ?

Sample order accepted.


2-Do you offer guarantee for the products

Yes, we offer at least 12 months warranty to our products.


3-How long is the leading time?

For standard item

Sample:      3 working days

10-50 sets: 10 working days
50-100 sets:20 working days

4-How about the payment terms?

30% T/T down payment, balance 70% before shipping.

our company already joined the trade assurance of alibaba.com which will highly protect your order security.


5-Is it ok to print my logo on product?

We offer OEM/ODM services:

1)We can make custom design turnstile

2)Can print your logo on turnstile, can customize the retail box packing and other things.


6-How to buy?

Firstly let us know your requirements or application

Secondly we quote according to your requirements or our suggestions

Then the customers can place sample order for testing purpose.

If the sample testing ok, go back for bulk order and we will offer discount.
