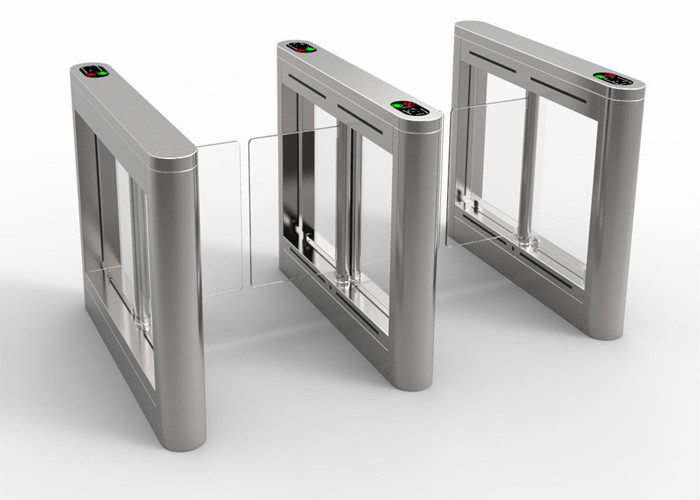

TCP IP Swing Barrier Gate SS304 Acrylic Noise Free For Metro Station
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SB05 |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
| Supply Ability | 1,000 pcs per month |
Product Details
| Arm Material | Acrylic Or SS304 | Frame Dimension | L1200xW220xH1000mm |
|---|---|---|---|
| Material | Stainless Steel | Drive Motor | DC Brushless Motor |
| Control Patent | Automatic | Passing Speed | 30 Person/minute |
| High Light | TCP IP Swing Barrier Gate,SS304 Acrylic Swing Barrier Gate,Metro Station Pedestrian Turnstile Gate |
||
Product Description
TCP/IP Access Control Fast Opening Speed Noice free Elegant shape Speedlane Swing Turnstile For Metro Station
Product description
Sinomatic swing barrier is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device)
Main Features of swing barrier gate
1. Made of brushed stainless steel which is robust, sigid and sable.
2. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
3. Alarm function, in case of illegal intrusion and reverse intrusion.
4. Infrared sensor to prevent pinching pedestrians.
5. Anti-breakthrough function. The gate is locked automatically until opening signal received.
6. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
7. Green/red LED indicator.
8. Automatic reset function. If the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
9. When power off, optical turnstile will open automatically to allow free passage.
Specifications of swing arm barrier:
| Housing Material | SS304 |
| Housing thickness | 1.5mm |
| Housing dimension | L1200xW220xH1000mm |
| Arm lenght | 320mm to 500mm |
| Passage width | 700mm to 1000mm |
| Power Supply | 220V, 110V (±10%) |
| Motor | 24V DC brushless |
| Power Consumption | 35W |
| Operation Temperature | -20 °C ~+60 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor with Shelter |
| Flow Rate | About 30 people per minute |
| Lifetime | No less than 5,000,000 |
| Noise | ≤50dB |
| Emergency mode | Supported |
Case references
1. Housing Type: Left, Middle,Right
Please be noted there are left, middle and right speed gate housings. The configures and prices are different. When placing order, please indicate clearly how many pcs of each you need or Please give us a sketch of your projects, we will give you advice.
2. Access control system
A full access control system is including Access controller, RFID card reader(barcode reader, fingerprint reader etc..), RFID/IC card, card issuer, exit button, we can provide it for you or provide by yourself, our turnstile can be integrated with most of the access control system.
