DC Brushless Swing Arm Turnstile Anti Pinch Acrylic Glass Arm SS304
  • DC Brushless Swing Arm Turnstile Anti Pinch Acrylic Glass Arm SS304
  • DC Brushless Swing Arm Turnstile Anti Pinch Acrylic Glass Arm SS304

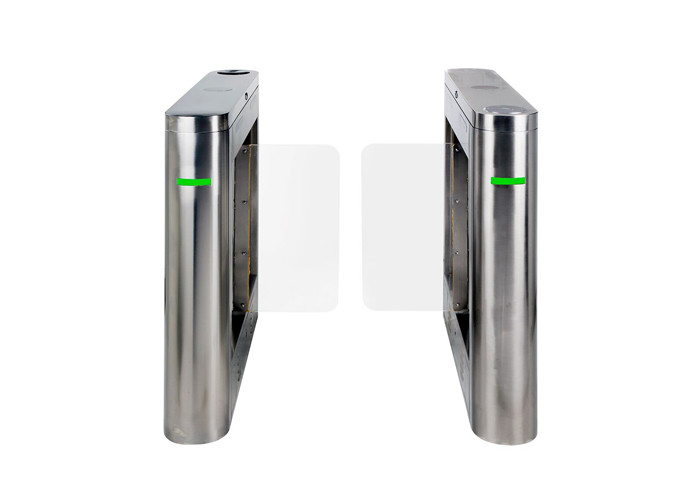

DC Brushless Swing Arm Turnstile Anti Pinch Acrylic Glass Arm SS304

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB05
Product Details
Case Material:
SS304/ 316 Optional
Arm Material:
Acrylic Glass
Product Life:
5 Million Times
Control Signal:
Relay Switch Signal/Dry Contact Signal
Single Or Bi-direction
LED Indicator:
Swing Arm Drive Angle:
180 Degree
Drive Motor:
DC Brushless Motor
High Light:

DC Brushless Swing Arm Turnstile


Anti Pinch Swing Arm Turnstile


SS304 Pedestrian Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
1,000 pcs per month
Product Description

Fast speed DC brushless motor pedestrian control automatic swing barrier gate


About the swing barrier gate:
The brush-less anti-collision swing barrier is an intelligent passage management equipment developed
and produced by our company. It integrates the exquisite mechanical transmission, microprocessor
control, voice and various reading and writing technologies. By configuring different reading and
writing equipment, the intelligent control and management of the passage can be completed. The
machine can realize the public channel's dissuade and access control.


Features of swing barrier gate:

1. Can be used with variety of card readers: IC / ID card readers, bar codes,
fingerprints, etc. (Via dry contact signal)
2. Direction can be set as unidirectional or bidirectional.
3. The device can be connected to management computer to realize remote control
and management.
4. LED direction indicator (optional)
5. Gate auto opens when power off and auto close when power on, complying with
fire safety requirements.
6. Support infrared photocell for anti-pinch and reset function.

7. Anti-breakthrough function. The gate is locked automatically until opening signal
8. Synchronization functions (for dual gate equipment).
9. Automatic reset function. Should the user fail to pass within the prescribed time
(default time is 5 seconds), the system will cancel the authority of the current user
10. Gate can be set as normally open or normally closed.


Specifications of swing arm barrier:


Framework Material 304 Stainless Steel
Dimension L1200*W220*H1000mm
Net Weight 80kg
Passage Width Min.800mm
Passing Direction Single directional / Bi-directional
Power Supply 100V~240V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 35W
Operation Temperature -20 °C ~+60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor with Shelter
Flow Rate About 30 people per minute
LED Indicator Yes
Infrared Sensor Yes
Emergency Automatic arm open when power off


Product details:

DC Brushless Swing Arm Turnstile Anti Pinch Acrylic Glass Arm SS304 0

DC Brushless Swing Arm Turnstile Anti Pinch Acrylic Glass Arm SS304 1
