Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function

  • Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function
  • Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function
  • Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function
  • Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function
  • Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function
  • Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DAB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Arm Opening / Closing Time 1S Arm Closing 1S
OEM/ODM Supported Arm Length 450mm(default)
Direction Single Or Bi-direction Size Of Housing 600*260*1000mm
Max Flow Rate 25 To 30 Person Per Minute Material SS304
Package Wooden Box
High Light

security turnstile gate

,

turnstile barrier gate

,

half height drop arm turnstile
Leave a Message
Product Description

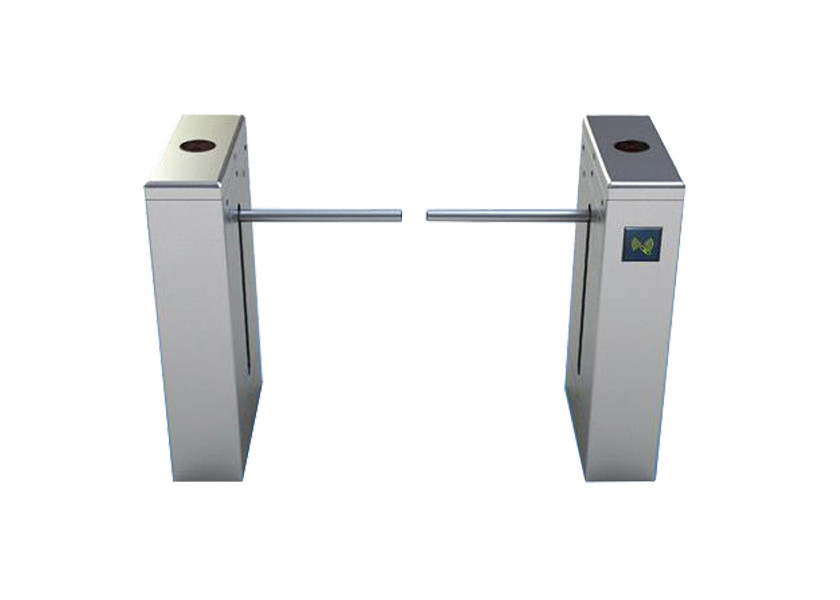

Office Entrance SS304 Stainless Steel half height Drop Arm Turnstile With Alarm function



Introduction of Drop Arm Turnstile:



The one arm barrier is mainly for people in large places to implement the entrance and exit control management of high-tech products,Its appearance with stainless steel profiles, fine craft, full-featured, small appearance, anti-rust, durable, able to resist external damage,The equipment integration mechanical, electronic, microprocessor control of electronic ticket system, access control attendance system, parking system, face recognition system, anti-static, fingerprint, palm, iris and other biometric identification system integration and use.



Features & functions



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function.

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gates)

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed).

9. Direction can be set as uni-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Support infrared photocell for anti-pinch and reset function



DIMENSION

Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function 0



Specifications of Drop Arm Turnstile:



Power supply
AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption
40W
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
25 to 30 person per minute
Housing dimension 1200x165x1000mm
Arm length
450mm(default)
Working temperature
-20°C~+60°C
Current
3A
Control circuit
DC24
Working humidity
0~95%RH
Time of opening or closing
less than 2S
Normal life 5 million times



Cases reference

Office Entrance Drop Arm Turnstile SS304 Stainless Steel Half Height With Alarm Function 1



Fields of Application
● Station, dock, site, school, supermarket entrance control management
● Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
● Enterprises and institutions attendance, access control, consumption entrance and exit control management
● Special channel access control





Why choose us:



1. Our Factory has 17 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
