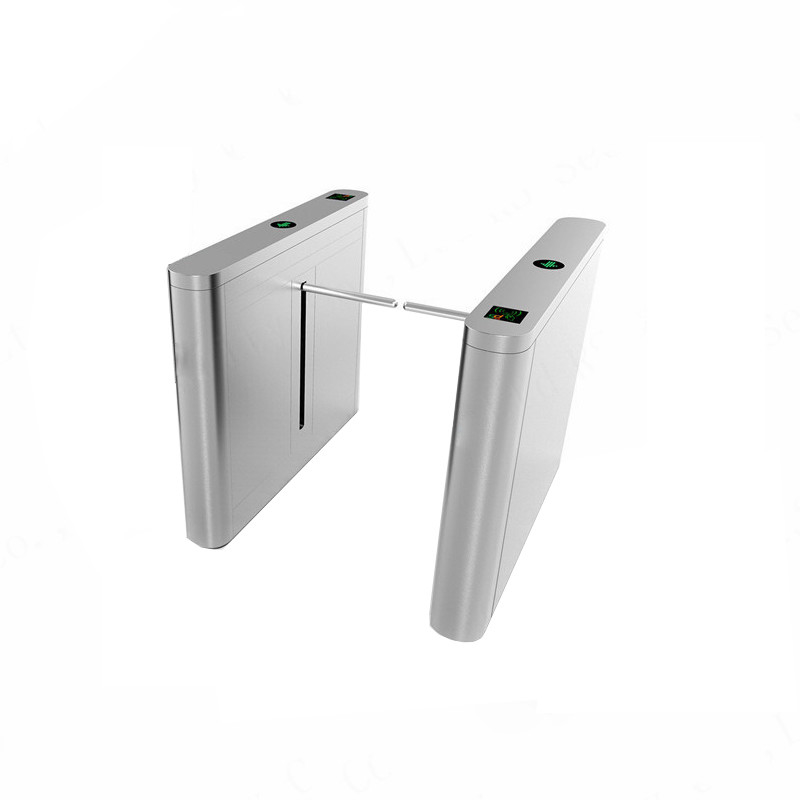

SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System
  • SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System
  • SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System
  • SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System
  • SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System
  • SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System
  • SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System

SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DA02
Product Details
Arm Opening / Closing Time:
1S
Arm Closing:
1S
OEM/ODM:
Supported
Arm Length:
450mm(default)
Direction:
Single Or Bi-direction
Size Of Housing:
1200*165*1000mm
Max Flow Rate:
25 To 30 Person Per Minute
Material:
SS304
Package:
Wooden Box
Highlight:

security turnstile gate

,

turnstile barrier gate

,

one arm barrier SS304

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description
SS304 Drop Arm Turnstile with Infrared Sensor Access Control System
Multi-Lane Face Recognition Time Attendance Optical Turnstile System
The drop arm barrier turnstile is designed for high-traffic environments to implement comprehensive entrance and exit control management. Constructed with stainless steel profiles, this system features fine craftsmanship, full functionality, compact design, rust resistance, and durability against external damage. The equipment integrates mechanical, electronic, and microprocessor-controlled systems, compatible with electronic ticketing, access control attendance, parking systems, face recognition, anti-static technology, and various biometric identification systems.
Features & Functions
  • Fault detection and alarm functions for easy maintenance
  • Programmable operation with built-in keyboard control
  • Mechanical anti-pinch safety feature
  • Anti-breakthrough security with automatic locking
  • Synchronization capability for dual gate configurations
  • Automatic reset function with customizable timing
  • Configurable as normally open or normally closed
  • Compatible with various card readers and access controllers
  • Uni-directional or bi-directional operation settings
  • LED direction indicators for clear user guidance
  • Fire safety compliance with auto-open during power failure
  • Alarm functions for illegal and reverse intrusion detection
  • Infrared photocell support for anti-pinch and reset functionality
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Maximum Flow Rate 30 persons per minute
Housing Dimensions 1200x165x1000mm
Arm Length 450mm (default)
Operating Temperature -20°C to +60°C
Current 3A
Control Circuit DC24
Operating Humidity 0-95% RH
Opening/Closing Time Less than 2 seconds
Operational Lifespan 5 million cycles
Application Reference Images
SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System 0 SS304 Drop Arm Turnstile with Infrared Sensor and 30 Person Per Minute Flow Rate for Public Door Access Control System 1
Fields of Application
● Transportation hubs: Stations, docks, construction sites, schools, supermarket entrances
● Public venues: Exhibition centers, swimming pools, tourist attractions with ticketing systems
● Corporate facilities: Enterprise attendance, access control, consumption management
● Specialized security channels and restricted access areas
Why Choose Our Turnstile Systems
  • OEM/ODM experience in access control turnstile manufacturing
  • Prompt delivery with standard model inventory availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders accepted for product testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days for client inspection
