90 Degree Folding Boom Automatic Barrier Gate with 120W Power and CE Certification
  • 90 Degree Folding Boom Automatic Barrier Gate with 120W Power and CE Certification
  • 90 Degree Folding Boom Automatic Barrier Gate with 120W Power and CE Certification
  • 90 Degree Folding Boom Automatic Barrier Gate with 120W Power and CE Certification
90 Degree Folding Boom Automatic Barrier Gate with 120W Power and CE Certification

90 Degree Folding Boom Automatic Barrier Gate with 120W Power and CE Certification

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG102
Product Details
Arm Type:
90 Degree Folding Arm
Thickness Of Housing:
1.5mm
Surface Finish:
Powder Coating
Color:
Orange, Yellow, Red, Blue, Grey, Black, White Etc
Warranty:
1 Year
Standard:
CE Certificated
Highlight:

traffic barrier gate

,

parking lot barrier gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,D/A,L/C,D/P
Supply Ability
3,000pcs per month
Product Description

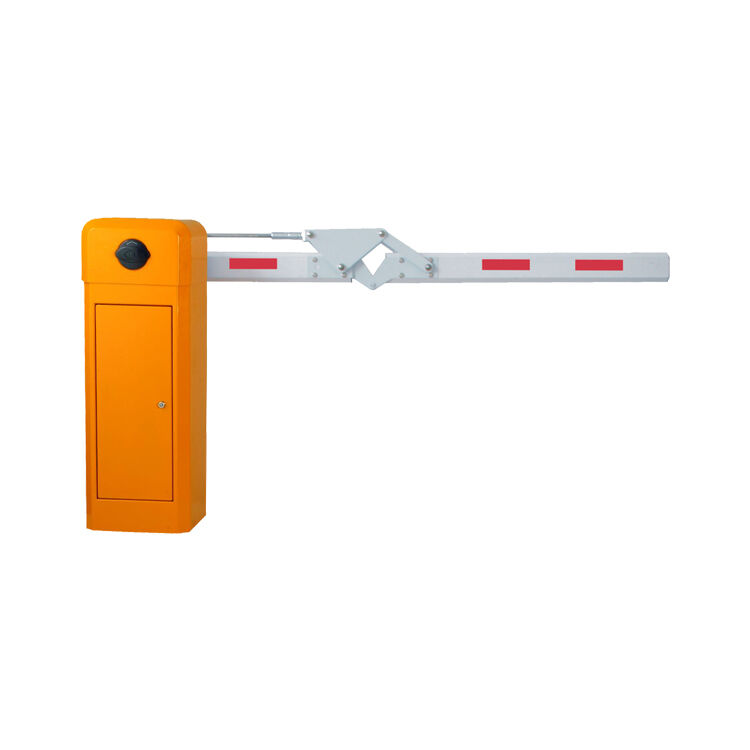

90 Degree Folding Boom Automatic Car Park Barrier Gate
High-speed remote control electronic barrier gate with 90-degree folding boom for comprehensive parking management systems.
Product Introduction
  • User-friendly design with external clutch release - no need to open casing for manual operation
  • Easy manual arm lifting and closing when clutch is released
  • Intuitive three-input control system for arm up, stop, and down functions
  • Enhanced security with cam-lock protection for all internal components
Applications
Ideal for both outdoor and indoor parking areas including sports centers, business centers, hospitals, supermarkets, airports, shopping malls, warehouses, hotels, factories, condominiums, and car rental companies. Can be customized for integration with automated payment or ticketing parking systems.
Key Features
  • Manual release capability
  • Machine core with compression spring for enhanced safety
  • Die-casting aluminum alloy motor for precision and thermal efficiency
  • Integrated motor cooling fan prevents overheating
  • Double safety limit switches (photoelectric limit switch/motor memory sensor)
  • Automatic reversing on obstacle detection
  • Auto-closing function
  • Optional infrared photocell for anti-bumping protection
  • Support for external and internal vehicle loop detectors
  • Traffic light interface compatibility
  • Wire control (switch signal) and remote control (418MHz)
  • Optional RS485 communication module
Technical Specifications
Parameter Straight 90° Folding 180° Folding 2 Fence 3 Fence
Running Time 1 sec 3 sec 6 sec 3 sec 6 sec
Max Boom Length 3m 4.5m 6m 3m 5m
Boom Dimension (W×H) 45x80mm 45x100mm 45x100mm 45x100mm 45x100mm
Boom Weight 3kg 4.5kg 5kg 6.5kg 8kg
Voltage 220V±10%, 110V±10%
Frequency 50/60Hz
Motor Voltage 220V
Power 120W
Working Temperature -40°C to +75°C
Protection Grade IP44
Product Gallery
90 Degree Folding Boom Automatic Barrier Gate with 120W Power and CE Certification 0
Why Choose Our Barrier Gates
  • More than 20 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model stock availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Trial orders accepted for product testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options including sea shipment, air cargo, and express delivery
  • Factory visits welcome on working days
