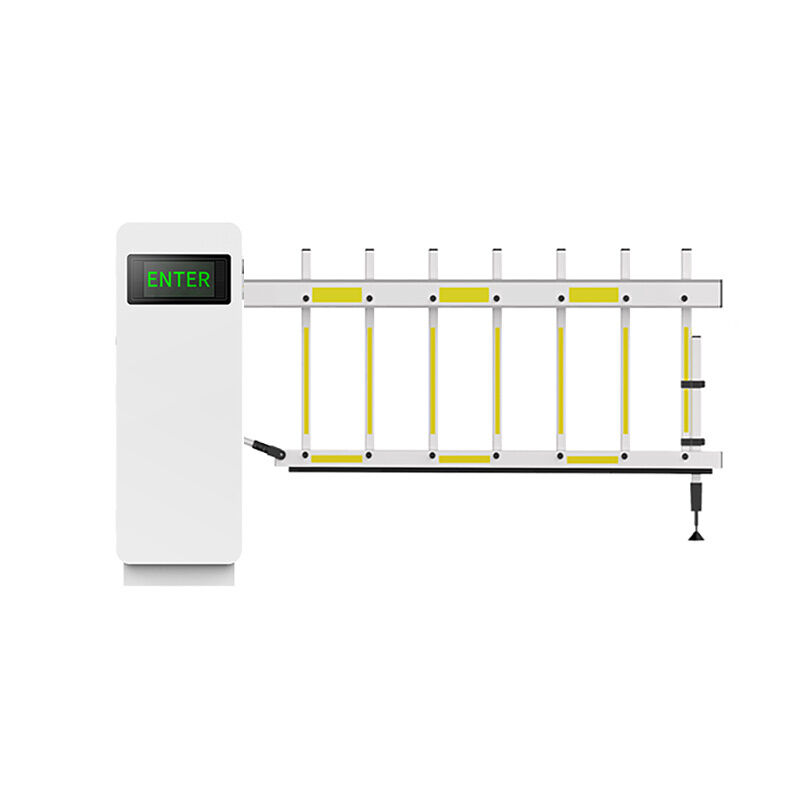

Stainless Steel LED Display 200W Power Barrier Gate for Parking Access Control

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	J-DZ07

Product Details

Opening/Closing Time:

2.5-6s Adjustable, Optional 0.3S/0.6S/1.2S

Protection Grade:

IP54

Housing Color:

Pearl White

Housing Dimension:

985×340×300mm

Output Power:

200W

Operating Parameters:

More Than 8 Million Times

Maximum Pole Length:

Boom Type:

Round, Straight, Folding, Fencing

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Plywood box/Pallet

Delivery Time

5-10 working days after payment received

Payment Terms

T/T,Western Union

Supply Ability

3,000 pcs per month

Product Description

Stainless Steel White Pearl Color Car Parking Access Control Commercial Building Rust-resistant Barrier Gate With LED

Professional boom barrier gate designed for entrance and exit control with advanced corrosion resistance and reliable performance.

Key Features

LED Display: 192×96mm LED module for real-time display of entrance and exit information, improving parking efficiency
Integrated Gearbox: 200W high-power bipolar gear motor with four-link transmission structure for high transmission efficiency
Fixed Platen: Chassis includes fixed pressure plate for easy installation in various environments
Advanced Coating: Acid washing and phosphating pre-treatment with outdoor special powder coating to prevent paint peeling
Durable Construction: Sanding oxidation treatment process on gate poles to prevent fading
Brushless Motor: 24V DC brushless control with adjustable speed for precise, smooth operation
Remote Control (Optional): Support for small program remote control to monitor gate status and fault alarms
Bluetooth Debugging: Standard mobile phone Bluetooth function for easy linking and speed adjustment

Technical Specifications

Parameter Name	Specification
Chassis size	985×340×300mm
Maximum pole length	6m with chassis (straight rod)
Output power	200W
Operation Speed	2.5-6s adjustable, optional 0.3S/0.6S/1.2S
Operating parameters	More than 8 million times
Product Movement	24V DC Brushless Motor
Color	Pearl White
Accessories	Remote control, key, M10×70 screws, 12×150 expansion screws
