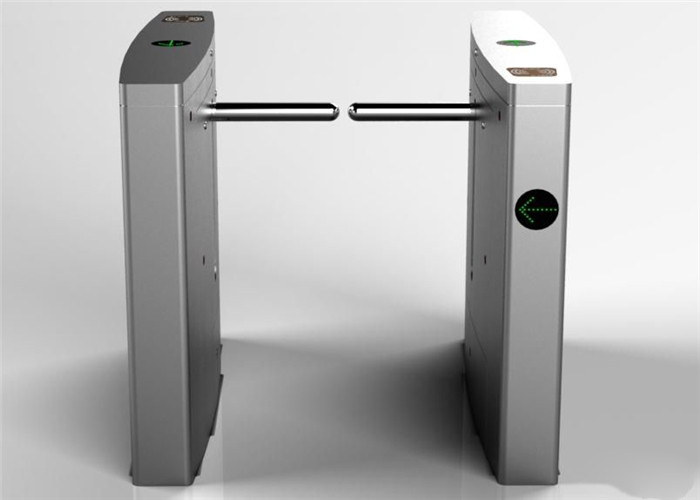

Infrared Photocell Mechanical Single Arm Drop Arm Turnstile Turn Style Door

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Motor Voltage 24V DC Motro Arm Opening / Closing Time 1s
Waranty 2 Year Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Size Of Housing 120*23*100 Cm Arm Diameter 38mm
High Light

speed gate turnstile

,

turnstile barrier gate

Leave a Message
Product Description

Anti-pinch infrared photocell single direction head counter mechanical single arm  turnstile with alarm function



Introduction of single arm turnstile:



1. Malfunction self-checking and alarm warning, ease of maintenance and installation

2. Operation method can be programmable

3. Anti-Pinch, stop when it detects movement in the passage.



Applications of  single arm turnstile:



Sinomatic single arm turnstile gate is mainly applied in the metro station, wharf, subway station, bus station, factories, office building , hotel, clubs, school, library, supermarket and institution that need intelligent access management.



Features of  single arm turnstile:

  • Fault detection and alarm functions, easy to use and maintenance.
  • The running status can be programmed and controlled with the built-in keyboard on the main board.
  • Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again later.
  • Anti-breakthrough function. The gate is locked automatically until opening signal received.
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • Gate can be set as normally open or normally closed.
  • Can be used with variety of access control devices: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
  • Direction can be set as single-direction or bi-direction.
  • Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
  • Alarm function, in case of illegal intrusion and reverse intrusion, etc.



Specifications of  single arm turnstile:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Cases of  single arm turnstile:



Infrared Photocell Mechanical Single Arm Drop Arm Turnstile Turn Style Door 0
