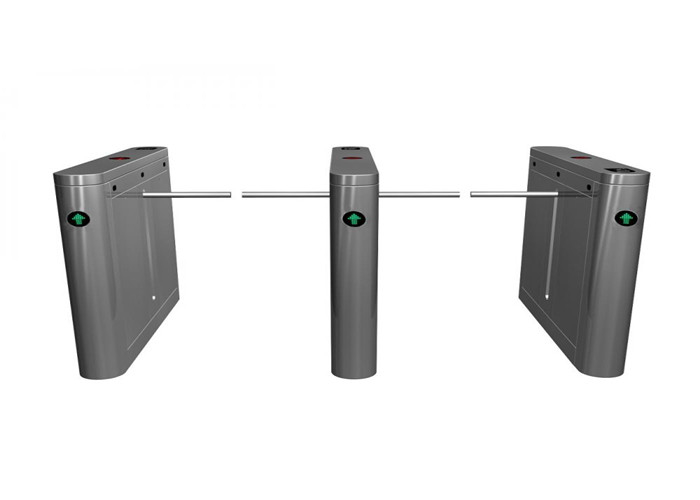

High Tech Automatic Drop Arm Turnstile With Fault Detection / Alarm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz Arm Opening / Closing Time 1S
Waranty 1 Year Direction Can Be Set As Single Or Double
Drive Motor DC 24V Package Wooden Box
High Light

security turnstile gate

,

turnstile barrier gate

,

24V DC automatic arm drop turnstile

Leave a Message
Product Description

24V DC brushless motor dual lanes automatic arm drop turnstile for handicapped passage



Introduction of Arm drop Turnstile:



Automatic arm drop turnstile is a kind of high-tech product used for the intelligent management for the pedestrian access control.It is the upgraded product of Tripod Turnstile and Flap Barrier. Similar to Flap Barrier, it is of fine processing,complete function and high grade.



Applications of Arm drop Turnstile:



Sinomatic drop arm turnstile gate is mainly applied in the metro station, wharf, subway station, bus station, factories, office building , hotel, clubs, school, library, supermarket and institution that need intelligent access management.



Features of Arm drop Turnstile:

  • Fault detection and alarm functions, easy to use and maintenance.
  • The running status can be programmed and controlled with the built-in keyboard on the main board.
  • Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again later.
  • Anti-breakthrough function. The gate is locked automatically until opening signal received.
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • Gate can be set as normally open or normally closed.
  • Can be used with variety of access control devices: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
  • Direction can be set as single-direction or bi-direction.
  • Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
  • Alarm function, in case of illegal intrusion and reverse intrusion, etc.



Specifications of Arm drop Turnstile:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Cases of Arm drop Turnstile:



High Tech Automatic Drop Arm Turnstile With Fault Detection / Alarm 0
