Automatic Security Electronic Turnstiles Speed Gate Turnstile With Mirron Finished

  • Automatic Security Electronic Turnstiles Speed Gate Turnstile With Mirron Finished
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Arm Material Stainless Steel Arm Opening / Closing Time 1S
Waranty 1 Year Direction Can Be Set As Single Or Double
Normal Life 5 Million Times Package Wooden Box
High Light

security turnstile gate

,

turnstile barrier gate

,

mirron finished arm drop turnstile
Leave a Message
Product Description

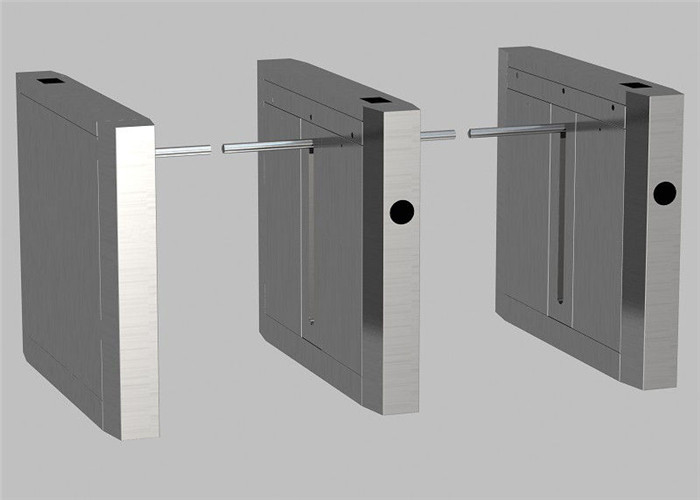

Mirron finish 1.2mm thickness stainless steel wide passage arm drop turnstile with LED light indicator



Introduction of Arm drop Turnstile:

1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.

2. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc



Applications of Arm drop Turnstile:



Sinomatic drop arm turnstile gate can be widely used in the metro station, wharf, subway station, bus station, factories, office building , hotel, clubs, school, library, supermarket and institution that need intelligent access management.



Features of Arm drop Turnstile:

  • Fault detection and alarm functions, easy to use and maintenance.
  • The running status can be programmed and controlled with the built-in keyboard on the main board.
  • Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again later.
  • Anti-breakthrough function. The gate is locked automatically until opening signal received.
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • Gate can be set as normally open or normally closed.
  • Can be used with variety of access control devices: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
  • Direction can be set as single-direction or bi-direction.
  • Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
  • Alarm function, in case of illegal intrusion and reverse intrusion, etc.



Specifications of Arm drop Turnstile:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Cases of Arm drop Turnstile:



Automatic Security Electronic Turnstiles Speed Gate Turnstile With Mirron Finished 0



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
