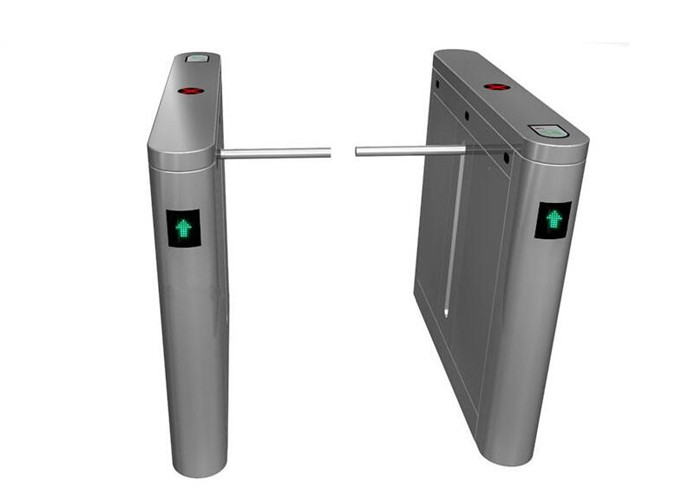

Metro / Subway SS Drop Arm Turnstile Access Control With Infrared Photocell

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 3,000pcs per month
Product Details
Application Indoor/ Outdoor With Tent Arm Opening / Closing Time 1S
Max Flow Rate 25 To 30 Person Per Minute Battery Yes
Surface Treatment Wire Drawing Normal Life 5 Million Times
High Light

security turnstile gate

,

turnstile barrier gate

Leave a Message
Product Description

Wire drawing 1.5mm thickness stainless steel bridge type arm drop turnstile with infrared photocell



Introduction of Drop Arm Turnstile:



1. If power off, arm will fall automatically while power on later, arm will be automatically lift.

2.  It is with standard electrical interface to connect various kinds of readers and writers for easy integration.

3. Card Mounting is available.



Applications of Drop Arm Turnstile:



Sinomatic drop arm turnstile gate can be widely used in the metro station, wharf, subway station, bus station, factories, office building , hotel, clubs, school, library, supermarket and institution that need intelligent access management.



Features of Drop Arm Turnstile:

  • Fault detection and alarm functions, easy to use and maintenance.
  • The running status can be programmed and controlled with the built-in keyboard on the main board.
  • Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again later.
  • Anti-breakthrough function. The gate is locked automatically until opening signal received.
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • Gate can be set as normally open or normally closed.
  • Can be used with variety of access control devices: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
  • Direction can be set as single-direction or bi-direction.
  • Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
  • Alarm function, in case of illegal intrusion and reverse intrusion, etc.



Specifications of Drop Arm Turnstile:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Cases of Drop Arm Turnstile:



Metro / Subway SS Drop Arm Turnstile Access Control With Infrared Photocell 0
