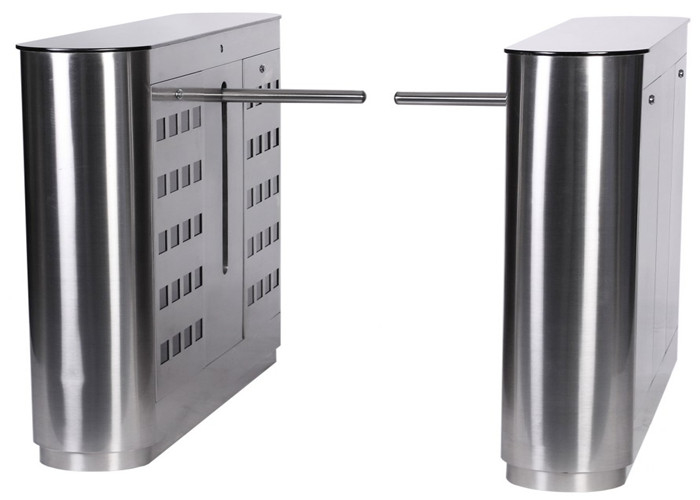

304 Stainless Steel Mechanical Antipinch Auto Drop Arm Turnstile
  • 304 Stainless Steel Mechanical Antipinch Auto Drop Arm Turnstile
  • 304 Stainless Steel Mechanical Antipinch Auto Drop Arm Turnstile

304 Stainless Steel Mechanical Antipinch Auto Drop Arm Turnstile

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB03
Product Details
Material Of Case:
304 Or 316 Stainless Steel
Thickness Of Housing:
1.2mm Or 1.5mm
Indoor/outdoor With Tent
Arm Length:
500mm To 800mm
1 Year
Max Flow Rate:
25 To 30 Person Per Minute
Single Or Bi-direction
Motor Voltage:
DC 24V (brush Motor)
High Light:

security turnstile gate


turnstile barrier gate


Antipinch Auto Drop Arm Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

Crowd Control System 304 Stainless Steel Automatic Drop Arm Turnstile with Infrared Photocell


Introduction of Drop Arm Turnstile:


The drop arm turnstile is designed to meet the spirit and the letter of the ADA regulations and the regulations of other nations. The Drop Arm Turnstile has one long passage barring arm or two mid-length arms. It has an array of cabinet mounted sensors and emitters. The sensor array provides a reasonably effective deterrent against multiple entries. One drop arm turnstiles can be installed in a bank or as the accessible entry/exit in a bank of turnstiles to allow ease of passage of those with physical challenges, strollers and delivery persons with carts. The Drop Arm Turnstile is available in a wide variety of cabinet shapes and materials.


Applications of Drop Arm Turnstile:


Drop arm turnstile is suitable for indoor or outdoor with tent. They are optimized economical solution for railway station, bus station, factory, colleges, commercial building, library, stadium, hotel, airport, and etc.


Features of Drop Arm Turnstile:


  • Fault detection and alarm functions, easy to use and maintenance.
  • The running status can be programmed and controlled with the built-in keyboard on the main board.
  • Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again later.
  • Anti-breakthrough function. The gate is locked automatically until opening signal received.
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • Gate can be set as normally open or normally closed.
  • Can be used with variety of access control devices: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).
  • Direction can be set as single-direction or bi-direction.
  • Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
  • Alarm function, in case of illegal intrusion and reverse intrusion, etc.


Specifications of Drop Arm Turnstile:




Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time


Reset time when power on


Working temperature



Cases of Drop Arm Turnstile:


304 Stainless Steel Mechanical Antipinch Auto Drop Arm Turnstile 0304 Stainless Steel Mechanical Antipinch Auto Drop Arm Turnstile 1
