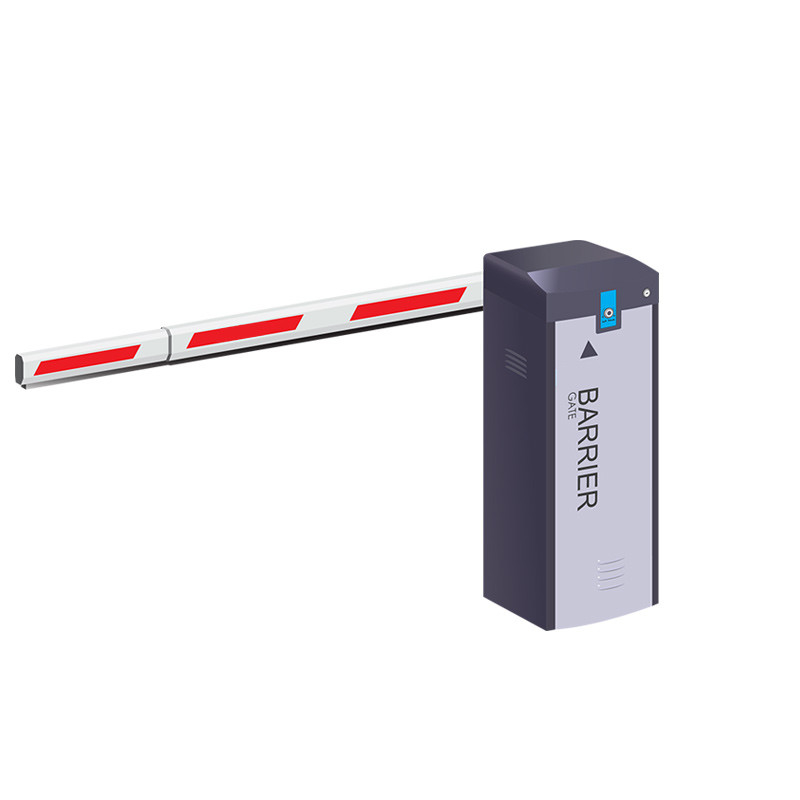

IP54 Telescopic Arm Automatic Barrier Gate for High and Medium Traffic
  • IP54 Telescopic Arm Automatic Barrier Gate for High and Medium Traffic
  • IP54 Telescopic Arm Automatic Barrier Gate for High and Medium Traffic
  • IP54 Telescopic Arm Automatic Barrier Gate for High and Medium Traffic
IP54 Telescopic Arm Automatic Barrier Gate for High and Medium Traffic

IP54 Telescopic Arm Automatic Barrier Gate for High and Medium Traffic

Place of Origin Shenzhen China
Brand Name SINOMATIC
Certification CE, ISO
Model Number BG-124
Product Details
Features:
Anti-crash, Anti-corrosion, Anti-freezing
Standard Package:
Carton Package
Arm Length:
Max 6m
Continuously Of Operation:
100%
Ip Rate:
IP54
Remote Control Distance:
30 To 100 Meters
Communication Interface:
RS485
Length Of Arm:
1m-6m
Life Span:
5 Million Times
Car Parking:
Vehicle Control Barriers Gate
Motor Voltage:
AC100V~240V
Keywords:
Automatic Barrier Gate Price
Highlight:

High Traffic Automatic Barrier Gate

,

IP54 Automatic Barrier Gate

,

Medium Traffic Automatic Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
1
Price
US$280~US$330
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5~10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Credit card
Supply Ability
1,000 pcs per month
Product Description
IP54 Telescopic Arm Automatic Barrier Gate for High and Medium Traffic
Straight arm barrier gates are designed for entrance installations with access control readers to restrict unauthorized vehicle access. These gates support maximum 6-meter telescopic arms (with optional swing-out function) and feature adjustable opening/closing speeds of 1.8s, 3s, and 6s to accommodate various usage requirements.
90-degree folding arm barrier gates (180-degree optional) are ideal for basement entrances with ticketing or access control systems. The 90˚ folding arm design accommodates low ceiling heights in basement environments. These gates feature 3-second opening/closing speeds and represent the most affordable folding arm solution for medium traffic applications.
Fencing arm barrier gates provide comprehensive security by restricting unauthorized access for both vehicles and pedestrians. With 6-second opening/closing speeds, these gates are optimized for high-security applications rather than high-traffic usage. The fencing design prevents pedestrian access underneath the arm.
Enhanced Guardhouse Aesthetics
The modern grey design concept elevates the premium appearance and prestigious impression of guardhouse barrier entrances.
Technology Highlights
IP54 Telescopic Arm Automatic Barrier Gate for High and Medium Traffic 0
Cost-Effective Arm Replacement
Our telescopic arm design addresses the common problem of arm damage from vehicle impacts. Standard 4-meter arms are often too long for transport in regular vehicles and may violate road regulations. Our retractable telescopic arms can be shortened to fit in standard cars or vans, eliminating the need for expensive truck rentals and simplifying replacement logistics.
Technical Specifications
Model DZ-124
Working Temperature -35℃ to +85℃
Power Supply AC100V-240V, 50/60 Hz
Open/Close Speed 1.8s, 3s, 6s
Rated Power 85W
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP54
Max Boom Length 6m
Main Functions and Features
  • Manual release capability
  • Machine core with compression spring for enhanced safety against spring breakage accidents
  • Die-casting aluminum alloy motor for precision and superior thermal radiation
  • Integrated motor cooling fan to prevent heat protection issues
  • Dual safety limit switches (photoelectric limit switch and motor memory sensor)
  • Automatic reversing upon obstacle detection
  • Auto-closing functionality
  • Optional infrared photocell for anti-bumping protection
  • Support for external and internal vehicle loop detectors (optional)
  • Traffic light interface compatibility
  • Wire control (switch signal) and remote control (418MHz)
  • Optional RS485 communication module
