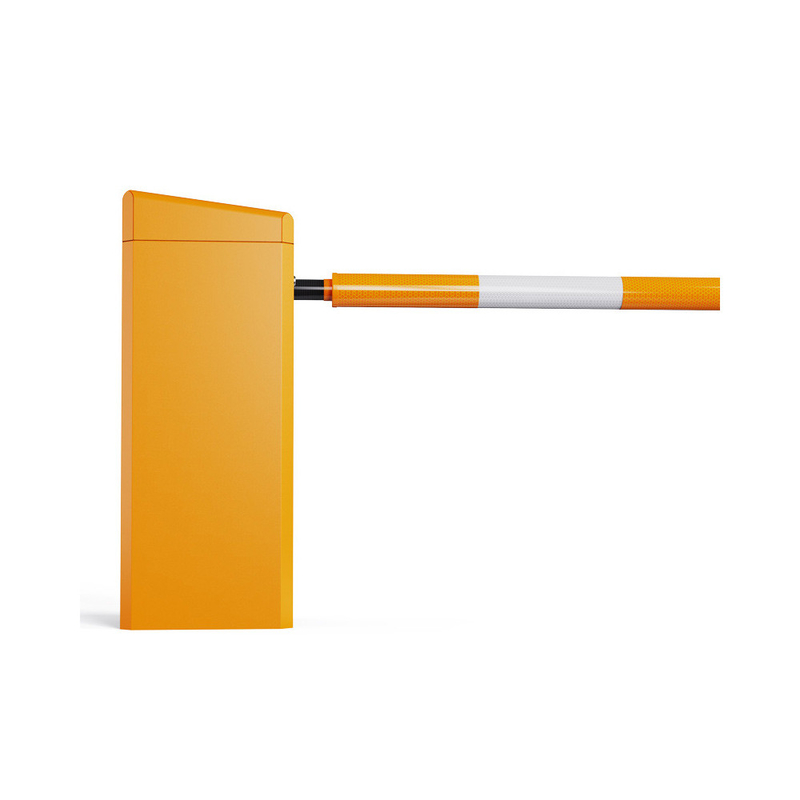

High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechnism
  • High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechnism
  • High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechnism
  • High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechnism
High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechnism

High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechnism

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number DZ-138B
Product Details
Highlight:

Non-spring Mechnism Highway Barrier Gate

,

3rd Servo Motor Highway Barrier Gate

,

High Speed Highway Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Wechat, Credit card
Supply Ability
1,000 pcs per month
Product Description
High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechanism
Product Description
The DZ-138B barrier gate is designed for high-performance access control applications including expressway toll stations, bus stations, shopping malls, airports, hospitals, and similar facilities. This third-generation servo motor system incorporates international leading technology with integrated design and mold manufacturing, featuring compact structure, high precision, and standardized components. The planetary reducer transmission ensures high efficiency, long service life, no oil leakage, no blockage, and low noise operation.
Technical Specifications
Product Dimensions 292×368×9450mm
Operating Temperature -35℃ to +65℃
Power Supply AC 100V-240V
Operating Speed 0.2s-8s
Rated Power 750W
Drive Method Servo Motor
Humidity ≤90%
Remote Control Distance ≤100m (open & sunny conditions)
Protection Class IP54
Motor No-load Speed 5000r/min
Compatible Boom Length 1.5m-2m; 3m
Advanced Functions & Features
  • Adjustable operation speed
  • Configurable slow up and slow down settings
  • Adjustable limit angle
  • Quick left/right direction interchange
  • Manual operation capability during power failure
  • 418 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input
  • Loop detector and radar I/O signal anti-collision input
  • Up, down, and stop I/O signal input
  • Vehicle counting (fleet) functionality
  • LED light I/O signal output
  • Traffic light I/O signal output
  • Position signaling (up/down, normally open/closed)
  • RS485 communication output
  • Delayed arm drop function
  • Automatic arm reverse function
  • Automatic lifting during power failure (requires power storage module)
  • I/O port single-key cycle up/down operation
  • Loop detector normally open/closed functionality
  • Anti-toll evasion with single vehicle per signal
  • Anti-collision alarm (requires additional alarm and sensor)
  • Fire linkage signal input
  • I/O port close signal input
  • 24V storage battery input capability
High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechnism 0 High Speed 3rd Servo Motor Highway Barrier Gate With Non-spring Mechnism 1
Electrical Installation & Wiring Instructions
  1. Internal wiring is factory-completed. Do not modify connections. Simply connect 220V (110V in some countries) power supply and protective ground wire for operation.
  2. Traffic light interface: Supports 24V voltage traffic light systems.
  3. Infrared anti-collision interface: Compatible with external infrared anti-radiation devices and switch signal outputs.
  4. Ground sense (loop detector) interface: Supports external ground sensors. Connect only the switch signal output from the ground sensor.
  5. Parking system interface: Connect switch signals from the control system.
