AC Servo Motor 0.2s High Speed Barrier Gate With Carbon Fiber Arm Long-Lasting
  • AC Servo Motor 0.2s High Speed Barrier Gate With Carbon Fiber Arm Long-Lasting
  • AC Servo Motor 0.2s High Speed Barrier Gate With Carbon Fiber Arm Long-Lasting
  • AC Servo Motor 0.2s High Speed Barrier Gate With Carbon Fiber Arm Long-Lasting
AC Servo Motor 0.2s High Speed Barrier Gate With Carbon Fiber Arm Long-Lasting

AC Servo Motor 0.2s High Speed Barrier Gate With Carbon Fiber Arm Long-Lasting

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number DZ-138B
Product Details
Barrier Arm Length:
6m Straight Arm
Rated Power:
750W
Operating Life:
>5 Million
Com Interface:
RS485
Feature:
Durable
Life Cycle:
More Than 5 Million Times
Housing Material:
2.0mm Cold Roller Steel Plate
Opeartion Time:
0.2s~8s
Continuously Of Operation:
100%
Ip Degree:
IP54
Fence Length:
3m To 4m
Highlight:

Carbon Fiber Arm Barrier Gate

,

0.2s High Speed Barrier Gate

,

AC Servo Motor Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Wechat, Credit card
Supply Ability
10,00 pcs per month
Product Description

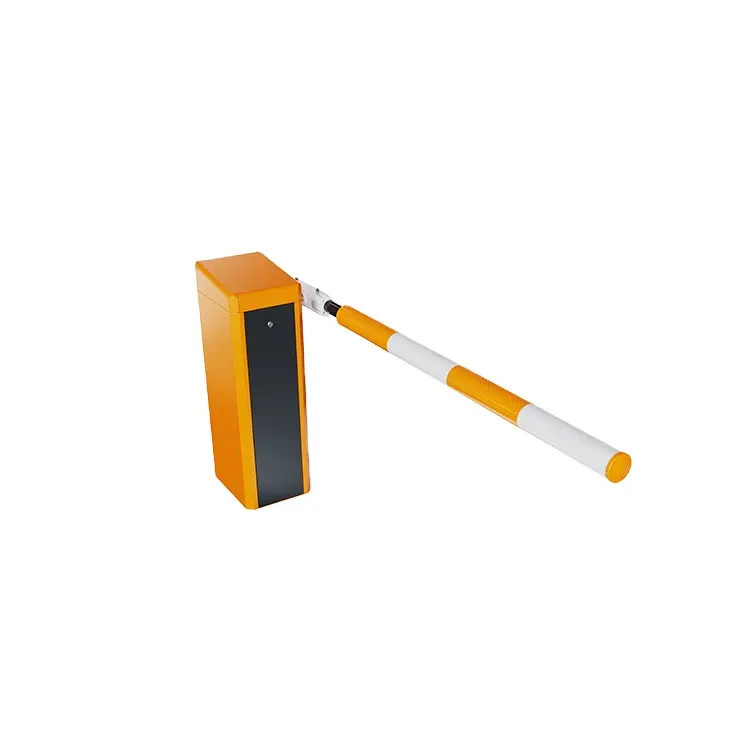

AC Servo Motor 0.2s High Speed Barrier Gate With Carbon Fiber Arm Long-Lasting
Product Overview
The DZ-138B barrier gate system is engineered for high-performance access control applications. Designed for expressway toll stations, bus stations, shopping malls, airports, hospitals, and similar facilities, this system incorporates third-generation servo motor technology with international leading integrated design and mold manufacturing.
Key Features & Functions
  • Adjustable operation speed with customizable acceleration/deceleration
  • Flexible limit angle adjustment capabilities
  • Quick left-right direction interchange
  • Manual barrier arm operation during power failure
  • 418 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input
  • Loop detector and radar I/O signal anti-collision input
  • Up, down, and stop I/O signal input functionality
  • Advanced counting (fleet) management
  • LED light and traffic light I/O signal output
  • Position sensing with normally open/closed signal output
  • RS485 communication interface
  • Programmable delay arm drop and auto-reverse functions
  • Automatic lifting during power outages (with optional power storage)
  • Single-key cycle operation via I/O port
  • Loop detector normally open/closed functionality
  • Anti-toll evasion with single vehicle passage detection
  • Anti-collision alarm system (requires additional components)
  • Fire linkage signal input capability
  • I/O port signal closure input
  • 24V storage battery input support
AC Servo Motor 0.2s High Speed Barrier Gate With Carbon Fiber Arm Long-Lasting 0
Technical Specifications
Parameter Specification
Product Dimensions 292×368×9450 mm
Operating Temperature -35℃ to +65℃
Power Supply AC 100V-240V
Running Speed 0.2s to 8s
Rated Power 750W
Drive Method Servo Motor
Humidity Tolerance ≤90%
Remote Control Distance ≤100 m (open & sunny conditions)
Protection Class IP54
Motor No-Load Speed 5000 rpm
Compatible Boom Length 1.5m-2m; 3m
