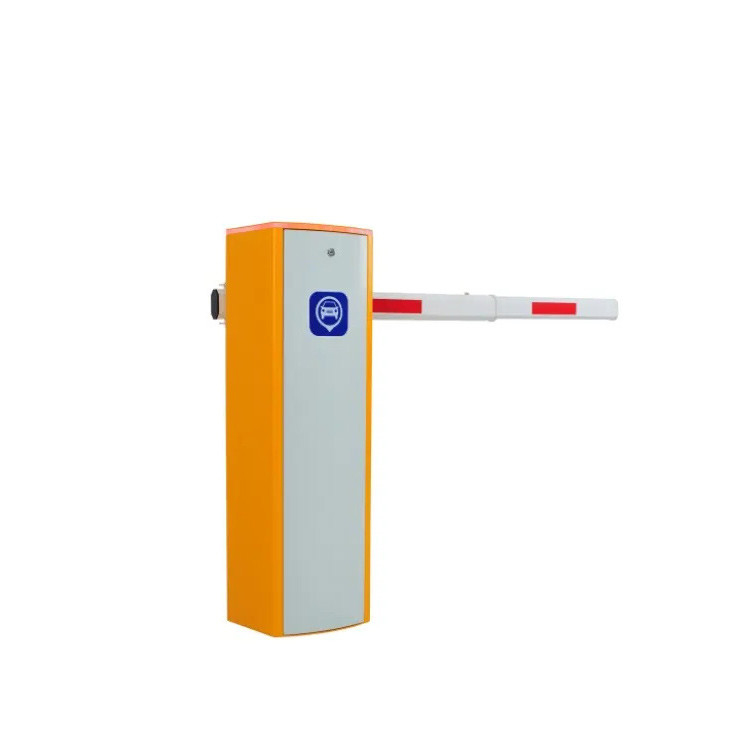

Advanced Mechatronics Design Automatic Barrier Gate with Compact Structure and Easy Maintenance
  • Advanced Mechatronics Design Automatic Barrier Gate with Compact Structure and Easy Maintenance
  • Advanced Mechatronics Design Automatic Barrier Gate with Compact Structure and Easy Maintenance
  • Advanced Mechatronics Design Automatic Barrier Gate with Compact Structure and Easy Maintenance
Advanced Mechatronics Design Automatic Barrier Gate with Compact Structure and Easy Maintenance

Advanced Mechatronics Design Automatic Barrier Gate with Compact Structure and Easy Maintenance

Place of Origin Shenzhen，China
Brand Name SINOMATIC
Certification CE, ISO, UL
Model Number DZ-21521
Product Details
Highlight:

Easy Maintenance Automatic Barrier Gate

,

Compact Structure Automatic Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
10 PCS
Price
US$280~US$330
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5~10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Paypal, Credict card
Supply Ability
3,000 pcs per month
Product Description
Advanced Mechatronics Design Automatic Barrier Gate
Compact structure barrier gate with easy maintenance and advanced mechatronics design for reliable access control solutions.
Product Advantages
  • Advanced mechatronics side-mounted design: Compact structure, quick assembly, easy maintenance
  • Precision molding production: High accuracy, fast efficiency, guaranteed quality
  • Worm-gear secondary variable speed transmission: High precision, long lifetime, manual operation during power outages, no blocking, no oil leakage, large torque, low noise, operates at -35°C
  • DC brushless motor design: Low consumption, high efficiency, no overheating, wide speed adjustment
  • Hall limit technology: Automatic limit detection without debugging, continuous motor speed monitoring for stable operation
  • Curved triple connecting rod structure: Ensures arm positioning in vertical and horizontal positions, easy balance adjustment, prevents violent arm lifting
  • Quick arm direction interchange: Adaptable to different construction site directions, reduces inventory requirements
  • Advanced DC brushless controller: Integrated chip drive, fast processing, large memory, 24V low voltage power supply, global voltage compatibility
Technical Specifications
Product Name BLDC Barrier Gate BLDC Barrier Gate
Model DZ-21521 DZ-2212
Cabinet Size 350*240*1010(mm) 350*240*1010(mm)
Working Temperature -35℃~+65℃ -35℃~+65℃
Power Supply AC110V/220V; DC24V AC110V/220V; DC24V
Open/Close Speed 1.2s-3s (Adjustable) 2.5s-6s (Adjustable)
Rated Power 150W 150W
Driving Method DC Brushless Motor DC Brushless Motor
Humidity ≤90% ≤90%
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Protection Grade IP54 IP54
Motor No-load Speed 1850r/min 1850r/min
Max Boom Length 3m-4.5m 3m-6m
Main Functions and Features
  • Adjustable operation speed
  • Adjustable slow up and slow down
  • Adjustable limit angle
  • Quick left and right direction interchange
  • Manual barrier arm operation during power failure
  • 418 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input
  • Loop detector and radar I/O signal anti-collision input
  • Up, down and stop I/O signal input
  • Counting (fleet) function
  • LED light I/O signal output
  • Traffic light I/O signal output
  • Up and down in place, normally open and closed signal output
  • RS485 communication output
  • Delay arm drop function
  • Arm auto-reverse function
  • Automatic lifting when power is off (requires power storage module)
  • I/O port single-key cycle up and down function
  • Loop detector normally open and closed function
  • One car per signal anti-toll evasion function
  • Anti-collision alarm function (requires additional alarm and sensor)
  • Fire linkage signal input
  • I/O port closes signal input
  • 24V storage battery input
Advanced Mechatronics Design Automatic Barrier Gate with Compact Structure and Easy Maintenance 0
Precautions
  • Follow correct wiring methods to prevent motor failure or burnout
  • Avoid motor overload and prolonged locking to prevent excessive temperature rise
  • Do not disassemble assembled gear reducer to avoid contamination or gear misalignment
  • When connecting output shaft to load, avoid impact or heavy pressure to prevent internal damage
  • Do not pull motor lead wires forcefully to prevent electric shock hazards
  • Avoid contact with rotating parts during operation; ensure proper motor casing grounding
