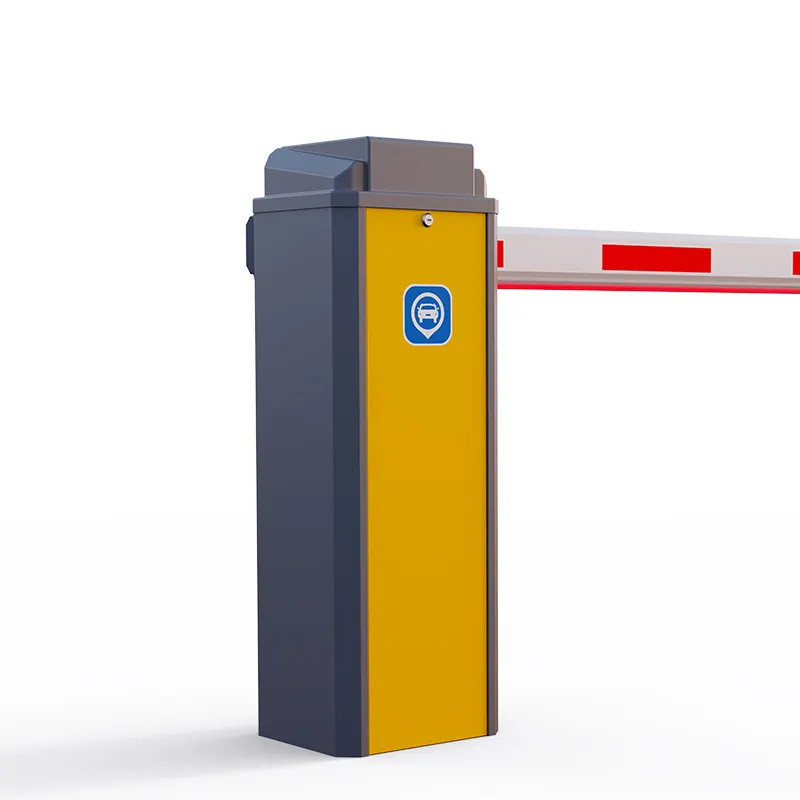

Automatic Parking Barrier Gate with CE Certificate and Remote Control Boom Barrier
  • Automatic Parking Barrier Gate with CE Certificate and Remote Control Boom Barrier
  • Automatic Parking Barrier Gate with CE Certificate and Remote Control Boom Barrier
  • Automatic Parking Barrier Gate with CE Certificate and Remote Control Boom Barrier
Automatic Parking Barrier Gate with CE Certificate and Remote Control Boom Barrier

Automatic Parking Barrier Gate with CE Certificate and Remote Control Boom Barrier

Place of Origin Shenzhen，China
Brand Name SINOMATIC
Certification CE, ISO, UL
Model Number DZ-2129
Product Details
Highlight:

Parking Boom Barrier Gate

,

CE Automatic Parking Barrier Gate

,

Automatic Parking Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
10 PCS
Price
US$300~US$350
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5~8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Paypal, Credict card
Supply Ability
3,000 pcs per month
Product Description
Automatic Parking Barrier Gate with CE Certificate and Remote Control
Product Overview
The SINOMATIC 4th generation brushless motor barrier gate incorporates advanced mold design technology, precision die-casting manufacturing, and brushless control speed regulation. Features include quickly interchangeable left/right arms, clutch-free design for ease of use, two-stage worm gear drive with curved crank three-link structure for fast and stable operation, plus easy maintenance and long service life.
Technical Specifications
Specification Standard Model Extended Model
Model DZ-2129 DZ-2129
Cabinet Size 340×300×1047(mm) 340×300×1047(mm)
Working Temperature -35℃ to +65℃ -35℃ to +65℃
Power Supply AC110V/220V; DC24V AC110V/220V; DC24V
Open/Close Speed 1.2s-3s (Adjustable) 2.5s-6s (Adjustable)
Rated Power 160W 160W
Driving Method DC Brushless Motor DC Brushless Motor
Humidity ≤90% ≤90%
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Protection Grade IP54 IP54
Motor No-load Speed 1850r/min 1850r/min
Max Boom Length 3m-4.5m 6m-8m
Product Advantages
  • Advanced mechatronics side-mounted design: Compact structure, quick assembly, easy maintenance
  • Precision molding production: High accuracy, efficient manufacturing, guaranteed quality
  • Worm-gear secondary variable speed transmission: High precision, long lifetime, manual operation during power failure
  • DC brushless motor design: Low consumption, high efficiency, no overheating, wide speed adjustment
  • Hall limit detection: Automatic limit detection without debugging, stable speed monitoring
  • Curved triple connecting rod structure: Easy arm balance adjustment, prevents violent lifting
  • Quick arm direction interchange: Adaptable to different site requirements
  • Advanced DC brushless controller: Integrated chip drive, global voltage compatibility, safe operation
Main Functions & Features
  • Adjustable operation speed and slow up/down settings
  • Adjustable limit angle and quick left/right direction interchange
  • Manual operation capability during power failure
  • 418 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input
  • Loop detector and radar anti-collision signal input
  • Counting (fleet) function and traffic light control
  • RS485 communication and delay arm drop functions
  • Auto-reverse and automatic lifting capabilities
  • Fire linkage and anti-toll evasion functions
  • 24V storage battery input compatibility
Mechanism Details
Automatic Parking Barrier Gate with CE Certificate and Remote Control Boom Barrier 0
Service & Support
Service Coverage:
• One year free servicing (arm excluded)
• Lifetime charged servicing available
• Technical support provided
Charged Servicing Conditions:
• Damage from improper installation
• Damage from incorrect voltage
• Surface damage from misuse
• Natural disaster damage
• Overdue servicing
• Services outside promised scope
