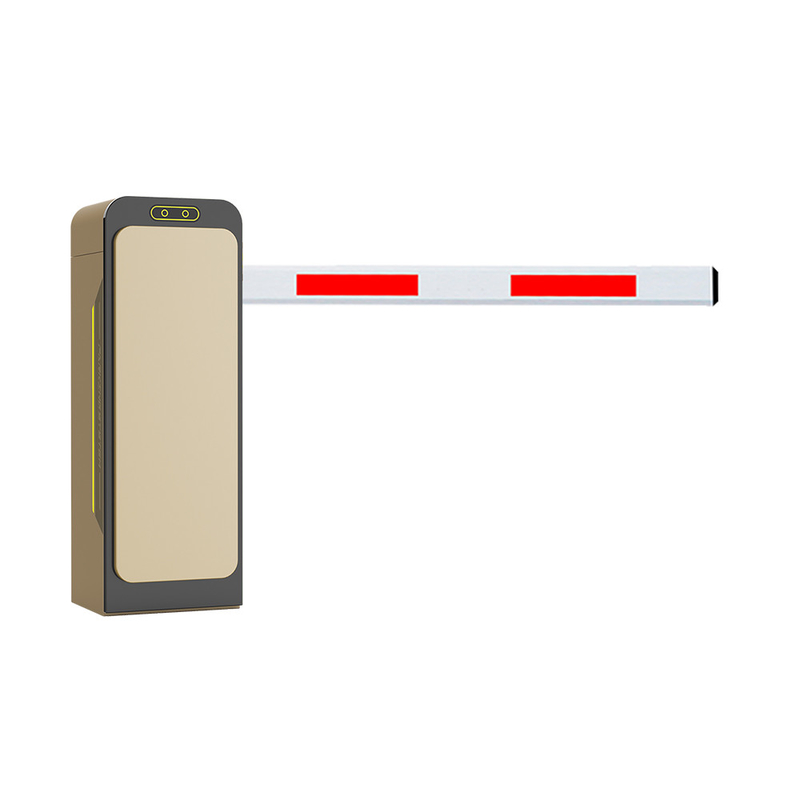

Industrial-Duty Boom Barrier Gate Integrated Gearbox Installation With Battery Backup

DESCRIPTION

This product adopts an integrated gearbox installation, with a built-in fixed pressure plate, which is easy to install and move; It use 4 link transmission structure, bipolar reduction motor, high transmission efficiency, smooth operation; Equipped with a rebound function when encountering obstacles, effectively preventing falling booms from smashing the car; The standard barrier gate boom uses sandblasting and oxidation treatment technology, which will never fade.

TECHNICAL PARAMETER

*Housing dimension: 985*340*280mm

*Output Power : 140W~200W

*Total length : < 6m (include housing)

*Boom useful length: ≤ 5.66m

*Operation Speed : 2.5s~6s adjustable; Optional 0.3S/0.6S/1.2S

*Lifespan: more 8,000,000 cycles

*Operating voltage : DC24V

*Housing color: shiny silver/luxury gold/ sand gray

*Accessories Included: Remote Control, Key, M10X70 Screws, 12X150 Expansion Screws

*Operating Temperature : -30℃-60℃

MAIN FUNCTION AND FEATURES

1. The appearance of the housing is round, fashionable, noble and atmospheric;

2. Decorate the housing with LED light to enhance the product's fashion sense;

3. Installation of integrated gearbox, four-bar linkage transmission structure, bipolar reduction motor, high transmission efficiency, and smooth operation;

4. 24V DC brushless control, precise control, smooth operation;

5. Multiple control methods are available, with the option to manually control the raising and lowering of the barrier gate using external control buttons, or remote control device;

6. Support the ground sensing(loop detector) anti smashing function, which automatically lowers the pole after the car is driven, and the falling pole is automatically lifted by the car, so that the gate has the function of automatically closing the gate and preventing the car from smashing;

7. Priority opening function: In case of emergency during the descent of the gate, as long as the gate receives the opening signal, the gate will immediately perform the opening action;

8. The barrier gate can be used for multiple purposes and can be equipped with various boom types such as telescopic, curved and fence booms.
