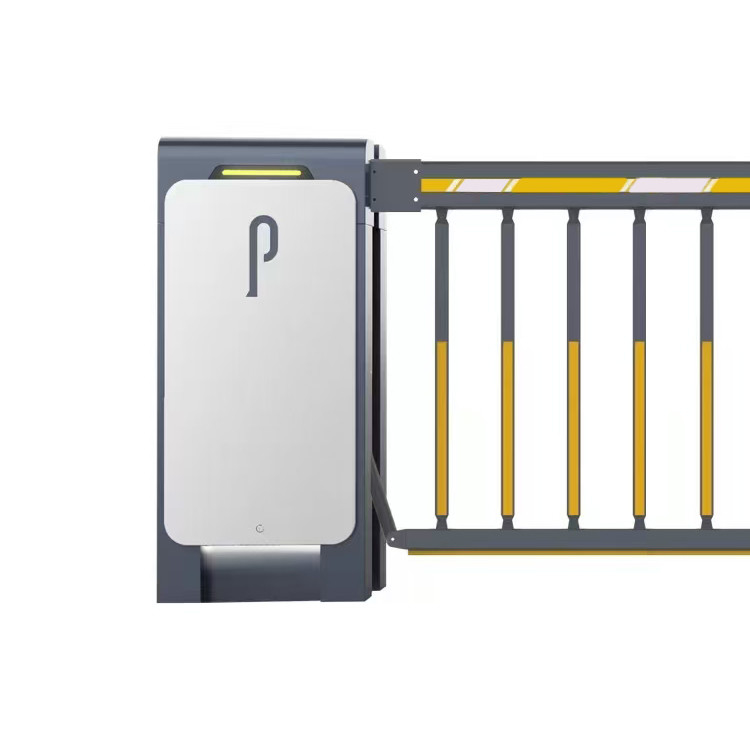

Driveway Entrance Automatic Main Front Gate Security Robust Sturdy Traffic Arm Barrier gate
  • Driveway Entrance Automatic Main Front Gate Security Robust Sturdy Traffic Arm Barrier gate
  • Driveway Entrance Automatic Main Front Gate Security Robust Sturdy Traffic Arm Barrier gate
  • Driveway Entrance Automatic Main Front Gate Security Robust Sturdy Traffic Arm Barrier gate
Driveway Entrance Automatic Main Front Gate Security Robust Sturdy Traffic Arm Barrier gate

Driveway Entrance Automatic Main Front Gate Security Robust Sturdy Traffic Arm Barrier gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number BG-KZ101
Product Details
Boom Useful Length:
≤ 5.35m
Opening/Closing Time:
4s~9s
Protection Grade:
IP54
Working Temperature:
-30℃~+60℃
Housing Color:
Sand Black And Shiny Silver
Housing Dimension:
650*655*1650mm
Highlight:

Robust Traffic Arm Barrier gate

,

Sturdy Traffic Arm Barrier gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000 pcs per month
Product Description
Driveway Entrance Automatic Main Front Gate Security Barrier
This robust and sturdy traffic arm barrier gate provides comprehensive vehicle access management for residential areas, commercial properties, and institutional facilities. The heavy-duty design features a fence boom and universal installation without left/right direction distinction.
Product Overview
The barrier gate system comprises four main components: Housing, transmission mechanism, control unit, and boom. Engineered for reliable performance in demanding access control applications.
Key Features & Functions
  • Safety First: 24V DC power supply ensures maximum personal safety
  • Speed Control: Independent adjustment of boom lifting and lowering speeds
  • Stable Operation: DC brushless motor provides high torque output with compact size and smooth deceleration buffering
  • Quiet Performance: Operating noise below 50dB for minimal disturbance
  • Premium Materials: Die-cast aluminum alloy housing with excellent mechanical strength, precise dimensions, and optimal heat dissipation
  • Comprehensive Protection: Motor overcurrent, overload, short circuit, and reverse polarity protection
  • Remote Control: External remote control input support
  • Status Indicators: Dry contact outputs for position status with external light strip control
  • Communication: RS232/RS485 serial communication compatibility
  • Smart Functions: Opening counting and automatic closing for unmanned operation
  • Safety Features: High-sensitivity anti-crushing and rebound protection
Technical Specifications
Parameter Specification
Housing Dimension 650×655×1650mm
Housing Color Sand Black and Shiny Silver
Motor Type BLDC Motor
Motor Power 200W
Total Length 6m (including housing)
Boom Useful Length ≤ 5.35m
Opening/Closing Time 4s~9s
Working Voltage DC24V
Working Temperature -30℃~+60℃
Insulation Level F
Protection Grade IP54
Application Reference
Driveway Entrance Automatic Main Front Gate Security Robust Sturdy Traffic Arm Barrier gate 0
Operating Environment
Power Supply: DC 24V ± 10%
Rated/Peak Current: 8A/30A
Motor Power: 200W
Standby Power: <2W
Running Time: 4S-9S
Operating Temperature: -40℃ to +60℃ (heating device required below -20℃)
Operating Humidity: 90% (non-condensing)
Insulation Level: F
Protection Level: IP54
