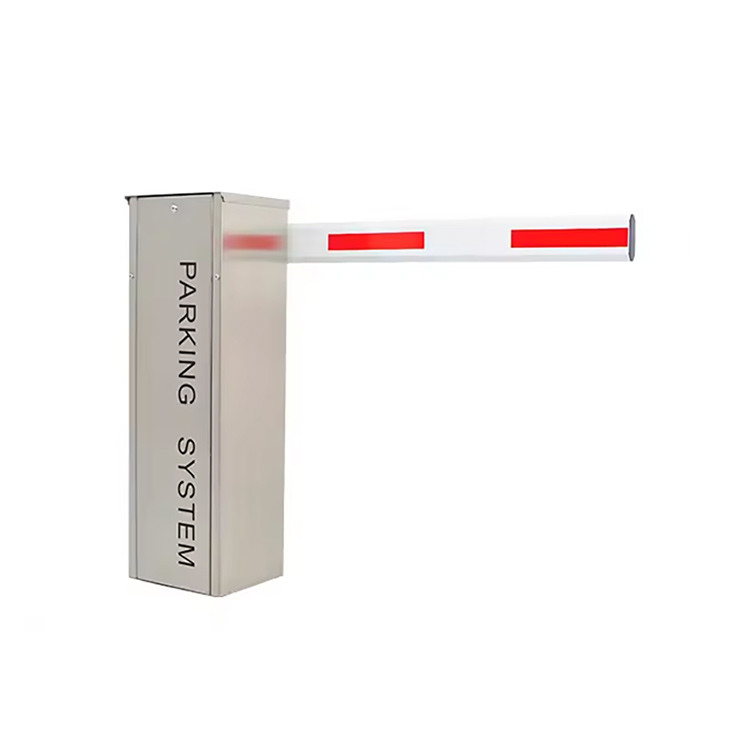

High Speed Seaside Traffic Barrier 304 Stainless Steel Cabinet Anti-rust Waterproof
  • High Speed Seaside Traffic Barrier 304 Stainless Steel Cabinet Anti-rust Waterproof
  • High Speed Seaside Traffic Barrier 304 Stainless Steel Cabinet Anti-rust Waterproof
  • High Speed Seaside Traffic Barrier 304 Stainless Steel Cabinet Anti-rust Waterproof
High Speed Seaside Traffic Barrier 304 Stainless Steel Cabinet Anti-rust Waterproof

High Speed Seaside Traffic Barrier 304 Stainless Steel Cabinet Anti-rust Waterproof

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number DZ-290
Product Details
Protection Grade:
IP54
Boom Length:
2.5m~6m (Max 8 Meters)
Color:
Silvery White
Driving Method:
Servo Motor
Working Temperature:
-35℃~+65℃
Remote Control Distance:
≤100m(open,sunny Weather)
Highlight:

Anti-rust Traffic Barrier

,

Waterproof Traffic Barrier gate

,

Seaside Traffic Barrier gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Credit card, Paypal, Alipay, Wechat
Supply Ability
3,000 pcs per month
Product Description
High Speed Seaside Traffic Barrier 304 Stainless Steel Cabinet
Anti-rust, waterproof barrier gate system designed for demanding coastal environments
Product Overview
This patented 304 Stainless Steel series servo motor barrier gate combines permanent-magnet synchronous servo motor (PMSM motor) with high quality aluminum alloy press forming housing and well-designed gear reducer. The motor features high power density, low noise, minimal vibration, high efficiency, and fast response for specialized drive applications. Compared with traditional asynchronous motors, this servo motor offers higher efficiency, improved power factor, lighter weight, lower temperature rise, and better power-saving capabilities, enhancing power grid quality factor and maximizing current power grid capacity while reducing power grid investment.
Technical Specifications
Specification Model A Model B
Cabinet Size 330*305*930(mm) 330*305*930(mm)
Working Temperature -35℃~+65℃ -35℃~+65℃
Power Supply AC110V/220V; DC24V AC110V/220V; DC24V
Open/Close Speed 0.9Sec-8Sec (Adjustable) 0.6Sec-3Sec (Adjustable)
Rated Power 200W 400W
Driving Method Servo motor Servo motor
Humidity ≤90% ≤90%
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Protection Grade IP54 IP54
Motor No-load Speed 3000r/min 3000r/min
Max Boom Length 3m-6m 2.5m
Advanced Functions
  • Adjustable operation speed
  • Adjustable slow up and slow down
  • Adjustable limit angle
  • Quick left and right direction interchange
  • Manual operation capability during power failure
  • 418 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input function
  • Loop detector and radar I/O signal anti-collision input
  • Up, down and stop I/O signal input function
  • Counting (fleet) function
  • LED light I/O signal output function
  • Traffic light I/O signal output function
  • Up and down in place, normally open and normally closed signal output
  • RS485 communication output function
  • Delay arm drop function
  • Arm auto-reverse function
  • Automatic lifting function when power is off (requires additional power storage module)
  • I/O port single-key cycle up and down function
  • Loop detector normally open and normally closed function
  • One car passes through each signal to prevent toll evasion
  • Anti-collision alarm function (requires additional alarm and sensor)
  • Fire linkage signal input function
  • I/O port closes the signal input function
  • 24V storage battery input function
Arm Direction Change Instructions
Servo motor can change arm direction LEFT or RIGHT through 6 process steps:
Step 1: Remove the original left side of the electronic control board bracket and install it to the right
Step 2: Remove the M8X20 hexagon socket screw that fixes the motor and lift out the motor
Step 3: Remove the fixing screw on the boom bracket
Step 4: Use M14X150 screws to pull out the boom bracket
Step 5: Install the extracted bracket from the original left to the right, or the original right to the left
Step 6: Install back to the case, fix M8X20 hexagon socket screws, and the left and right exchanges are completed (no need to adjust other settings)
