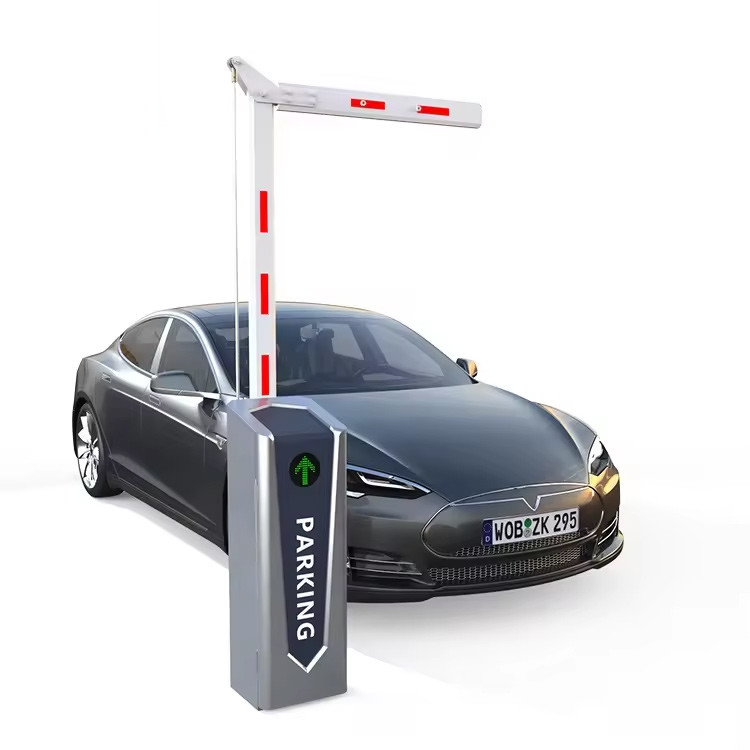

Digital Signal Processor Controlled Automatic Barrier Gate For Complex Algorithms
  • Digital Signal Processor Controlled Automatic Barrier Gate For Complex Algorithms
  • Digital Signal Processor Controlled Automatic Barrier Gate For Complex Algorithms
  • Digital Signal Processor Controlled Automatic Barrier Gate For Complex Algorithms
Digital Signal Processor Controlled Automatic Barrier Gate For Complex Algorithms

Digital Signal Processor Controlled Automatic Barrier Gate For Complex Algorithms

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number DZ-SF-2035
Product Details
Cabinet Size:
340*340*1047(mm)
Rated Power:
200W/400W
Boom Length:
2.5m~6m (Max 8 Meters)
Color:
Dark Grey/Brushed Metal
Boom Type:
Straight, Folding, Fencing, Round
Motor No-load Speed:
3000r/min
Highlight:

Digital Signal Processor Automatic Barrier Gate

,

Complex Algorithms Automatic Barrier Gate

,

Complex Algorithms Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Credit card, Paypal, Alipay, Wechat
Supply Ability
3,000 pcs per month
Product Description
Digital Signal Processor Controlled Automatic Barrier Gate
Product Overview
This second-generation servo motor gate features integrated design and mold manufacturing with international leading technology. The compact structure ensures high precision, consistency, and standardization. Utilizing planetary reducer transmission, it delivers high efficiency, long lifespan, no oil leakage, no blocking, and low noise operation.
The motor employs a 24V permanent magnet rare earth synchronous servo motor with small size, low power consumption, large torque, wide speed regulation, no heat generation, small penetration, and precise limit control. With a digital signal processor (DSP) as the control core, it enables complex algorithms, network connectivity, and intelligent operation. The integrated drive circuit (IPM) detects faults and displays fault codes for quick troubleshooting.
The three-bar linkage design ensures rapid rise and stable fall. Solar charging capability makes it suitable for unmanned applications including railway crossings, fire passages, oil stations, and mine tunnels without electricity requirements, enabling fully automatic operation control.
Key Functions & Features
  • Adjustable operation speed
  • Adjustable slow up and slow down
  • Adjustable limit angle
  • Quick left and right direction interchange
  • Manual barrier arm operation during power failure
  • 418 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input
  • Loop detector and radar I/O signal anti-collision input
  • Up, down and stop I/O signal input
  • Counting (fleet) function
  • LED light I/O signal output
  • Traffic light I/O signal output
  • Up and down in place, normally open and normally closed signal output
  • RS485 communication output
  • Delay arm drop function
  • Arm auto-reverse function
  • Automatic lifting during power failure (requires additional power storage module)
  • I/O port single-key cycle up and down function
  • Loop detector normally open and normally closed function
  • One car per signal anti-toll evasion function
  • Anti-collision alarm function (requires additional alarm and sensor)
  • Fire linkage signal input
  • I/O port close signal input
  • 24V storage battery input
Technical Specifications
Parameter Standard Model Enhanced Model
Cabinet Size 340×340×1047(mm) 340×340×1047(mm)
Working Temperature -35℃ to +65℃ -35℃ to +65℃
Power Supply AC110V/220V; DC24V AC110V/220V; DC24V
Open/Close Speed 0.9Sec-8Sec (Adjustable) 0.6Sec-6Sec (Adjustable)
Rated Power 200W 400W
Driving Method Servo motor Servo motor
Humidity ≤90% ≤90%
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Protection Grade IP54 IP54
Motor No-load Speed 3000r/min 3000r/min
Max Boom Length 3m-6m 2.5m
Digital Signal Processor Controlled Automatic Barrier Gate For Complex Algorithms 0
Arm Direction Change Instructions
Servo motor allows arm direction change (LEFT or RIGHT) in 6 process steps:
  1. Remove the original left side electronic control board bracket and install it to the right
  2. Remove the M8X20 hexagon socket screw that fixes the motor and lift out the motor
  3. Remove the fixing screw on the boom bracket (see Figure 1)
  4. Use M14X150 screws to pull out the boom bracket (as shown in Figure 2)
  5. Install the extracted bracket from original left to right, or original right to left
  6. Install back to the case, fix M8X20 hexagon socket screws - left and right exchange completed with no additional settings required
