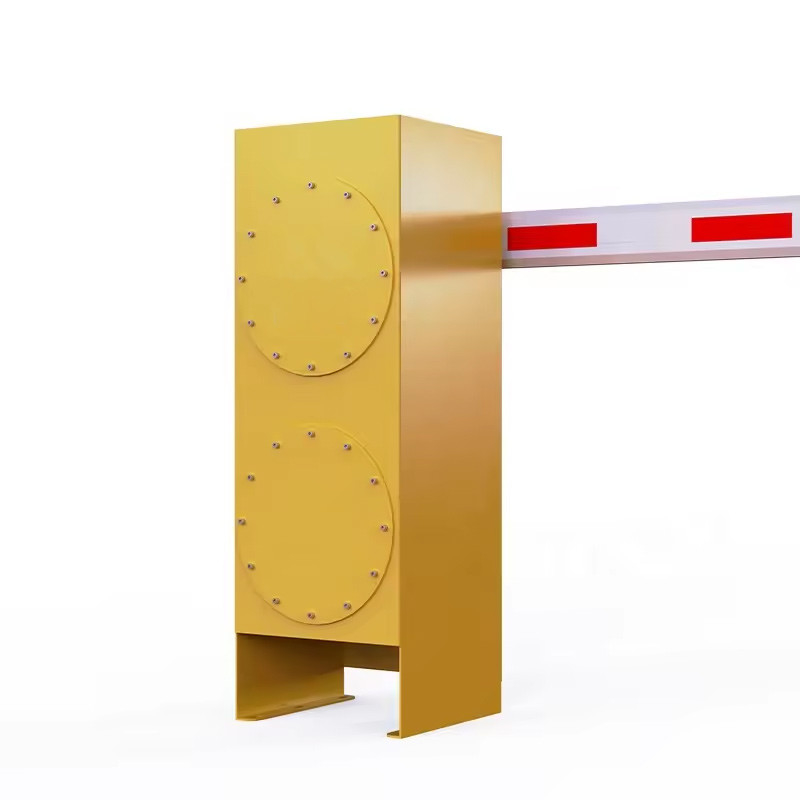

Safety Parking Gate System RS485 Traffic Light Interface IP66 Water-Proof Explosion-Proof
  • Safety Parking Gate System RS485 Traffic Light Interface IP66 Water-Proof Explosion-Proof
  • Safety Parking Gate System RS485 Traffic Light Interface IP66 Water-Proof Explosion-Proof
  • Safety Parking Gate System RS485 Traffic Light Interface IP66 Water-Proof Explosion-Proof
Safety Parking Gate System RS485 Traffic Light Interface IP66 Water-Proof Explosion-Proof

Safety Parking Gate System RS485 Traffic Light Interface IP66 Water-Proof Explosion-Proof

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number DZ-2243
Product Details
Protection Grade:
IP66
Rated Power:
160W/200W
Boom Length:
2m~6m (Max 8 Meters)
Color:
Yellow
Speed:
1.2s To 3s, 2.5s To 6s (adjusatable)
Motor:
DC Brushless
Highlight:

IP66 Water-Proof Parking Gate System

,

Explosion-Proof Parking Gate System

,

Safety Parking Gate System

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Credit card, Paypal, Alipay, Wechat
Supply Ability
3,000 pcs per month
Product Description
Safety Parking Gate System with RS485 Interface & IP66 Water-Proof Explosion-Proof Design
This explosion-proof barrier gate is a sophisticated mechatronics product featuring compact design, low noise operation, high efficiency, wide speed regulation range, and minimal steady-state speed error.
Advanced Engineering Features
Our fourth-generation specialized reducer offers multiple speed ratios, stable operation, and customized gears with superior transmission efficiency and high stability. Utilizing advanced mold design technology, die-cast manufacturing, and brushless control speed regulation, this system ensures reliable performance with quick arm interchangeability and clutch-free design for enhanced usability.
Ideal Applications
Gas stations, gas plants, natural gas facilities, kerosene cave entrances, chemical factories, hazardous material warehouses, and other high-security industrial environments.
System Functions
  • Adjustable running speed: 1.5s to 3s, 2.5s to 8s
  • Quick arm direction interchange capability
  • Manual operation via motor wheel during power outages with automatic reset
  • Curved crank arm three-link movement structure for stable operation
  • Wireless remote control for open/close functions
  • Adjustable auto-reverse safety function
  • Infrared photocells connector compatibility
  • Loop detector connector availability
  • Seamless integration with parking systems via wire control
  • Traffic light connector (AC220V, power less than 40W)
  • Dry contact signal output for parking systems (COM, NC, NO)
  • Adjustable auto-delay when closing
  • Built-in RS485 or CAN network communication interface
  • Counting interface for traffic monitoring
  • 24V backup battery interface with solar charging option
  • Arm open function during power outages (with backup battery option)
  • Optional anti-collision alarm device
Technical Specifications
Parameter Standard Model Extended Model
Cabinet Size 350×305×1005(mm) 350×305×1005(mm)
Working Temperature -35℃ to +65℃ -35℃ to +65℃
Power Supply AC110V/220V; DC24V AC110V/220V; DC24V
Open/Close Speed 1.2-3 Seconds (Adjustable) 2.5-6 Seconds (Adjustable)
Rated Power 160W 200W
Driving Method DC Brushless Motor DC Brushless Motor
Humidity ≤90% ≤90%
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Protection Grade IP66 IP66
Motor No-load Speed 1850r/min 1850r/min
Adaptable Boom Length 2m-4.5m 3m-6m
Explosion-proof safety parking gate system installation and components
Installation Procedure
  1. Site Preparation: Select the appropriate barrier gate type according to space specifications. Fix the barrier cabinet with expansion bolts. For non-concrete ground, create a cast-in-place basement according to site conditions.
  2. Spring Selection & Commissioning: The barrier gate is pre-adjusted before delivery. For additional adjustments, use the following stretchable spring specifications:
    • Diameter 4.0MM - Green color
    • Diameter 4.5MM - Red color
    • Diameter 5.5MM - Blue color
    • Diameter 6.8MM - Yellow color
    • Diameter 7.0MM - White color
    Spring length varies by product. Design changes will be communicated separately.
  3. Barrier Arm Position Adjustment: To reposition the arm after excessive force application:
    • Open the barrier gate door and remove the cover
    • Loosen the two DZ-8 fastening screws on the pendulum shaft using an M12 Allen key
    • Manually reposition the barrier arm to horizontal position
    • Re-tighten the two fastening screws with a hexagon wrench
