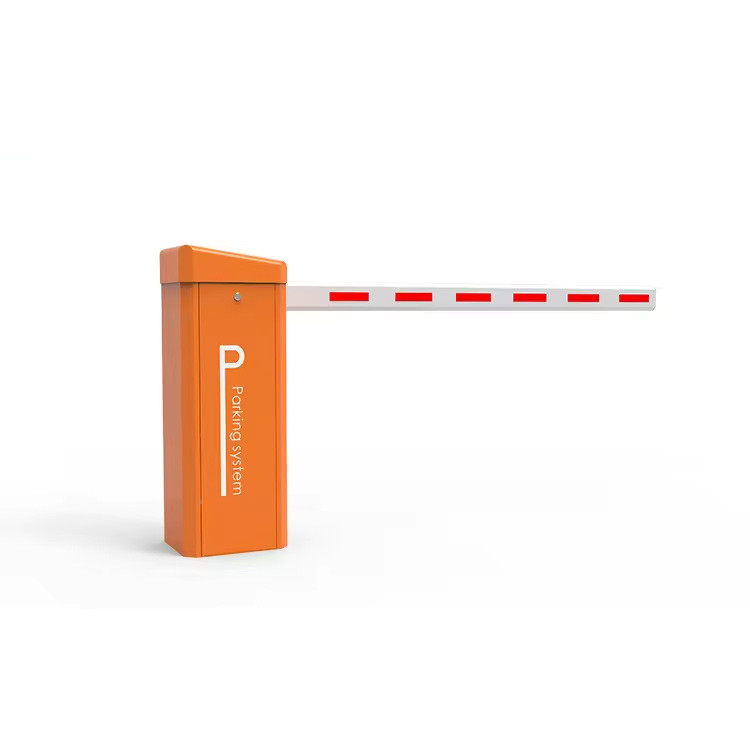

High Speed ETC Toll Station Automatic Parking Lot Gates with IP54 Protection Grade
  • High Speed ETC Toll Station Automatic Parking Lot Gates with IP54 Protection Grade
  • High Speed ETC Toll Station Automatic Parking Lot Gates with IP54 Protection Grade
  • High Speed ETC Toll Station Automatic Parking Lot Gates with IP54 Protection Grade
High Speed ETC Toll Station Automatic Parking Lot Gates with IP54 Protection Grade

High Speed ETC Toll Station Automatic Parking Lot Gates with IP54 Protection Grade

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number DZ-SF-138
Product Details
Cabinet Size:
298*340*928(mm)
Protection Grade:
IP54(IP 65 Optional)
Rated Power:
200W/400W
Boom Length:
2.5m~6m (Max 8 Meters)
Color:
Orange/Grey/Red (customizable)
Boom Type:
Straight, Folding, Fencing, Round
Highlight:

High Speed Automatic Parking Lot Gates

,

Toll Station Automatic Parking Lot Gates

,

Automatic Parking Lot Gates IP54

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Credit card, Paypal, Alipay, Wechat
Supply Ability
3,000 pcs per month
Product Description
High Speed ETC Toll Station Automatic Parking Lot Gates with IP54 Protection Grade
Product Overview
This 2nd generation servo motor gate features an integrated design and mold manufacturing with international leading technology. The compact structure offers high precision, consistency, and standardization. Utilizing planetary reducer transmission, it delivers high efficiency, long lifespan, no oil leakage, no blocking, and low noise operation. The motor employs a 24V permanent magnet rare earth synchronous servo motor with small size, low power consumption, large torque, wide speed regulation, no heat generation, and small penetration with precise limits. Using a digital signal processor (DSP) as the control core enables complex algorithms, network connectivity, and intelligent operation. The integrated drive circuit (IPM) detects faults and displays fault codes for quick problem resolution. The three-bar linkage design ensures rapid rise and stable fall. Solar charging capability makes it suitable for unmanned applications including railway crossings, fire passages, oil stations, and mine tunnels without electricity requirements, enabling full automatic operation control.
Key Features
  • Different boom lengths available (3 to 6 meters / maximum 8 meters)
  • Customizable with IP65 protection grade suitable for outdoor use
  • Manual release (to be in up-position) in case of power turn-off/failure
  • Includes main board cooling fan and double safety limit switches
  • Supports internal and external vehicle loop detector
  • 2 years warranty for the system and parts (optional)
Technical Specifications
Parameter Standard Model Enhanced Model
Cabinet Size 298×340×928(mm) 298×340×928(mm)
Working Temperature -35℃ to +65℃ -35℃ to +65℃
Power Supply AC110V/220V; DC24V AC110V/220V; DC24V
Open/Close Speed 0.9Sec-8Sec (Adjustable) 0.6Sec-6Sec (Adjustable)
Rated Power 200W 400W
Driving Method Servo Motor Servo Motor
Humidity ≤90% ≤90%
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Protection Grade IP54 IP54
Motor No-load Speed 3000r/min 3000r/min
Max Boom Length 3m-6m 2.5m
System Functions
  1. Adjustable operation speed
  2. Adjustable slow up and slow down
  3. Adjustable limit angle
  4. Quick left and right direction interchange
  5. Manual barrier arm operation during power failure
  6. 418 frequency learning code anti-copy remote controller
  7. Infrared photocell sensor I/O signal input function
  8. Loop detector and radar I/O signal anti-collision input
  9. Up, down and stop I/O signal input function
  10. Counting (fleet) function
  11. LED light I/O signal output function
  12. Traffic light I/O signal output function
  13. Up and down in place, normally open and closed signal output
  14. RS485 communication output function
  15. Delay arm drop function
  16. Arm auto-reverse function
  17. Automatic lifting function when power is off (requires additional power storage module)
  18. I/O port single-key cycle up and down function
  19. Loop detector normally open and normally closed function
  20. One car per signal anti-toll evasion function
  21. Anti-collision alarm function (requires additional alarm and sensor)
  22. Fire linkage signal input function
  23. I/O port closes signal input function
  24. 24V storage battery input function
Core Components
High Speed ETC Toll Station Automatic Parking Lot Gates with IP54 Protection Grade 0
Arm Direction Change Instructions
Servo motor can change arm direction LEFT or RIGHT through 6 process steps:
Step 1: Remove the original left side electronic control board bracket and install it to the right
Step 2: Remove the M8X20 hexagon socket screw that fixes the motor and lift out the motor
Step 3: Remove the fixing screw on the boom bracket
Step 4: Use M14X150 screws to pull out the boom bracket
Step 5: Install the extracted bracket from original left to right or right to left
Step 6: Install back to the case, fix M8X20 hexagon socket screws - left and right exchange completed with no additional settings adjustment required
