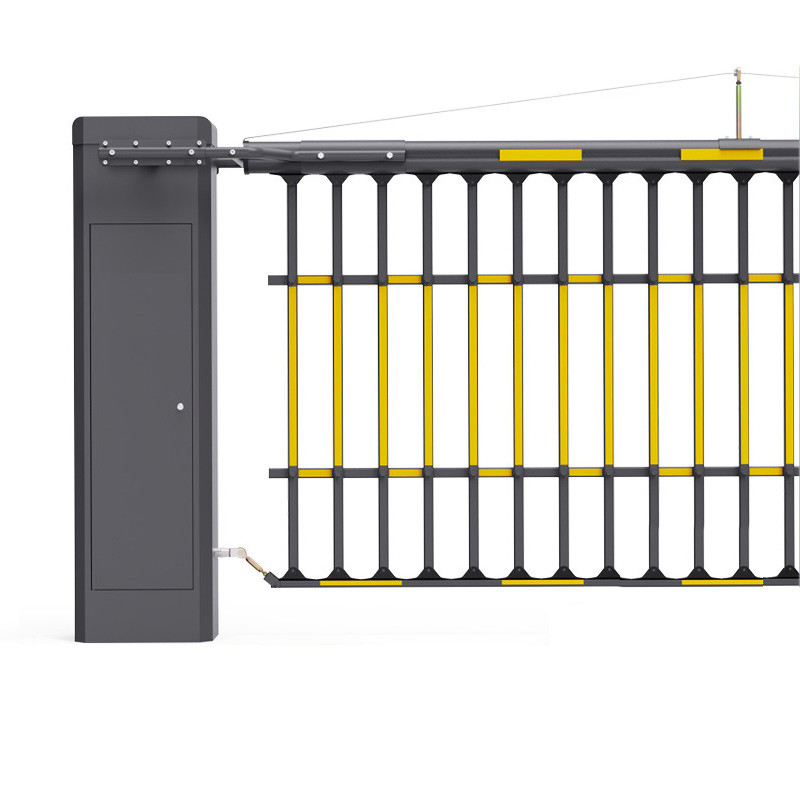

Electric Remote Control Intelligent Car Park Management System Airborne Auto Gate System
  • Electric Remote Control Intelligent Car Park Management System Airborne Auto Gate System
  • Electric Remote Control Intelligent Car Park Management System Airborne Auto Gate System
  • Electric Remote Control Intelligent Car Park Management System Airborne Auto Gate System
Electric Remote Control Intelligent Car Park Management System Airborne Auto Gate System

Electric Remote Control Intelligent Car Park Management System Airborne Auto Gate System

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DZ-2309
Product Details
Housing Dimension:
450x300x1745(mm)
Boom Length:
Max 6m
Power Supply:
DC24V/AC110V/220V 50/60Hz
Running Speed:
3s~16s
Rated Power:
250W
Driving Method:
DC Brush-less Motor
Highlight:

Airborne Auto Gate System

,

Intelligent Car Park Management System

,

Remote Control Car Park Management System

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union, , Alipay, Wechat, Credit card
Supply Ability
10,000 pcs per month
Product Description
Electric Remote Control Intelligent Car Park Management System
The airborne barrier gate system offers exceptional reliability, safety, and elegant design for modern traffic management. Engineered for high-performance operation in commercial districts, large parking facilities, residential complexes, office buildings, hotels, and highway toll stations.
Compact 6-Meter Design Advantages
Specifically designed for space-constrained installations with high traffic volume. Ideal for snowy regions where traditional gates may fail due to ice accumulation - the airborne design ensures uninterrupted operation in challenging weather conditions.
Advanced Operational Functions
  • Adjustable operation speed with customizable slow-up/slow-down settings
  • Flexible limit angle adjustment and quick left/right direction interchange
  • Manual operation capability during power outages
  • 418 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input functionality
  • Loop detector and radar I/O signal anti-collision protection
  • Up, down, and stop I/O signal input controls
  • Advanced vehicle counting (fleet) management
  • LED light and traffic light I/O signal output
  • Position sensing with normally open/closed signal output
  • RS485 communication interface
  • Programmable delay arm drop and auto-reverse functions
  • Automatic lifting during power failure (with optional power storage module)
  • 10-port single-key cycle operation
  • Loop detector normally open/closed functionality
  • Anti-collision alarm system (requires additional components)
  • Fire linkage signal input compatibility
  • Port closure signal input and 24V battery input support
Technical Specifications
Product Name Airborne Barrier Gate
Product Model DZ-2309
Product Dimensions 450×300×1745 mm
Operating Temperature -35℃ to +65℃
Power Supply DC24V/AC110V/220V 50/60Hz
Running Speed 3-16 seconds
Rated Power 250W
Drive Mechanism DC Brush-less Motor
Humidity Tolerance <90%
Remote Control Range ≤100m (clear conditions)
Protection Rating IP54
Motor No-load Speed 1850 rpm
Compatible Boom Length 3-6 meters
Engineering Excellence Features
  • Advanced mechatronic side-mounted design with compact structure for quick assembly and easy maintenance
  • Precision molding production ensuring high quality and manufacturing efficiency
  • Fourth-level gear transmission design delivering exceptional precision, longevity, and reliable operation even at -35°C
  • DC brushless motor technology providing low consumption, high efficiency, and stable speed control
  • Hall limit system with automatic detection and constant speed monitoring
  • Curved triple connecting rod structure for optimal arm balance and smooth operation
  • Quick directional interchange capability reducing inventory requirements
  • Advanced DC brushless controller with integrated chip drive, large memory, and global voltage compatibility
Electric Remote Control Intelligent Car Park Management System Airborne Auto Gate System 0
