Airborne Boom Barrier Gates Heavy Duty High Standard For Parking Lot

High Standard Parking Lot Heavy Duty AC Variable FrequencyAirborne Boom Barrier Gates

PRODUCT DESCRIPTION

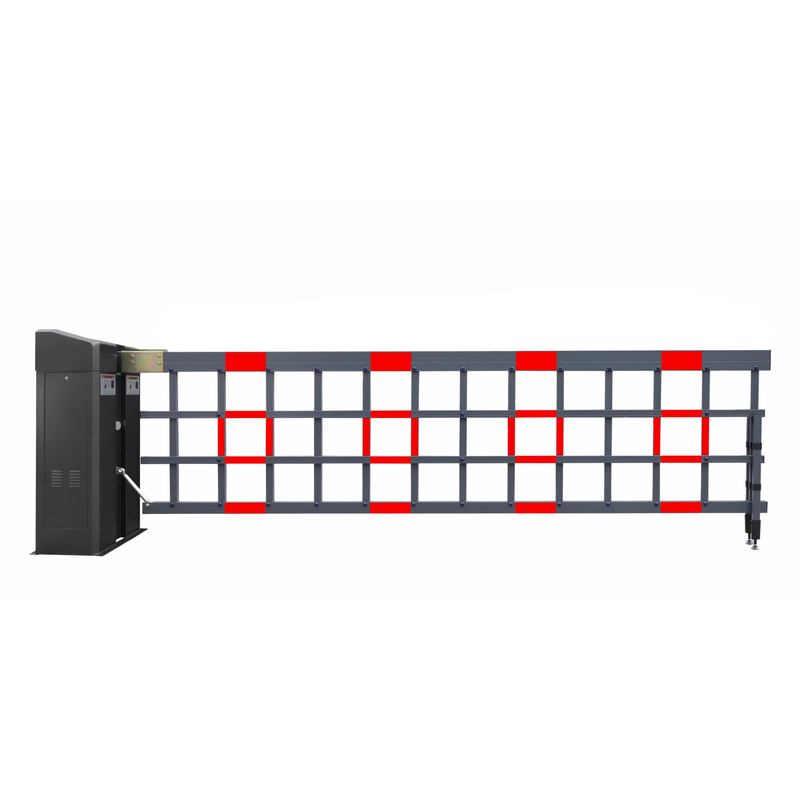

SINOMATIC Heavy Duty Airborne (fence) barrier gate is easy to use, safe and reliable, simple and elegant, and beautiful. The products are widely used in traffic fortresses such as commercial districts, large parking lots, commercial and residential areas, commercial plazas, office buildings, catering hotels, highways, provincial toll stations and other major roads.

Movement characteristics

1.Adopt the most stable non-constant speed running mechanism to make the brake lever start slowly, run quickly, and stop slowly, eliminating the vibration caused by the brake lever during opening and closing. Extend product life.

2.Using high-load and heavy-duty bearings with housings makes the movement part more stable.

3.The mechanical limit is adjustable, which makes the installation and debugging more convenient and quick.

4.Adopt high-sensitivity limit switch, instantly control the lifting and lowering of the rod in place accurately.

5.Integrated worm gear transmission deceleration asynchronous motor, stable transmission, low noise, compact structure, can realize self-locking.

6.The motor is equipped with an intelligent overheating protection system, which controls the temperature rise of the motor under frequent use, so that the motor is not easy to burn out.

7.Manual opening mechanism, when the power is off, the brake lever can be automatically raised and lowered by the motor hand wheel without restriction.

2. Control System

(1) Using digital chip technology, anti-smashing, ground sense, and IC interface are integrated into one, with good stability and zero probability of misoperation, especially with delay protection function, which has dual control effect.

(2) Use lifting overtime and motor overheating protection to prevent abnormal damage of gate

(3) Use the imported high-power relay to ensure the reliable operation of the barrier

(4) The original imported photoelectric isolation protection circuit is used to ensure signal integrity and strong interference resistance.

(5) Wireless remote control receiving module integrated with high-performance millions of learning codes to ensure the stability of operation.

(6) A unique arc extinguishing processing circuit is adopted to ensure the service life of the control board

(7) Transformer with original imported magnetic core, stable operation in outdoor damp environment

3. Security Features

(1)Ground sense anti-smashing: During the falling process of the barrier, if the ground sense(vehicle detector) signal is received, the barrier will reverse automatically, and will not fall during the triggering period. After the ground sense signal is restored, the barrier will automatically fall to ensure safety；

(2) Priority of opening and anti smashing: during the falling process of the barrier, in case of emergency, no matter what state it is running, as long as the opening signal is received, the barrier will perform the opening action;

Working Principle

The mechanical power is driven by the motor through the turbo worm reducer to drive the output shaft, and the motion is transmitted to the lever through the planar four-bar mechanism, and the magnetic sensor switch is used to accurately position the horizontal and vertical positions of the barrier during operation, so as to achieve Control of the barrier. (For details, see illustration)

TECHNICIAL SPECIFICATIONS

FEATURES AND FUNCTIONS

1. The box is waterproof, durable and can be used in outdoor environments. Closed fence barriers prevent people from crossing casually.

2. The box is treated by pickling, phosphating, electrostatic spraying polyester powder, etc. And it has been subjected to high-temperature hot-melt baking, scrubbing and anti-UV quality, ensuring no fading for about three years.

3. This system can be equipped with soft hose to prevent crash, as well as other protective equipment such as air pressure waves, so that the system has anti-smashing functions.

4. A variety of control methods are available for users to choose. Both external wired and remote control can be used to control the rise/lower/stop of the gate.

5. The use of multiple protection measures (heater protection, low temperature protection, wind protection, anti-electricity protection, anti-lightning protection, etc.), the reliability of the barrier operation is greatly improved.

6. Integrating electricity and mechanical control, flexible operation, convenient and reliable.

7. It can be used with the optional vehicle detector to make it have the functions of “automatic drop-off after the car passing” and “automatic lifting of the drop-bar when there is a car”, which makes the barrier have automatic closing and perfect anti-smashing function.

8. Opening priority function, which can effectively improve the efficiency of the vehicle passing.

9. The system uses a standard electrical interface externally, which can be easily attached to other systems.

10. All moving parts have been adjusted to a gentle movement and balance state, the solid machine performance is stable, the operation is smooth, the noise is small, and the service life is long.

Installation steps

● Open the packing box, and count the relevant random spare parts according to the parts list.

● Select a reasonable installation location according to the site, and ensure that the base plate is level with the concrete floor when fixing the base plate. If there is any unevenness, it must be smoothed with a grinder, and the base plate will not warp after installation;

● According to the position of the control room or sentry box, lay the power line and control line conduit according to the relevant regulations in the "GB232 Electrical Installation Engineering Construction and Acceptance Code" (it is recommended that the power line and control line be threaded in different line conduits).

● Install expansion screws (determined according to the actual accessories in the list) at the installation position of the lift door host, and fix the lift door host firmly before use.

● After the chassis is fixed, remove the spring, hand-operate the motor handle, shake the lever to the horizontal position, put the upper pole into the lever and put it on the splint and fasten it with bolts;

●Use M8*50 hex bolts to secure the lower rod and pull arm;

●Shake up the upper rod, when shaking the upper rod, one person needs to lift the upper rod to reduce the resistance of the gearbox, shake the upper rod to a vertical position, and hang the spring;

● Carefully compare the wiring diagram, connect the power line and related control lines to the control board of the gate, and after confirming that they are correct, tighten and debug.

Note: The above operations should be carried out under the condition of power off.
