Automatic Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG-2GDC |

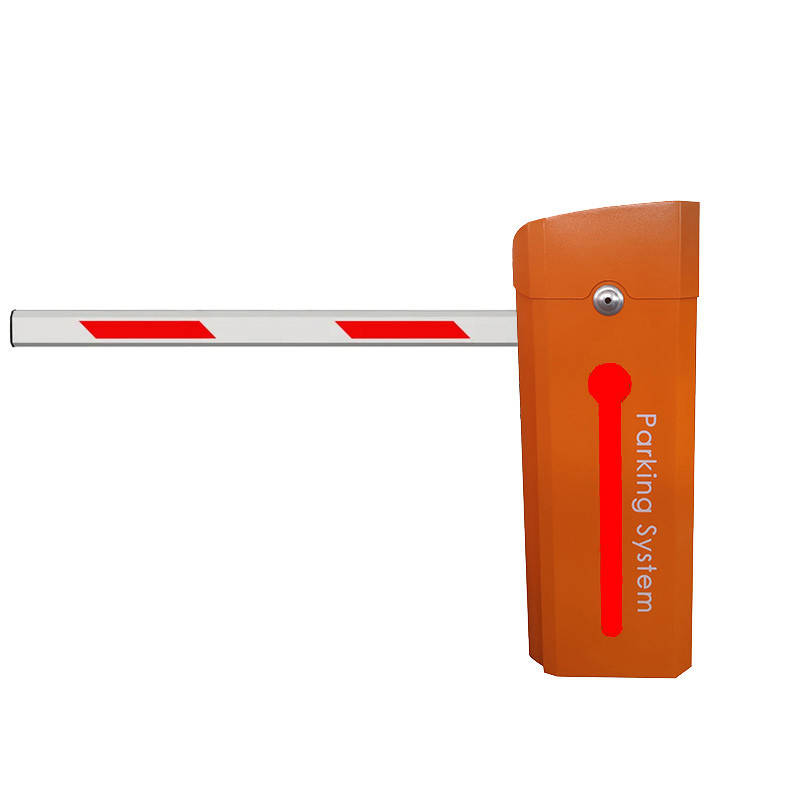

MX80 Model AC220V Power Supply DC24V Motor Red Green LED Light Parking Lot Barrier Gate
TECHNICIAN SPECIFICATIONS
| Model No. | SN-BG-2GDC |
| Framework Material | Cold roll sheet |
| Beam | Aluminum alloy |
| Dimension | 322*392*1030mm |
| Net Weight | 60KG |
| Input Interface | Photocell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V Brushless motor |
| Motor Consumption | 80W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5 million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Boom Length | 1M - 6M |
| Opening/Close Time | 1.5sec-6sec |
TECHNICIAL SPECIFICATIONS
1.The operation speed can be adjusted(1.5 to 6s).
2.Arm direction can be quickly interchanged.
3.Barrier gate up &down signal relay switch output.
4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.
7. Count mode interface.
8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.
9. High-sensitivity arm auto reverse function (intensity can be adjusted).
10. Parking system interface.
Parameters of Barrier Arm Type,Length and Operation Speed
| Arm type | Arm Length(L) | Operation time(S) | Height between arm and ground (M) |
| Straight arm | 6m≥L>5m | 5S | H=0.83m, height of arm center from ground level |
| 5m≥L≥4.5m | 4S | ||
| 4.5m>L≥3m | 3S | ||
| 90°folding arm | L≤4.5m | 5S | |
| 180°folding arm | L≤4m | 5S | |
| Two fence arm | 4.5m≥L≥4m | 6S | H=0.9m,height of arm center from ground level |
| 4m>L≥3m | 3S | ||
| Three fence arm | 5m≥L≥4m | 6S | H=1.5m,height of arm center from ground level |
| 4m>L≥3m | 5S |
Each barrier will include:
| 1 pcs Vehicle Barrier gate |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers, 1 pc push button |
| 1 pcs manual book |
PROTECTION OF BOOM ARM
| Anti-collision protects boom arm |
| It will protect the boom arm not to be damaged once boom arm was collided by a vehicle |
| Safety--- Anti-hit by pressure resistance bounce |
| While moving down, boom arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable |
OUR SERVICE
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market : 3-5 days for small order.
