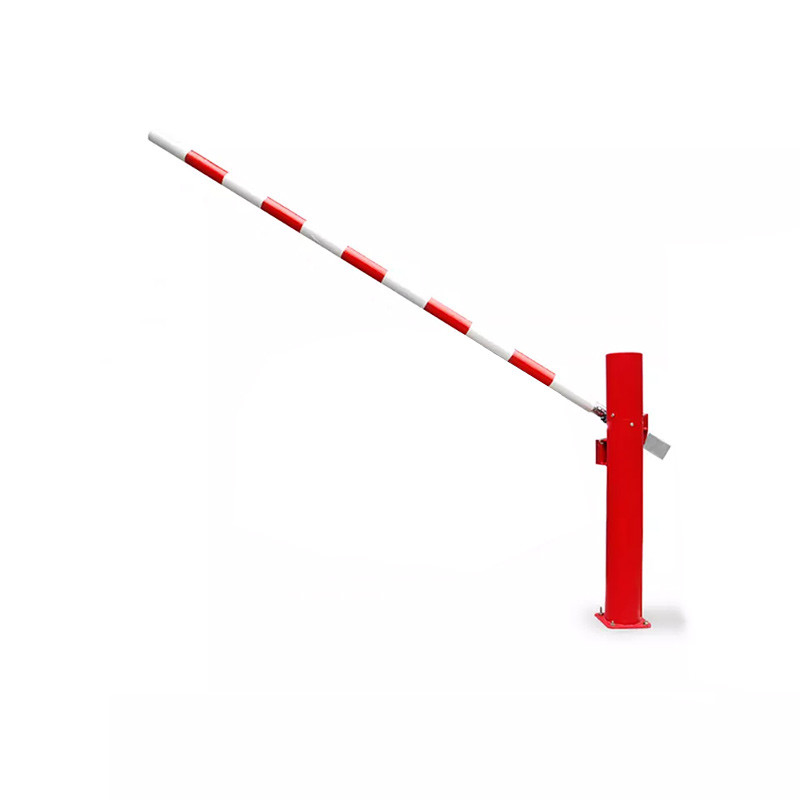

Car Parking System Automatic Barrier Gate Outdoor Waterproof 3s Speed
  • Car Parking System Automatic Barrier Gate Outdoor Waterproof 3s Speed
  • Car Parking System Automatic Barrier Gate Outdoor Waterproof 3s Speed
  • Car Parking System Automatic Barrier Gate Outdoor Waterproof 3s Speed
Car Parking System Automatic Barrier Gate Outdoor Waterproof 3s Speed

Car Parking System Automatic Barrier Gate Outdoor Waterproof 3s Speed

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-KSBG-E1
Product Details
Power Supply:
AC220V； DC 12-24V
Arm Type:
Round Arm
Arm Length:
Max 2.5 Meter
Working Temperature:
-20°C - 60°C
Control Distance:
30 Meters
Backup Battery:
Supported
Highlight:

car parking system automatic barrier gate

,

3s speed automatic barrier gate

,

3s speed automatic parking gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$150
Packaging Details
Carton box
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
1,000 pcs per month
Product Description
Car Parking System Automatic Barrier Gate
Outdoor Waterproof 3S Speed Ready To Ship Backup Battery Supported Cylinder Mini Size Barrier Gate
Product Overview
This parking boom barrier is a simple access control solution for car parks and factories. It can be connected with protective devices such as backup battery, flash lamp, and ground sensor. All steel parts are galvanized and powder coated red for rust protection. The boom arm is made from aluminum with white coating and reflective strips for high visibility in low light conditions.
Basic Kit Includes
  • 1 × Motor
  • 1 × 2.55m Straight Arm
  • 2 × Remote Control
  • 1 × Installation Accessories
Technical Specifications
Place of Origin Shenzhen, China
Brand Name SINOMATIC
Model Number KSBG-E01
Power Supply DC 12-24V
Current ≤1A
Running Time ≤3S
Remote Control Code Rolling code up to 100pcs remote controls
Working Temperature -20℃ ~60 ℃
Max. Boom Length 2.5 meter
Remote Control Distance Less than 50 meters
Time of Up/Down 3s
Warranty One year
Application Indoor/Outdoor
Safety Information
Automatic boom gates are not for pedestrians!
Automatic barrier gate opener systems are powerful while working and may cause serious body injury or death to pedestrians if they walk through/around the automatic barrier inappropriately. Separate walkways for pedestrians are required.
Installation Precautions
  • Before starting installation, operation, or maintenance, cut off power supply
  • The product must be earthed, and an earth leakage is necessary on the power supply
  • Do not change the original inside wiring
  • If power failure occurs, switch off power supply first, then open the door and rotate the handle on the motor manually to open the boom completely
  • Keep automatic controls (push-button, remote control, etc.) out of children's reach
  • Control systems must be installed at minimum height of 1.5m from ground surface
  • Use transmitters or buttons only where you can see the gate clearly
  • Never open the door or cover of the cabinet when the machine is working
  • Do not permit children to play on or around a gate
Car Parking System Automatic Barrier Gate Outdoor Waterproof 3s Speed 0
Installation Steps
  • Before installation, ensure there are no obstacles within 2.5 meters of installation area
  • Place boom barrier on ground and mark position of 4 expansion bolts
  • Drill holes with electric drill based on marked positions
  • Insert 4 bolts into holes and fasten securely
  • Assemble the 2.5 meters boom arm into the shell on boom barrier motor
  • Fasten bolts on the shell securely
  • Connect power cable and test operation with remote control
Car Parking System Automatic Barrier Gate Outdoor Waterproof 3s Speed 1
Frequently Asked Questions
  • May I have samples for testing?
    Yes, samples are available with lead time of 2-3 days
  • What's the MOQ?
    Minimum order quantity is 1 piece
  • How to pay for samples and delivery?
    Samples can be paid by Western Union, T/T, or Alibaba. Delivery by DHL, UPS, or TNT. Provide detailed address with post code for delivery cost calculation. Samples delivered within 3 working days, bulk orders within 25 working days
