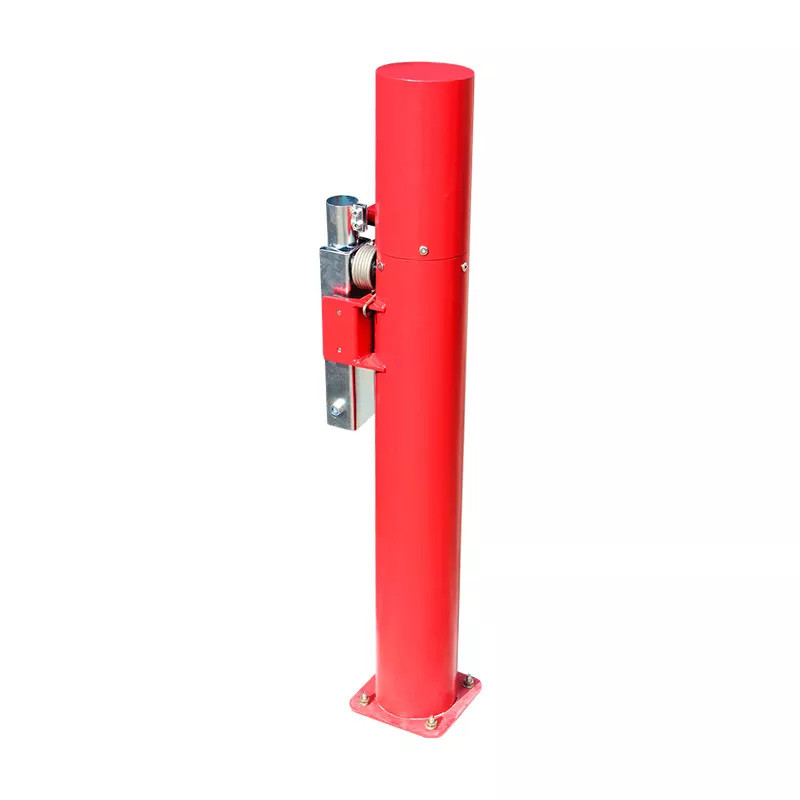

Light Weight 2.5 Meter Automatic Parking Barrier Gate Dc12v 24v Round Pole
  • Light Weight 2.5 Meter Automatic Parking Barrier Gate Dc12v 24v Round Pole
  • Light Weight 2.5 Meter Automatic Parking Barrier Gate Dc12v 24v Round Pole
  • Light Weight 2.5 Meter Automatic Parking Barrier Gate Dc12v 24v Round Pole
Light Weight 2.5 Meter Automatic Parking Barrier Gate Dc12v 24v Round Pole

Light Weight 2.5 Meter Automatic Parking Barrier Gate Dc12v 24v Round Pole

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-KSBG-E1
Product Details
Power Supply:
DC 12-24V
Arm Type:
Round Arm
Arm Length:
Max 2.5 Meter
Remote Code:
Rolling Code
Working Temperature:
-20°C - 60°C
Control Distance:
30 Meters
Highlight:

light weight automatic parking barrier gate

,

dc12v automatic parking barrier gate

,

round pole automatic boom gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$150
Packaging Details
Carton box
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
1,000 pcs per month
Product Description
Light Weight 2.5 Meter Automatic Parking Barrier Gate DC12V 24V Round Pole
Product Overview
Easy Operation Installation Light Weight 2.5 Meter DC12V 24V Round Pole Barrier Gate
Important Safety Notice
Automatic boom gates are not for pedestrians!
Automatic Barrier Gate Opener System is powerful while working. It may cause serious body injury or death to pedestrians if they walk through/around the automatic barrier inappropriately. Should have other separate walkway for pedestrians.
  • Before starting installation and operation or maintenance, cut off power supply.
  • The product must be earthed, and an earth leakage is necessary on the power supply.
  • Do not change the original inside wiring.
  • If power failure, please switch off the power supply first, then open the door and rotate the handle on the motor manually to open the boom completely.
  • Keep the automatic control (push-button, remote control, etc.) out of the reach of children. The control system must be installed at a minimum height of 1.5m from the ground surface.
  • Use transmitters or button only where you can see the gate clearly.
  • Never open the door or the cover of the cabinet when the machine is working.
  • Don't permit children to play on or around a gate.
Product Description
This parking Boom Barrier is a simple access control barrier for car parks and factories. It can be connected with protective devices such as backup battery, flash lamp, and ground sensor etc.
All steel parts are galvanized and powder coated red, ensuring rust is kept at bay. The boom arm is made from aluminium which has been coated white. Reflective strips ensure that the boom arm is easily seen even in low light conditions.
Boom Barrier Gate Basic Kit Includes
  • 1 × motor
  • 1 × 2.55m straight arm
  • 2 × remote control
  • 1 × installation accessories
Technical Specifications
Specification Details
Place of Origin Shenzhen, China
Brand Name SINOMATIC
Model Number KSBG-E01
Power Supply DC 12-24V
Current ≤1A
Running Time ≤3S
Remote Control Code Rolling code up to 100pcs remote controls
Working Temperature -20℃ ~ 60℃
Max. Boom Length 2.5 meter
Remote Control Distance less than 50 meters
Time of Up/Down 3s
Warranty One year
Application Indoor/outdoor
Installation Steps
  1. Before installation, please make sure there is no any obstacle within 2.5 meters of installation field.
  2. Put the boom barrier on the ground, usually use the pen to mark out the position of 4 pieces expansion bolts. Drill holes with electric drill based on the marked position of 4 pieces expansion bolts. After finishment of drilling holes, put the 4 pieces bolts into the holes, or strike the bolts into holes with hammer carefully. Then fasten the bolts well.
  3. Assemble the 2.5 meters boom arm into the shell of rod that is on boom barrier motor. Then fasten the bolts on the shell.
  4. Connection of power cable, press the remote control to test if it is working normally.
Light Weight 2.5 Meter Automatic Parking Barrier Gate Dc12v 24v Round Pole 0
Frequently Asked Questions
May I have samples for testing?
Yes, samples are available. The lead time will be 2-3 days for samples.
What's the MOQ?
MOQ 1PC.
How to pay for samples, and how you delivery it?
Samples can be paid by Western union, T/T, Alibaba. Delivery by DHL, UPS or TNT, if you want to know the cost of delivery, please offer your detailed address with post code. Samples usually will be delivered within 3 working days, bulk orders within 25 working days.
