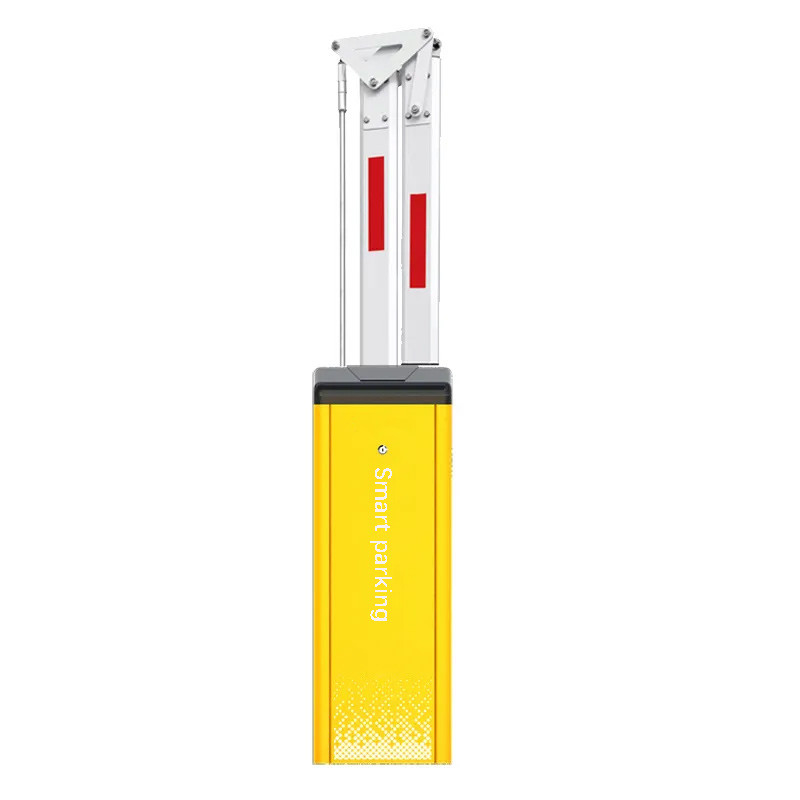

Adjustable Running Smoothly Barrier Gate Parking System DC24V Brushless Motor
  • Adjustable Running Smoothly Barrier Gate Parking System DC24V Brushless Motor
  • Adjustable Running Smoothly Barrier Gate Parking System DC24V Brushless Motor
  • Adjustable Running Smoothly Barrier Gate Parking System DC24V Brushless Motor
Adjustable Running Smoothly Barrier Gate Parking System DC24V Brushless Motor

Adjustable Running Smoothly Barrier Gate Parking System DC24V Brushless Motor

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DZE-BL
Product Details
Power Supply:
AC100V~240V; DC24V
Motor Voltage:
DC24V
Rated Power:
160W
Gross Weight:
50kg（Not Include Boom）
Boom Type:
Straight, Folding, Fence, Round
Boom Lenght:
Max 6 Meters
Highlight:

Adjustable Running Smoothly Barrier Gate

,

DC24V Smoothly Barrier Gate

,

Automatic 160W Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
Adjustable Running Smoothly Barrier Gate Parking System DC24V Brushless Motor
Professional DC24V parking barrier gate system featuring a pure copper motor core brushless motor with adjustable speed for smooth, reliable operation.
Key Specifications
  • Working temperature (motor): -35℃ to +80℃
  • Power supply input voltage: AC110-120V or AC200-240V
  • Controller input voltage: DC24V±10%, 10A
  • Motor power: 200W MAX
  • Relative Humidity: 30%-80%, No condensation
  • Remote control distance: ≥30 meters
  • Insulation grade: F
Main Features
  • Compatible with SN-DZE-BL(1.5-6s) mechanism
  • Left-installation and right-installation exchangeable (Optional)
  • Alarm system for abnormal lifting boom detection
  • Supports 24-hour continuous operation without overheating
  • Speed reduction at limit positions for safety
  • RS485 communication and TCP/IP network port
  • Count mode interface for traffic monitoring
  • Loop detector connector available
  • Adjustable auto-delay when closing
  • Remote control operation capability
  • Automatic arm lift function during power outages
  • Infrared sensor signal anti-smashing interface
  • Adjustable operation speed from 1.5s to 6s
  • High-sensitivity arm auto reverse function (adjustable intensity)
  • Arm automatic locking when power off with manual wheel operation
  • Arm swing out function (optional) for vehicle impact protection
Technical Specifications
Product Name Parking System DC24V Pure Copper Motor Core Brushless Motor Speed Adjustable Running Smoothly Barrier Gate
Housing material 1.5mm cold-roller sheet
Housing Painting Powder coating
Housing size 335mm × 285mm × 962mm
Arm material Aluminum Alloy
Arm length Max 6m
MTBF 5 million cycles
Duty Cycle 100%
Net Weight 45kg
Rated Power 160W
Max Motor Power 200W
Open/close time 1.5s-6s
Remote control distance ≥30 meters
IP Grade IP54
Operating Temperature -35°C to +80°C
Motor High performance DC24V brushless motor
Power supply input AC 220/110V ±10%, 50/60Hz
Package Size 102.5cm × 36.5cm × 47cm
Main Characteristics
  • DC brushless motor with movable connecting rod transmission mechanism and balance spring for stable, reliable operation
  • Motor life cycle: ≥2,500,000 cycles; Spring life cycle: ≥500,000 cycles
  • Built-in delay auto-closing and obstacle detection with reverse function
  • Supports infrared photocell, loop detector, and external radar with built-in DC12V power output
  • Standard 433MHZ learning code remote control for easy configuration
  • Emergency operation with external DC12V batteries during power outages; optional battery charging module
  • Multiple boom type compatibility with easy change capability
Adjustable Running Smoothly Barrier Gate Parking System DC24V Brushless Motor 0
Frequently Asked Questions
Are you a trade company or manufacturer for barrier gates?
We are a manufacturer and welcome factory visits. OEM products are available.
Why does the barrier boom sometimes open automatically?
Check if the limit switch is in the correct position and adjust if necessary. Refer to the Barrier Gate Manual or adjust the adjusting screw. Also verify the spring intensity.
What is the remote control distance?
Most 418 remote controls can cover up to 100 meters, but we recommend using within 30-50 meters for safe and stable operation.
Can the barrier gate be used outdoors in extreme weather?
Yes, the operating temperature range is -40℃ to +75℃.
Is the installation direction changeable?
Yes, our DC motor barrier gates can typically accommodate changes in installation direction.
