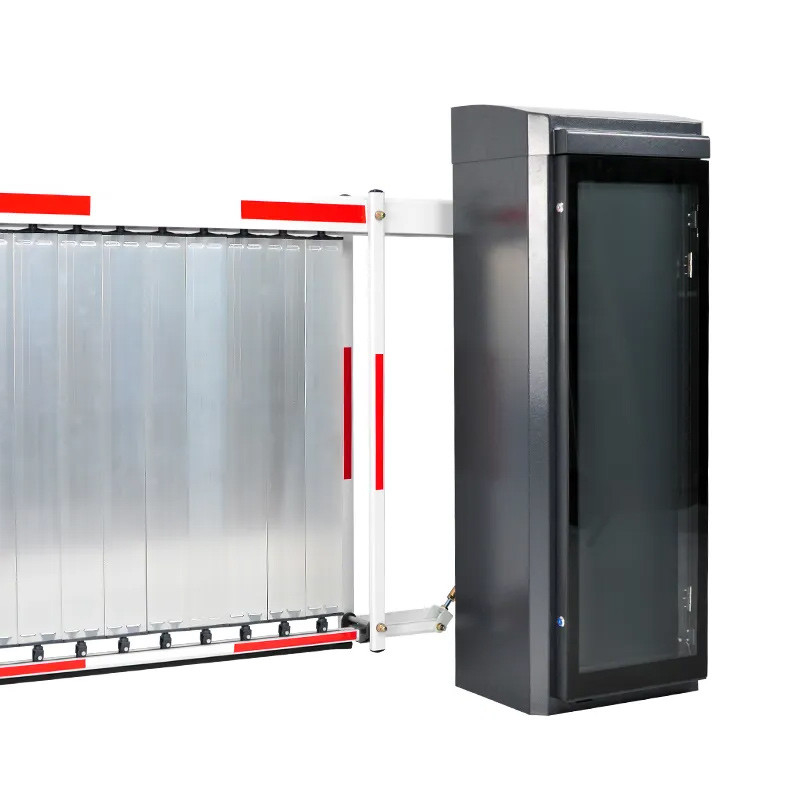

Electric Automatic Parking Advertise Barrier Gate Aluminium Fencing Boom Remote Control
  • Electric Automatic Parking Advertise Barrier Gate Aluminium Fencing Boom Remote Control
  • Electric Automatic Parking Advertise Barrier Gate Aluminium Fencing Boom Remote Control
  • Electric Automatic Parking Advertise Barrier Gate Aluminium Fencing Boom Remote Control
Electric Automatic Parking Advertise Barrier Gate Aluminium Fencing Boom Remote Control

Electric Automatic Parking Advertise Barrier Gate Aluminium Fencing Boom Remote Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-AD02
Product Details
Color:
Grey/Orange
Surface Treatment:
Antirust Spraying
Arm Type:
Advertising Arm
Rated Voltage:
DC 24V
Boom Lenght:
3m To 4m (4.5M Need To Be Customized)
Rated Power:
250W
Highlight:

Electric Automatic Parking Advertise Barrier Gate

,

DC 24V Automatic Parking Barrier Gate

,

250W Automatic Parking Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
1,000pcs per month
Product Description
Electric Automatic Parking Advertising Barrier Gate
New Arrival Ready to Ship
AC 220V/110V DC 24V Advertising Boom Barrier Gate for Parking System Community
Thank you for considering our DC brushless motor advertising barrier gate. This advanced product incorporates the latest mold design technology and die-casting manufacturing processes. Featuring a double-row five tension springs balance design for extended spring life and superior tensile flexibility, along with brushless control speed regulation technology and clutch-free design for enhanced reliability and ease of use. The movement system utilizes two-stage worm gear transmission with curved crank arm and three connecting rod structure, ensuring fast and stable UP & DOWN operation with easy maintenance and long service life.
Technical Specifications
  • Working temperature (motor): -35℃ to +85℃
  • Rated voltage: DC24V
  • Running speed: 3-10 seconds
  • Rated current: 9.5A
  • Rated power: 250W
  • No-load speed: 2500rpm
  • Rated speed: 1800rpm
  • Output Power: 120N.m
  • Relative humidity: ≤90%
  • Remote control distance: ≤100M (in open areas)
  • IP Degree: IP44
  • Maximum arm length: 4.5M
Main Functions and Features
  • Adjustable running speed from 3 to 10 seconds
  • Manual barrier opening via motor wheel during power outages with automatic reset when power returns
  • Curved crank arm three-link movement structure for stable operation
  • Wireless remote control for opening and closing
  • Arm auto reverse with adjustable force
  • Infrared photocell compatibility
  • Loop detector compatibility
  • Parking management system integration with open/close signals
  • Traffic light port (2A12V/220VAC, supports lights under 40W)
  • Limit signal output for car parking management systems (COM/NO/NC)
  • Delay closing arm function
  • RS485 or CAN internet communication interface (no additional module required)
  • Counting interface
  • 24V backup battery interface (solar power compatible)
Product Mechanism
Electric Automatic Parking Advertise Barrier Gate Aluminium Fencing Boom Remote Control 0
Product Parameters
Parameter Specification
Power supply AC220V/AC110V (±10%)
Frequency 50/60HZ
Rated Power 200w
Open/close time 3s to 8S
Arm type Advertising arm
Max arm length 4M (4.5M available by customization)
Housing material Cold roll plate, 2mm thickness sheet
Protection grade IP44
Application Indoor/outdoor
Product Advantages
  • 3 to 8 second adjustable open/close time
  • Advertising DC brushless motor with 5 million MCBF
  • 5 tension spring balance system for heavy-duty durability
  • LED lights with timer control for customized lighting schedules
  • Simplified design for easy installation and maintenance, reducing labor costs
  • Fast finishing time: 3-5 days for small orders
  • OEM branding, logo, and label customization available
  • 1-year standard warranty with excellent after-sales service
  • 24/7 customer support for optimal assistance
Product Package
Packed in bubble wrap with reinforced carton outer packing for maximum protection during shipping.
Packing List
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board 1 Fixing the boom
Self-tapping screw ST4*16 Fixing the boom
Self-tapping screw ST3*10 4 Fixing the boom
Supporting pole 1 Supporting the boom
Expansion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 Fixing the case
Clutch key 1 Clutch device
Case Key 2 For case and cover locking
Balance spring According to barrier arm length 1 For spare usage
Remote emitter Less than 30m range 1 For remote control
Remote control handles Less than 30m range 2 For remote control
Instruction English language 1 For reference
RS485 interface 1 Optional
Disc 1 Optional
Communication Module 1 Optional
Cover head 1 3 years without fading
Expansion nut M8 4 Fixing the supporting pole
