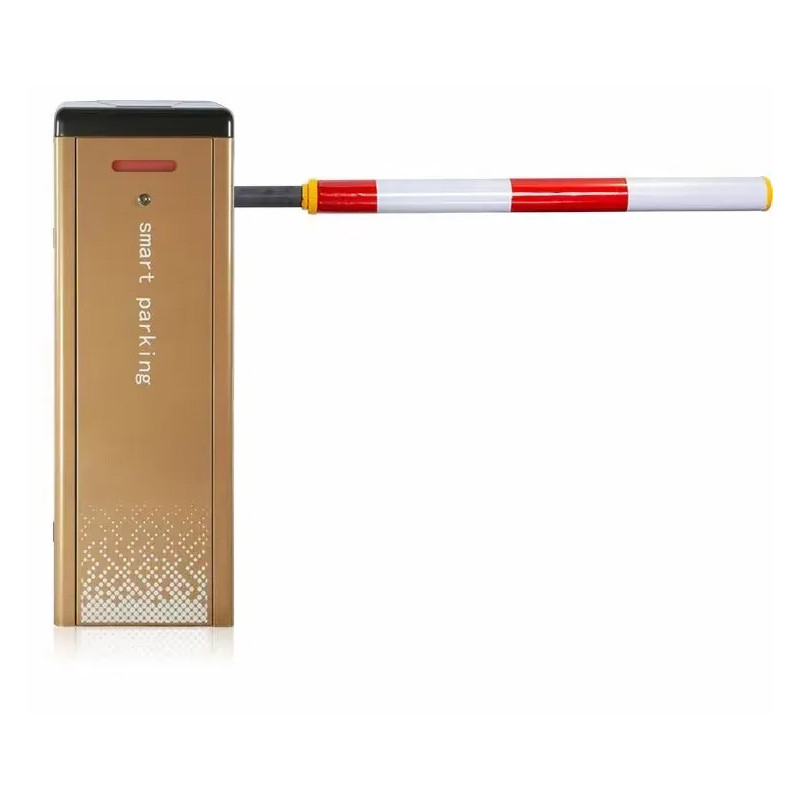

RS485 Traffic Barrier Gate Vehicle Access Control DC 24V BLDC Motor
  • RS485 Traffic Barrier Gate Vehicle Access Control DC 24V BLDC Motor
  • RS485 Traffic Barrier Gate Vehicle Access Control DC 24V BLDC Motor
  • RS485 Traffic Barrier Gate Vehicle Access Control DC 24V BLDC Motor
RS485 Traffic Barrier Gate Vehicle Access Control DC 24V BLDC Motor

RS485 Traffic Barrier Gate Vehicle Access Control DC 24V BLDC Motor

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DZE-BL
Product Details
Power Supply:
AC100V~240V; DC24V
Motor Type:
BLDC
Motor Voltage:
24V
Net Weight:
50Kg
Gross Weight:
55kg（Not Include Boom）
Boom Type:
Straight, Folding, Fence
Highlight:

RS485 Traffic Barrier Gate

,

Auto Reverse Traffic Barrier Gate

,

BLDC Motor Vehicle Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C, D/A, D/P, T/T, Western Union,
Supply Ability
1,000 pcs per month
Product Description
RS485 Traffic Barrier Gate Vehicle Access Control DC 24V BLDC Motor
High Volume Traffic Barrier Control and Vehicular Access
Professional DC 24V barrier gate system designed for high-traffic vehicle access control applications.
Product Specifications
Operating Parameters
  • Working temperature (motor): -35℃ to +80℃
  • Power supply input voltage: AC110-120V or AC200-240V
  • Controller input voltage: DC24V±10%, 10A
  • Motor power: 200W MAX
  • Relative Humidity: 30%-80%, No condensation
  • Remote control distance: ≥30M
  • Insulation grade: F
Technical Specifications
Model SN-DZE-BL
Running Speed Options 1.5s, 3s, 4s, 5/6s, 6s
Boom Type Options Straight, 90° folding, 180° folding, 2 fence, 3 fence
Max Boom Length 3m, 4.5m, 5m, 6m
Input Voltage AC 220V±10%, AC110V±10%
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
MTBF 2,500,000 times
Traffic Flow Application 1500 times / 24 hours
Motor Rated Power 100W
Max Motor Power 200W
Max Motor Speed 24r/min
Key Features
  • Compatible with SN-DZE-BL(1.5-6s) mechanism
  • Left-installation and right-installation interchangeable (Optional)
  • Alarm system for abnormal lifting boom detection
  • Supports 24-hour continuous operation without overheating protection
  • Automatic speed reduction at limit positions
  • RS485 communication and TCP/IP network port connectivity
  • DC brushless motor with movable connecting rod transmission and balance spring
  • Built-in delay auto-closing and obstacle detection with reverse function
  • Supports infrared photocell, loop detector, and external radar
  • Built-in DC12V power output
  • Standard 433MHZ learning code remote control with easy configuration
  • Battery backup operation with optional charging module
  • Multiple boom type compatibility with easy changeover
Performance Characteristics
  • Motor life cycle: 2,500,000+ operations
  • Spring life cycle: 500,000+ operations
  • Stable and reliable operation with advanced transmission mechanism
Product Details
RS485 Traffic Barrier Gate Vehicle Access Control DC 24V BLDC Motor 0
Frequently Asked Questions
Are you a trade company or manufacturer for barrier gates?
We are a manufacturer and welcome factory visits. OEM products are available.
Why does the barrier boom sometimes open automatically?
Check the limit switch position and adjust if necessary. Refer to the Barrier Gate Manual or adjust the adjusting screw. Also verify spring intensity.
What is the remote control distance?
Most 418 remote controls cover 100 meters, but we recommend using within 30-50 meters for safe and stable operation.
Can the barrier gate be used outdoors in extreme weather?
Yes, the working temperature range is -40℃ to +75℃.
Is the installation direction changeable?
Our DC motor barrier gates typically support this function.
