Infrared Sensor Drop Arm Turnstile Public Door Access Control Security Protection
  • Infrared Sensor Drop Arm Turnstile Public Door Access Control Security Protection
  • Infrared Sensor Drop Arm Turnstile Public Door Access Control Security Protection
  • Infrared Sensor Drop Arm Turnstile Public Door Access Control Security Protection

Infrared Sensor Drop Arm Turnstile Public Door Access Control Security Protection

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-DAB02
Product Details
Drive Mode:
Motor Drive
Motor Voltage:
Material Of Cabinet:
304 Stainless Steel
Motor Type:
Control Device:
Reader/fingerprint/face Etc
High Light:

DC24V Drop Arm Turnstile Gate


304 SS Drop Arm Barrier Gate


30 persons/min Drop Arm Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

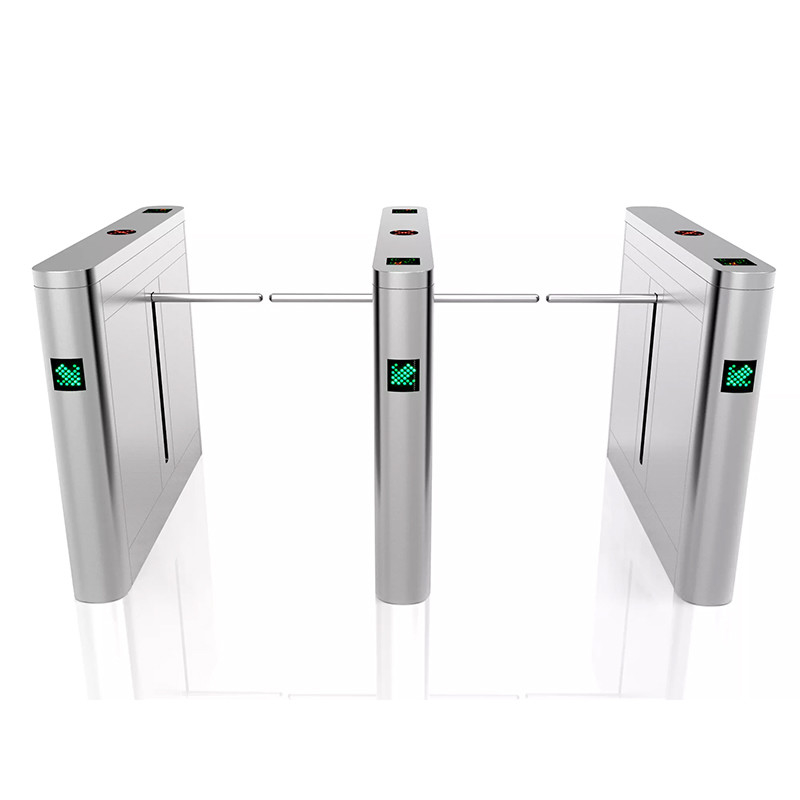

Infrared Sensor Security Protection Public Door Access Control Drop Arm Turnstile




One arm turnstile is a stainless steel tripod turnstile with high quality and fast controlling for entry and exit flow. It can be controlled by RFID, barcode, fingerprint or facial verification device. The data transfers by TCP/IP or RS-485. It's good for management of people's entry and exit in school, office, residential, parks, factories, metro and bus station etc.


Drop Arm Turnstile is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.


Infrared Sensor Drop Arm Turnstile Public Door Access Control Security Protection 0




1. Easy operation and convenient maintenance with functions of breakdown self check and alarm.

2. flexible code dialing settings, having about dozens types performance for your selection.

3. Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the turnstile will automatic stop or rebound, sending out alarm signal at the same time.

4. Various alarm patterns, including illegal intrusion, reverse passing, anti-trailing and overtime passing alarm etc.

5. Impact resistant, without receiving the open signal, turnstile arm locks automatically.

6. Anti-reverse passing, when somebody attempt to passing reversely, the wing quickly shuts at the same time alarms.

7. High brightness access indicator light and its humanized prompt function, make the passageway more characteristic.

8. Adjustable for modes of normal open and normal close,can easily be achieved through code-dialing or external manual button controlling.

9. Automatic detection and reset function: System will automatically cancel the access permissions when no objects passing is detected within the prescribed period of time (adjustable).

10. The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.

11. Can be linked with a variety of control equipments, receiving the signal of relay switch .

12. Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.

13. Strong environment adapting ability , Turnstile cam be installed in any harsh environments, with strong ego protecting ability. such as weak current, short circuit, glare, fog rain and snow weather, typhoon or other environmental change.




Description Parameters
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz, DC24v
Drive Mode Motor drive
Max Power Consumption 100W
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 10,000,000 cycles
Outside packing 1200*280*980mm
Working Environment -20°C~+60°C
Gross Weight 70-80kg



1.What type of entry solutions do you carry?
We carry a full range of entry solutions including,tripod turnstile, full height turnstile,flap barrier swing gate and

speed gate etc.


2.Do you do customization?
Yes.we do customization with different sizes and different mechanics according to customer's needs


3.Are you a trading company?Do you only do assembly in house?
No.we are not trading company.Our factory manufactures most of the items including the simple housing till the

complicated mechanics.

4.Do you have inhouse engineering team?
Yes,we do have our inhouse engineeringteam which consist of R&D technical and software development team.


5.What type of access control comes with your machine?
Our machines can be tie with face ID fingerprint sensor,ID/IC card reader, QR code or bar code etc.
