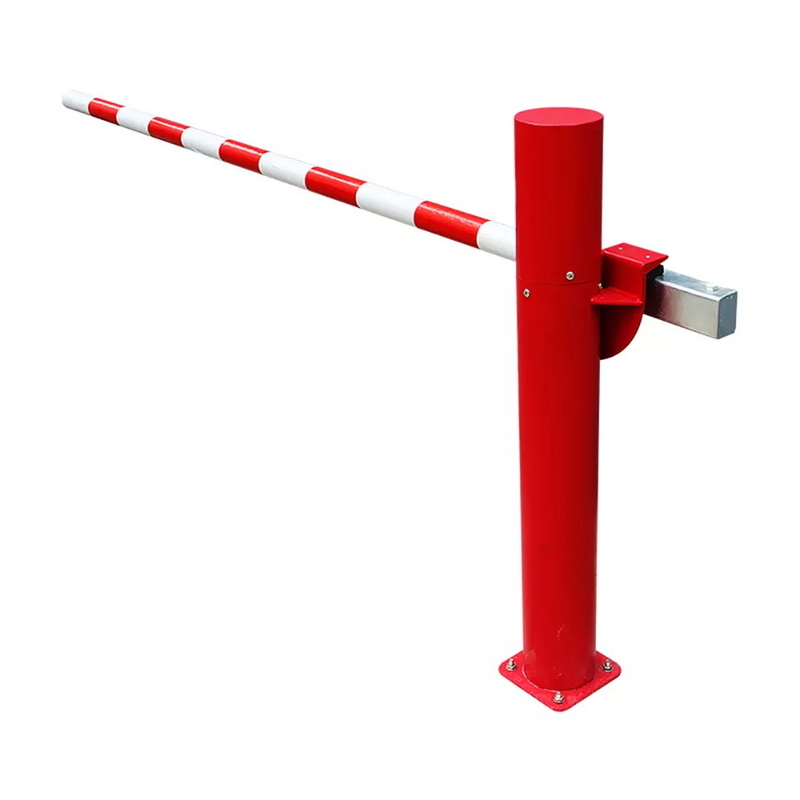

DC 12V Automatic Barrier Gate 3S High Speed 2.5M Straight Boom Lightweight
  • DC 12V Automatic Barrier Gate 3S High Speed 2.5M Straight Boom Lightweight
  • DC 12V Automatic Barrier Gate 3S High Speed 2.5M Straight Boom Lightweight
  • DC 12V Automatic Barrier Gate 3S High Speed 2.5M Straight Boom Lightweight

DC 12V Automatic Barrier Gate 3S High Speed 2.5M Straight Boom Lightweight

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-KSBG-E1
Product Details
Power Supply:
DC 12-24V
Arm Type:
Round Arm
Arm Lenght:
Max 2.5 Meter
Remote Code:
Rolling Code
Working Temperature:
-20°C - 60°C
Current:
≤ 80 MA
High Light:

DC 12V Automatic Barrier Gate

,

Lightweight Boom Automatic Barrier Gate

,

Straight Boom Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$150
Packaging Details
Carton box
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability
1,000 pcs per month
Product Description

High Speed 3S 2.5M Straight Boom Light Weight Carton Package DC 12V Automatic Road Barrier Gate





PRODUCT DESCRIPTION


This parking Boom Barrier is a simple access control barrier for car parks and factories.



It can be connected with protective devices such as backup battery, flash lamp,and ground sensor etc.


All steel parts are galvanized and powder coated red, ensuring rust is kept at bay. The boom arm is made from aluminium which has been coated white. Reflective strips ensure that the boom arm is easily seen even in low light conditions.



DC 12V Automatic Barrier Gate 3S High Speed 2.5M Straight Boom Lightweight 0



Boom Barrier Gate Basic Kit Includes:

1*motor

1*2.55m straight arm

2*remote control

1*installation accessories





TECHNICIAL SPECIFICATIONS



Place of Origin
Shenzhen,China
Brand Name
SINOMATIC
Model Number
KSBG-E01
Power supply
DC 12-24V
Current
≤1A
Running time
≤3S
Remote control code
Rolling code
up to 100pcs remote controls
Working temperature
-20 ~60 ℃
Max. boom lenght
2.5 meter
Remote control distance
less than 50 meters
Time of up/down
3s
Warranty
 one year
Application
Indoor/outdoor





INSTALLATION STEPS



1. Before installation, please make sure there is no any obstacle within 2.5 meters of installation field.



2. Put the boom barrier on the ground, usually use the pen to mark out the position of 4 pieces expansion bolts. Drill holes with electric drill based on the marked position of 4 pieces expansion bolts. After finishment of drilling holes, put the 4 pieces bolts into the holes, or strike the bolts into
holes with hammer carefully. Then fasten the bolts well.



3.  Assemble the 2.5 meters boom arm into the shell of rod that is on boom barrier motor. Then fasten the bolts on the shell



4. Connection of power cable, press the remote control to test if it is working normally



Attention: Automatic boom gates are not for pedestrians



1.Before starting installation and operation or maintenance, cut off power supply first.


2.The product must be earthed, and an earth leakage is necessary on the power supply.


3.Do not change the original inside wiring.



4.If power failure, please switch off the power supply first, then open the door and rotate the handle on the motor manually to open the boom completely.



5.Keep the automatic control (push-button, remote control,etc)out of the reach of the children. The control system must be installed at a minimum height of 1.5m from the ground surface.



6.Use transmitters or button only where you can see the gate clearly.


7.Never open the door or the cover of the cabinet when the machine is working.


8.Don’t permit children to play on or around a gate.



FAQ



1. May I have samples for testing?

Yes, samples are available. The lead time will be 2-3 days for samples.



2. What's the MOQ ?

MOQ 1PC.



3. How to pay for samples, and how you delivery it?

Samples can be paid by Western union, T/T, Alibaba. Delivery by DHL, UPS or TNT, if you want to know the cost of delivery, please offer your detailed address with post code. Samples usually will be delivered within 3 working days, bulk orders within 25 working days.
