Infrared Photocell Automatic Parking Gate Road Traffic Boom Barrier Gate
  • Infrared Photocell Automatic Parking Gate Road Traffic Boom Barrier Gate
  • Infrared Photocell Automatic Parking Gate Road Traffic Boom Barrier Gate
  • Infrared Photocell Automatic Parking Gate Road Traffic Boom Barrier Gate
Infrared Photocell Automatic Parking Gate Road Traffic Boom Barrier Gate

Infrared Photocell Automatic Parking Gate Road Traffic Boom Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DZE-BL
Product Details
Running Speed:
1.5s~6s(speed Adjustable)
Color Optional:
Yellow, Grey, Golden Etc
Default Arm Length:
3 To 6 Meters
Motor Voltage:
24V
Net Weight:
50Kg
Gross Weight:
55kg（Not Include Boom）
Highlight:

infrared photocell automatic parking gate

,

100w automatic parking gate

,

Road Traffic Boom Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description

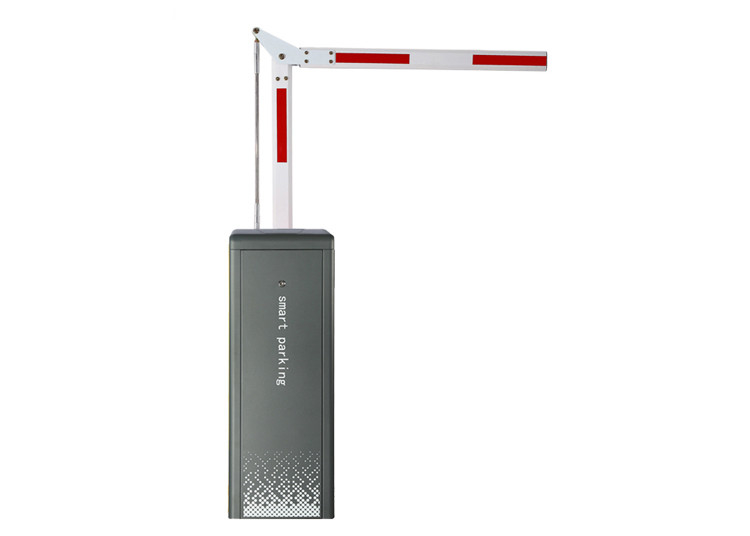

Infrared Photocell Automatic Parking Gate Road Traffic Boom Barrier Gate
Grey Color Case Parking Management Control System
Infrared Photocell Automatic Parking Gate Road Traffic Boom Barrier Gate 0
Functions & Features
  • DC brushless motor with movable connecting rod transmission mechanism and balance spring for stable, reliable operation
  • Motor life cycle exceeds 2,500,000 cycles; spring life cycle exceeds 500,000 cycles
  • Built-in delay auto-closing and obstacle detection with automatic reverse function
  • Compatible with infrared photocell, loop detector, and external radar systems
  • Built-in DC12V power output for accessory devices
  • Includes 433MHz learning code remote control for easy configuration
  • Power-off operation capability with external DC12V batteries (battery charging module optional)
  • Universal mounting holes for articulated or fence boom types with easy interchangeability
Technical Specifications
  • Operating temperature (motor): -35℃ to +80℃
  • Power supply input voltage: AC110-120V or AC200-240V
  • Controller input voltage: DC24V±10%, 10A
  • Motor rated power: 100W (200W Max)
  • Relative humidity: 30% to 80%, non-condensing
  • Remote control distance: ≥30 meters
  • Insulation grade: F
Product Advantages
  • Compatible with SN-DZE-BL (1.5-6s) mechanism
  • Left and right installation options (optional)
  • Alarm system for abnormal boom lifting detection
  • 24-hour continuous operation capability without overheating protection
  • Automatic speed reduction at limit positions
  • RS485 communication and TCP/IP network port connectivity
Model Specifications
Model SN-DZE-BL (speed 1.5-6s adjustable)
Running Speed 1.5s | 3s | 4s | 5/6s | 6s | 6s | 6s | 6s
Boom Type Straight | 90° folding | 180° folding | 2 fence | 3 fence
Max Boom Length 3m | 4.5m | 5m | 6m | 5m | 4m | 4.5m | 4m
Input Voltage AC 220V±10%, AC110V±10%
Frequency 50/60Hz
Motor Voltage DC24V
Enclosure Rating IP54
MTBF 2,500,000 cycles
Traffic Flow Application 1,500 cycles/24 hours
Working Temperature -35°C to +85°C
Motor Rated Power 100W
Max Motor Power 200W
Max Motor Speed 24r/min
Frequently Asked Questions
  • Are you a trade company or manufacturer for barrier gates?
    We are a manufacturer and welcome factory visits. OEM products are available.
  • Why does the barrier boom sometimes open automatically?
    Check the limit switch position and adjust if necessary. Refer to the Barrier Gate Manual or adjust the adjusting screw. Also verify spring intensity.
  • What is the remote control distance?
    Most 418 remote controls cover up to 100 meters, but we recommend using within 30-50 meters for safe, stable operation.
  • Can the barrier gate be used outdoors in extreme weather?
    Yes, with an operating temperature range of -40℃ to +75℃.
  • Is the installation direction changeable?
    Our DC motor barrier gates typically support this function.
