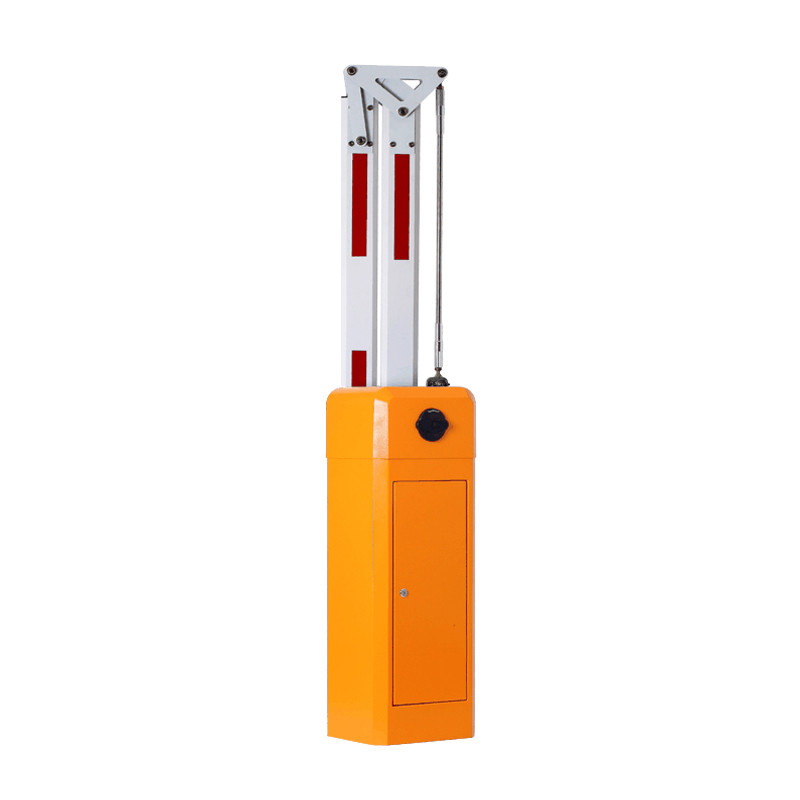

Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm
  • Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm
  • Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm
  • Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm
Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm

Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG102
Product Details
Opening/Closing Speed:
1s, 3s, 6s
Input Voltage:
AC100V~240V
Arm Type:
Straight, Telescopic, Folding, Fenceing
Rated Power:
120W
Remote Control Distance:
100 Meters
Arm Lenght:
Max. 6 Meter
Highlight:

6m Arm Parking Barrier gate

,

Articulated Arm Parking Barrier gate

,

180 Degree Folding Automatic Boom gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
US$280
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
3,000pcs per month
Product Description
Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm
The BG102 barrier gate incorporates advanced automatic technology and intelligent design, featuring humanized clutch and balance devices for enhanced safety and convenience. Ideal for both indoor and outdoor applications including parking areas, toll gates, commercial premises, shopping malls, hospitals, and more.
Advanced Features
Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm 0
Technical Specifications
Model 101-11 101-13 101-16 101-23 101-26 101-33 101-36 101-46 101-56
Running time 1s 3s 6s 3s 6s 3s 6s 6s 6s
Boom type Straight 90° folding 180° folding 2 fencing 3 fencing
Max boom length 3m 4.5m 6m 3m 4.5m 3m 4m 4.5m 4m
Boom dimension 45x80mm 45x100mm
Boom weight 3kg 4.5kg 6kg 6.5kg 8kg 9kg 11kg 7kg 7.5kg
Voltage 220V±10%, 110V±10%
Frequency 50/60HZ
Motor voltage 220V
Power 80W
Working temperature -35℃~+75℃
Protection grade IP54
Arm Type Options
Automatic Boom Parking Barrier Gate 180 Degree Folding Articulated Arm 1
Product Functions & Features
  • Manual release capability
  • Machine core with compression spring for enhanced safety
  • Die-casting aluminum alloy motor for precision and thermal efficiency
  • Motor cooling fan to prevent overheating
  • Double safety limit switches (photoelectric and motor memory sensors)
  • Automatic reversing on obstacle detection
  • Auto-closing function
  • Infrared photocell for anti-bumping (optional)
  • External and internal vehicle loop detector support (optional)
  • Traffic light interface
  • Wire control and 418MHz remote control
  • RS485 Communication module (optional)
Frequently Asked Questions
What's the monthly production capacity for barrier gate?
1000 units.
What is the warranty for the machine?
12 months.
When will you make the delivery?
Regular products: 2-7 days.
How does your factory control the quality?
Quality controlling from the beginning to the ending.
What is your minimum order quantity?
Any quantity is acceptable.
What are your payment terms?
30% deposit, 70% before delivery.
