Automatic Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG130 |

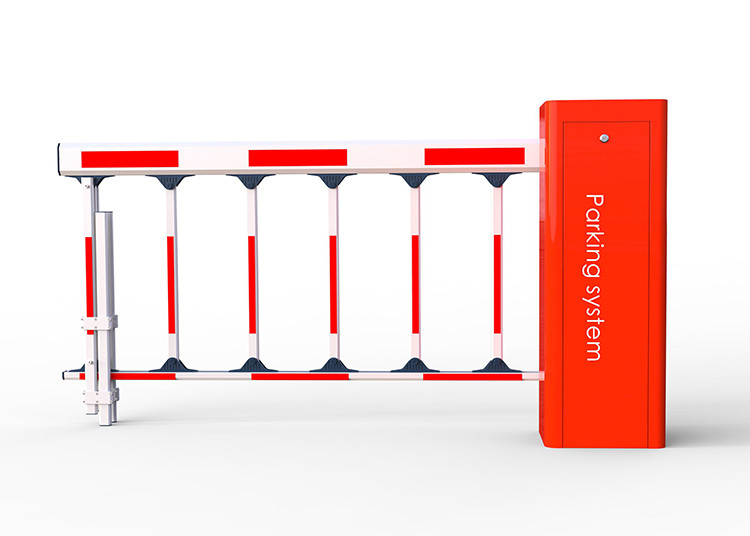

Two Fencing Automatic Parking Barriers Vehicle Access Red Color Boom Gate
Automatic Barrier Gate Quick details:
1. Rated voltage:DC24V
2.Working temperature(motor): -35℃~+85℃
3. Running speed:1.5s-6s
4. Rated power:140W
5. Remote control distance:≤100M(in the open place)
6. Max length of arm:6M straight arm/telescopic arm
Electrical installation, wiring diagram
1 All the electrical connections are done before delivery and please do not change it randomly.
2 Traffic light connector:it can connect power no more than 40W.
3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.
Technical data
| Working Temperature | -35℃~+85℃ |
| Power Supply | DC24V |
| Open/close Speed | 1.5 Sec to 6 sec(adjustable) |
| Rated Current | 8.58A |
| Rated Power | 140W |
| Motor No-load Speed | 1850rpm |
| Rated Rotating Speed | 1400rpm |
| Output Power | 56.8N.m |
| Humidity | ≤90% |
| Remote Control Distance | ≤100m (open, sunny weather) |
| Protection Grade | IP54 |
| Max Boom Length | 6M |
Functions&Features
1.The operation speed can be adjusted(1.5 to 6s).
2.Arm direction can be quickly interchanged.
3.Barrier gate up &down signal relay switch output.
4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.
7. Count mode interface.
8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.
9. High-sensitivity arm auto reverse function (intensity can be adjusted).
10. Parking system interface.
PROTECTION OF BOOM ARM
| Anti-collision protects boom arm |
| It will protect the boom arm not to be damaged once boom arm was collided by a vehicle |
| Safety--- Anti-hit by pressure resistance bounce |
| While moving down, boom arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable |
