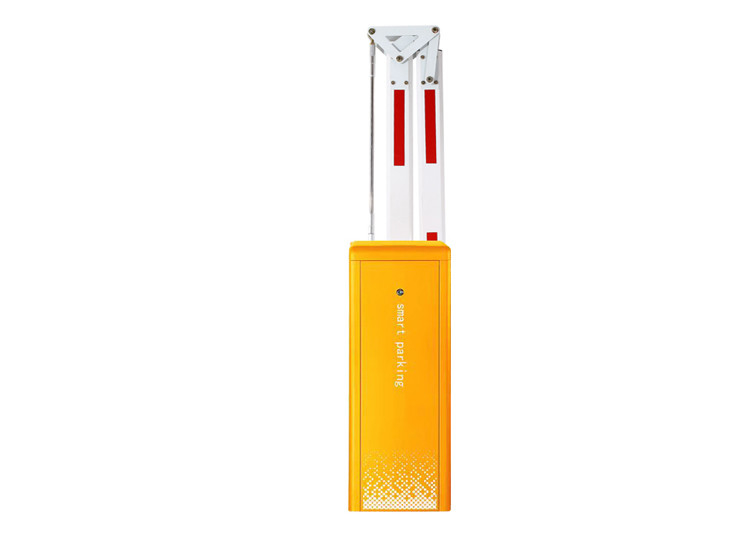

Parking System BLDC Motor Automatic Barrier Gate With 180 Degree Folding Pole
  • Parking System BLDC Motor Automatic Barrier Gate With 180 Degree Folding Pole
  • Parking System BLDC Motor Automatic Barrier Gate With 180 Degree Folding Pole
  • Parking System BLDC Motor Automatic Barrier Gate With 180 Degree Folding Pole
Parking System BLDC Motor Automatic Barrier Gate With 180 Degree Folding Pole

Parking System BLDC Motor Automatic Barrier Gate With 180 Degree Folding Pole

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DZE-BL
Product Details
Speed Range:
1.5s~6s(speed Adjustable)
Color:
Yellow, Grey, Golden Etc
Arm Length:
3 To 6 Meters
Motor Voltage:
24V
Net Weight:
50Kg
Gross Weight:
55kg（Not Include Boom）
Highlight:

Automatic Barrier Gate 100W

,

Folding Pole Automatic Barrier Gate

,

BLDC Motor automatic parking gate barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
Parking System BLDC Motor Automatic Barrier Gate With 180 Degree Folding Pole
DC24V brushless motor automatic parking gate barrier with 90 degree folding pole
Technical Specifications
  • Working temperature (motor): -35℃ to +80℃
  • Power supply input voltage: AC110-120V, or AC200-240V
  • Controller input voltage: DC24V±10%, 10A
  • Motor rated power: 100W (200W Max)
  • Relative Humidity: 30% to 80%, No condensation
  • Distance of remote control: ≥30M
  • Insulation grade: F
Product Features
  • Compatible with SN-DZE-BL(1.5-6s) mechanism
  • Left-installation and right-installation interchangeable (Optional)
  • Alarm system for abnormal lifting boom detection
  • Supports 24-hour continuous operation without overheating
  • Speed reduction when boom reaches limited position
  • RS485 communication and TCP/IP network port
Parking System BLDC Motor Automatic Barrier Gate With 180 Degree Folding Pole 0
Detailed Specifications
Model SN-DZE-BL (speed 1.5-6s adjustable)
Running Speed 1.5s | 3s | 4s | 5/6s | 6s | 6s | 6s | 6s
Boom Type straight | 90° folding | 180° folding | 2 fence | 3 fence
Max Boom Length 3m | 4.5m | 5m | 6m | 5m | 4m | 4.5m | 4m
Input Voltage AC 220V±10%, AC110V±10%,50/60HZ
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
MTBF 2,500,000 times
Traffic Flow Application 1500 times / 24 hours
Working Motor Power -35°C to +85°C
Motor Rated Power 100W
Max Motor Power 200W
Max Motor Speed 24r/min
Advanced Functions & Features
  • DC brushless motor with movable connecting rod transmission mechanism and balance spring for stable, reliable operation
  • Motor life cycle: 2,500,000+ cycles | Spring life cycle: 500,000 cycles
  • Built-in delay auto-closing and reverse function upon obstacle detection
  • Supports infrared photocell, loop detector, and external radar with built-in DC12V power output
  • Standard 433MHZ learning code remote control for easy configuration
  • Emergency power operation with external DC12V batteries (battery charging module optional)
  • Universal mounting holes for articulated or fence boom types with easy interchangeability
Frequently Asked Questions
  • Are you a trade company or manufacturer for barrier gates?
    We are a manufacturer and welcome factory visits and OEM products.
  • Why does the barrier boom sometimes open automatically?
    Check if the limit switch is properly positioned and adjust if necessary. Refer to the Barrier Gate Manual or adjust the adjusting screw. Also verify spring intensity.
  • What is the remote control distance?
    Most 418 remote controls cover 100 meters, but we recommend using within 30-50 meters for safe, stable operation.
  • Can the barrier gate be used outdoors in extreme weather?
    Yes, operating temperature range is -40℃ to +75℃.
  • Is the installation direction changeable?
    Our DC motor barrier gates typically support this function.
