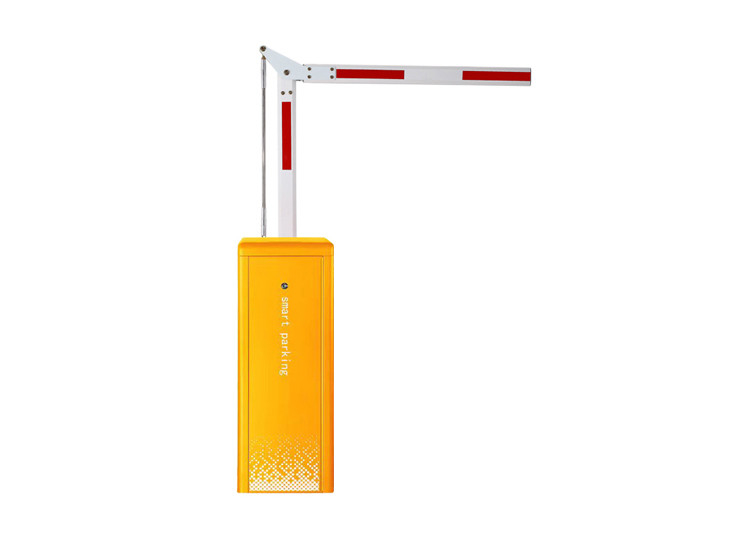

DC24V Brushless Motor Automatic Parking Gate Barrier With 90 Degree Folding Pole
  • DC24V Brushless Motor Automatic Parking Gate Barrier With 90 Degree Folding Pole
  • DC24V Brushless Motor Automatic Parking Gate Barrier With 90 Degree Folding Pole
  • DC24V Brushless Motor Automatic Parking Gate Barrier With 90 Degree Folding Pole
DC24V Brushless Motor Automatic Parking Gate Barrier With 90 Degree Folding Pole

DC24V Brushless Motor Automatic Parking Gate Barrier With 90 Degree Folding Pole

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DZE-BL
Product Details
Speed Range:
1.5~6(s)
Color:
Yellow, Grey, Golden Etc
Arm Length:
3 To 6 Meters
Communication:
RS485, TCP/IP
Motor Voltage:
24V
Net Weight:
50Kg
Highlight:

DC24V Automatic Parking Gate Barrier

,

Folding Pole Automatic Parking Gate Barrier

,

90Degree pole automatic parking gate barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union,
Supply Ability
3,000pcs per month
Product Description
DC24V Brushless Motor Automatic Parking Gate Barrier
DC24V brushless motor automatic parking gate barrier with 90 degree folding pole
Product Overview
  • Compatible with SN-DZE-BL(1.5-6s) mechanism
  • Left-installation and right-installation interchangeable (Optional)
  • Alarm system for abnormal lifting boom detection
  • Supports 24-hour continuous operation without overheating
  • Speed reduction when boom reaches limited position
  • RS485 communication and TCP/IP network port
DC24V Brushless Motor Automatic Parking Gate Barrier With 90 Degree Folding Pole 0
Technical Specifications
Model SN-DZE-BL (speed 1.5-6s adjustable)
Running Speed Options 1.5s | 3s | 4s | 5/6s | 6s | 6s | 6s | 6s
Boom Type Options Straight | 90° folding | 180° folding | 2 fence | 3 fence
Max Boom Length 3m | 4.5m | 5m | 6m | 5m | 4m | 4.5m | 4m
Input Voltage AC 220V±10%, AC110V±10%, 50/60HZ
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
MTBF 2,500,000 times
Traffic Flow Application 1500 times / 24 hours
Motor Rated Power 100W
Max Motor Power 200W
Max Motor Speed 24r/min

Additional Specifications:

  • Working temperature (motor): -35℃ to +80℃
  • Power supply input voltage: AC110-120V or AC200-240V
  • Controller input voltage: DC24V±10%, 10A
  • Motor power: 200W MAX
  • Relative Humidity: 30%-80%, No condensation
  • Remote control distance: ≥30M
  • Insulation grade: F
Functions & Features
  • DC brushless motor with movable connecting rod transmission mechanism and balance spring for stable, reliable operation
  • Motor life cycle: 2,500,000+ times; Spring life cycle: 500,000+ times
  • Built-in delay auto-closing and reverse on obstacle detection
  • Supports infrared photocell, loop detector, and external radar with built-in DC12V power output
  • Standard 433MHZ learning code remote control for easy configuration
  • Battery backup capability with optional charging module for power outage operation
  • Multiple boom types easily interchangeable on single machine
Frequently Asked Questions
Are you a trade company or manufacturer for barrier gates?
We are a manufacturer and welcome factory visits and OEM products.
Why does the barrier boom sometimes open automatically?
Check if the limit switch is in the correct position and adjust if necessary. Refer to the Barrier Gate Manual or adjust the adjusting screw. Also check spring intensity.
What is the remote control distance?
Most 418 remote controls cover 100 meters, but we recommend using within 30-50 meters for safe and stable operation.
Can the barrier gate be used outdoors in extreme weather?
Yes, the working temperature range is -40℃ to +75℃.
Is the installation direction changeable for barrier gates?
Our DC motor barrier gates typically support this function.
