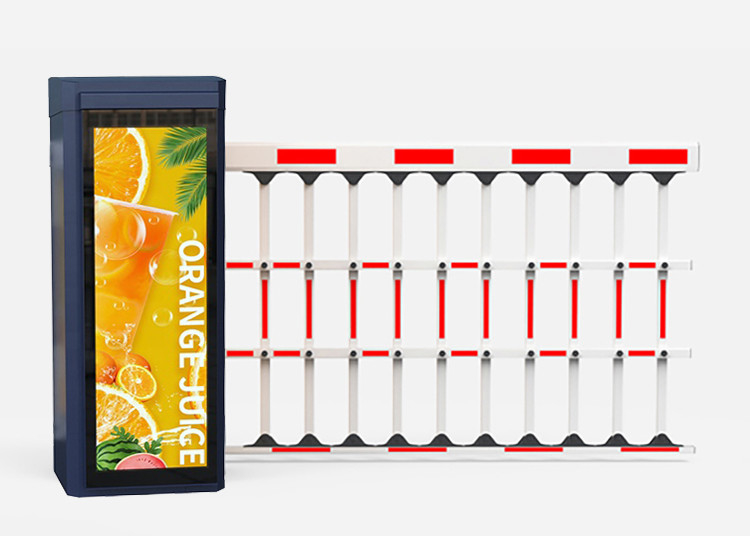

Advertising Airborne Boom Barrier Gate Remote Control DC Brushless Motor
  • Advertising Airborne Boom Barrier Gate Remote Control DC Brushless Motor
  • Advertising Airborne Boom Barrier Gate Remote Control DC Brushless Motor
  • Advertising Airborne Boom Barrier Gate Remote Control DC Brushless Motor
Advertising Airborne Boom Barrier Gate Remote Control DC Brushless Motor

Advertising Airborne Boom Barrier Gate Remote Control DC Brushless Motor

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-AD01
Product Details
Control Voltage:
DC24V
Working Temperature:
-35℃~+65℃
Power Supply:
DC24V， 8.58A
Open/Close Time:
3 Sec ~8 Sec
Rated Power:
200W
Arm Color:
Red/white, Black/yellow Etc
Highlight:

200W Airborne Boom Barrier Gate

,

Advertising Airborne Boom Barrier Gate

,

Brushless Motor Airborne Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
1,000pcs per month
Product Description
Advertising Airborne Boom Barrier Gate Remote Control DC Brushless Motor
CE Remote Control Traffic Parking DC Brushless Motor Advertising Boom Barrier Gate
Product Specifications
Working temperature-30℃~+65℃
Power supply24VDC
Open/close speed3 sec to 8sec adjustable
Rated power200W
Driving methodDC brushless motor
Humidity≤90%
Remote distance≤100m (open place, sunny weather)
Protection gradeIP54
Motor no-load speed2500r/min
Max boom length4.5m
CE, ISOYES
Advertising Airborne Boom Barrier Gate Remote Control DC Brushless Motor 0
Our Advantages
  • 3 second to 8 second open/close time adjustable
  • Advertising DC brushless motor with 5 million MCBF
  • 5 tension spring balance for heavy duty and enhanced durability
  • LED lights with time switch for customizable lighting schedules
  • Simplified design for easy installation and maintenance, reducing labor costs
  • 1 year standard warranty with excellent after-sales service
  • 24/7 customer support for optimal assistance
Functions and Features
  • Adjustable running speed from 3sec to 8sec
  • Manual operation via motor wheel during power outage with automatic reset when power returns
  • Curved crank arm three-link movement structure for stable operation
  • Wireless remote control for opening and closing
  • Arm auto-reverse with adjustable force
  • Infrared photocell compatibility
  • Loop detector compatibility
  • Parking management system integration with open/close signals
  • Traffic light port (2A12V/220VAC, supports lights under 40W)
  • Limit signal output for car parking management systems (COM/NO/NC)
  • Built-in RS485 or CAN internet communication interface
  • Counting interface
  • 24V backup battery interface with solar power charging capability
  • Dry contact signal output for car parking systems (COM,NC,NO)
  • Adjustable auto-delay when closing
Package Details
Packed in bubble wrap with reinforced carton outer packing for maximum protection during shipping.
Packing List
Machine coreGood in working1Main part
Barrier armStraight, folding or fence arm1Optional
Boom press board1Fixing the boom
Self-tapping screwST4*16Fixing the boom
Self-tapping screwST3*104Fixing the boom
Supporting pole1Supporting the boom
Expansion boltM16*1504Fixing the case
Hexagonal Inner ScrewM8*354Fixing the case
Clutch key1Clutch device
Case Key2For case and cover locking
Balance springAccording to length of barrier arm1For spare usage
Remote emitterLess than 30m range1For remote control
Remote control handlesLess than 30m range2For remote control
InstructionIn English1For reference
RS485 interface1Optional
Disc1Optional
Communication Module1Optional
Cover head13 years without fading
Expansion nutM84Fixing the supporting pole
