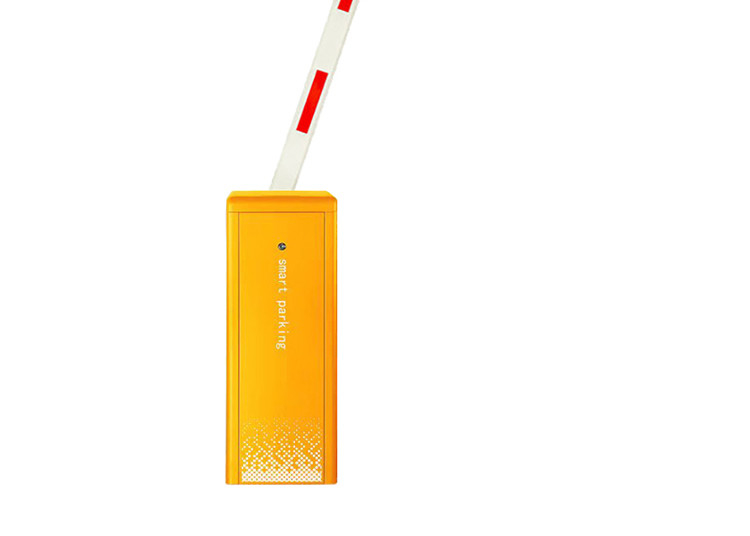

Traffic Control Private Car Parking Boom Barrier IP54 Built In Delay Auto Closing
  • Traffic Control Private Car Parking Boom Barrier IP54 Built In Delay Auto Closing
  • Traffic Control Private Car Parking Boom Barrier IP54 Built In Delay Auto Closing
  • Traffic Control Private Car Parking Boom Barrier IP54 Built In Delay Auto Closing
Traffic Control Private Car Parking Boom Barrier IP54 Built In Delay Auto Closing

Traffic Control Private Car Parking Boom Barrier IP54 Built In Delay Auto Closing

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DZE-BL
Product Details
Motor:
BLDC
Speed Range:
1.5~6(s)
Color:
Yellow, Grey, Golden Etc
Arm Length:
3 To 6 Meters
Arm Type:
Round, Straight, Foldable, Fence
Communication:
RS485, TCP/IP
Highlight:

Traffic Control Car Parking Boom Barrier

,

IP54 Car Parking Boom Barrier

,

200W Vehicle Access Boom Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,
Supply Ability
3,000pcs per month
Product Description
Traffic Control Private Car Parking Boom Barrier IP54 Built In Delay Auto Closing

China Factory Price IP54 Traffic Control Private Car Parking Boom Barrier

The product consists of five parts: cabinet cap, cabinet body, transmission mechanism, control unit, and boom. It distinguishes between left and right machines and is used in parking lot entrance and exit control systems. This product is divided into three types: straight boom barrier, folding boom barrier and fence boom barrier.

Traffic Control Private Car Parking Boom Barrier IP54 Built In Delay Auto Closing 0
Technical Specifications
Model SN-DZE-BL (speed 1.5-6s adjustable)
Running Speed 1.5s | 3s | 4s | 5/6s | 6s | 6s | 6s | 6s
Boom Type straight | 90° folding | 180° folding | 2 fence | 3 fence
Max Boom Length 3m | 4.5m | 5m | 6m | 5m | 4m | 4.5m | 4m
Input Voltage AC 220V±10%, AC110V±10%,50/60HZ
Frequency 50/60HZ
Motor Voltage DC24V
Enclosure Rating IP54
MTBF 2,500,000 times
Traffic Flow Application 1500 times / 24hours
Working Motor Power -35°C~+85°C
Max Motor Power 200W
Max Motor Speed 24r/min
Additional Specifications
  • Working temperature (motor): -35℃~ + 80℃
  • Power supply input voltage: AC110~120V, or AC200~240V
  • Controller input voltage: DC24V±10%, 10A
  • Motor power: 200W MAX
  • Relative Humidity: 30%~80%, No condensation
  • Distance of remote control: L≥30M
  • Insulation grade: F
Functions & Features
  • Driven by DC brushless motor, equipped with movable connecting rod transmission mechanism and balance spring, stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times.
  • Built-in delay auto-closing and reverse on an obstacle in case of resistance.
  • Support infrared photocell, loop detector, and external radar, and built-in DC12V power output.
  • Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration.
  • When power off, the barrier gate can still work by adding 2 external DC12V batteries. And battery charging module is optional, when power on, the battery will automatically charge.
  • Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.
Product Details
Model NO.
SN-DZE-BL
Sensing Method
Electric
Application
Access Control System
Movement
Single Movement
Type
Barrier Gate
Control Mode
Automatic
Communication Interface
RS485
Power Supply
AC100V~240V, DC24V
Control Signal
Relay(Dry Contact)
IP Rating
54
Rated Power
200W
Speed
1.5s~6s (Adjustable)
Remote Control Distance
More Than 30 Meters
Arm Length
1m~6m (Default)
Working Temperature
-35~85
Arm Type
Straight, Folding, Fence
Housing Color
Yellow, Red, Grey etc
Trademark
SINOMATIC
Transport Package
Carton
Specification
CE
Origin
Shenzhen China
HS Code
8608009000
Frequently Asked Questions
  • Are you a Trade company or manufacturer for barrier gate?
    We are a manufacturer, welcome to visit our factory, and welcome OEM products.
  • Sometimes, Why the barrier boom would open automatically?
    Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
  • How long the Remote-control distance?
    In general, most of 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. We recommends using the remote control within 30 meters or 50 meters.
  • Can the barrier gate be used outdoors, even in extreme weathers?
    Yes, the working temperature is -40℃~+75℃.
  • Is it changeable for the installation direction of the barrier gates?
    Usually Our DC motor barrier gate can realize this functions.
