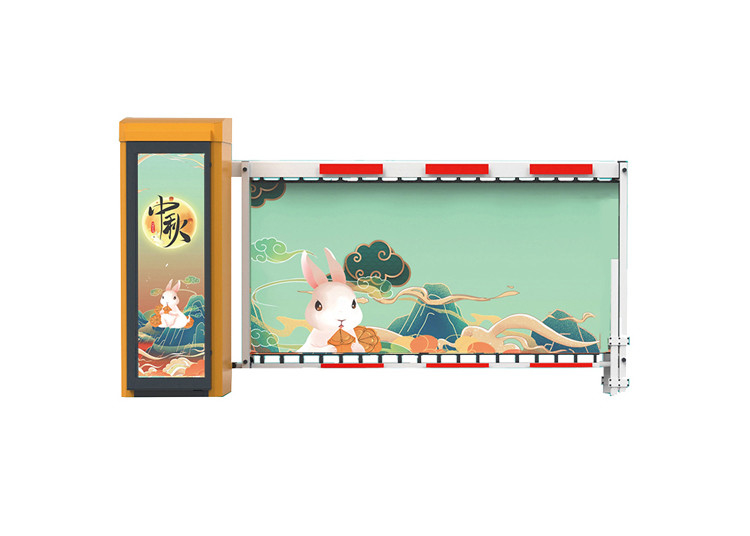

Auto Reverse Vehicle Entrance Barriers DC24V With RS485 Communication Interface
  • Auto Reverse Vehicle Entrance Barriers DC24V With RS485 Communication Interface
  • Auto Reverse Vehicle Entrance Barriers DC24V With RS485 Communication Interface
  • Auto Reverse Vehicle Entrance Barriers DC24V With RS485 Communication Interface
Auto Reverse Vehicle Entrance Barriers DC24V With RS485 Communication Interface

Auto Reverse Vehicle Entrance Barriers DC24V With RS485 Communication Interface

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-AD02
Product Details
Case Material:
1.5mm Cold Roller Steel Plate
Surface Treatment:
Antirust Spraying
Case Color:
Yellow, Grey, Orange, Red, Blue Etc
Arm Type:
Advertising Arm
Rated Voltage:
DC 24V
Function:
Advertising
Highlight:

RS485 Communication Interface Vehicle Entrance Barriers

,

Vehicle Entrance Barriers DC24V

,

RS485 Communication Interface Parking Entrance Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
1,000pcs per month
Product Description
Auto Reverse Vehicle Entrance Barriers DC24V With RS485 Communication Interface
High Sensitivity Arm Auto Reverse Function RS485 Communication Interface Advertising Gate Barrier
Technical Specifications
  • Working temperature (motor): -35℃ to +85℃
  • Rated voltage: DC24V
  • Running speed: 3s-10s
  • Rated current: 9.5A
  • Rated power: 250W
  • No-load speed: 2500rpm
  • Rated speed: 1800rpm
  • Output Power: 120N.m
  • Relative humidity: ≤90%
  • Remote control distance: ≤100M (in open place)
  • IP Degree: IP44
  • Max length of arm: 4.5M
Auto Reverse Vehicle Entrance Barriers DC24V With RS485 Communication Interface 0
Key Features
  • Adjustable running speed from 3 seconds to 10 seconds
  • Motor wheel opens barrier when power off, automatic reset when power on
  • Curved crank arm three-link movement structure for stable operation
  • Wireless remote control open and close functionality
  • Arm auto reverse with adjustable force
  • Infrared photocell compatibility
  • Loop detector compatibility
  • Parking management system integration with open/close signals
  • Traffic light port (2A12V/220VAC, supports traffic lights under 40W)
  • Limit signal output for car parking management systems (COM/NO/NC)
  • Delay closing arm function
  • Built-in RS485 or CAN internet communication interface
  • Counting interface
  • 24V backup battery interface (solar power compatible)
Arm Length Speed Comparison
Menu Parameter Unit Arm Length UP DOWN
H00-00 | H00-02 | H00-04 4.5M 30 | 35 | 8 30 | 42 | 8
H00-01 | H00-03 | H00-05 3.8M 35 | 35 | 8 35 | 42 | 8
H00-01 | H00-03 | H00-05 3M 65 | 30 | 10 60 | 35 | 10
* Parameters based on our company's arm specifications
Product Advantages
  • 3 to 8 second open/close time adjustable
  • Advertising DC brushless motor with 5 million MCBF
  • 5 tension spring balance for heavy duty and durability
  • LED lights with time switch for customizable lighting schedules
  • Simplified design for easy installation and maintenance
  • Fast finishing time: 3-5 days for small orders
  • OEM Brand, Logo, and Label customization available
  • 1-year standard warranty with excellent after-sales service
  • 24/7 customer support available
Product Packaging
Packed in bubble wrap with reinforced carton outer packing for maximum protection during shipping.
Packing List
Name Specifications Quantity Remarks
Machine coreGood in working1Main part
Barrier armStraight, folding or fence arm1Optional
Boom press board1Fixing the boom
Self-tapping screwST4*16Fixing the boom
Self-tapping screwST3*104Fixing the boom
Supporting pole1Supporting the boom
Expansion boltM16*1504Fixing the case
Hexagonal Inner ScrewM8*354Fixing the case
Clutch key1Clutch device
Case Key2For case and cover locking
Balance springAccording to length of barrier arm1For spare usage
Remote emitterLess than 30m range1For remote control
Remote control handlesLess than 30m range2For remote control
InstructionIn English1For reference
RS485 interface1Optional
Disc1Optional
Communication Module1Optional
Cover head13 years without fading
Expansion nutM84Fixing the supporting pole
