250W LED Background Advertising Playing Automatic Fencing Barrier Gate
  • 250W LED Background Advertising Playing Automatic Fencing Barrier Gate
  • 250W LED Background Advertising Playing Automatic Fencing Barrier Gate
  • 250W LED Background Advertising Playing Automatic Fencing Barrier Gate
250W LED Background Advertising Playing Automatic Fencing Barrier Gate

250W LED Background Advertising Playing Automatic Fencing Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-AD01
Product Details
Springs:
Max 5 Pcs
Arm Type:
Fencing
Rated Voltage:
DC 24V
Arm Color:
Red/white, Black/yellow Etc
Housing Material:
Stainless Steel/mild Steel
Housing Color:
Yellow, Grey
Highlight:

250W Automatic Barrier Gate

,

Mold Die Casting Automatic Barrier Gate

,

Double Row Tension Springs Balance Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , D/A, L/C, D/P
Supply Ability
1,000pcs per month
Product Description

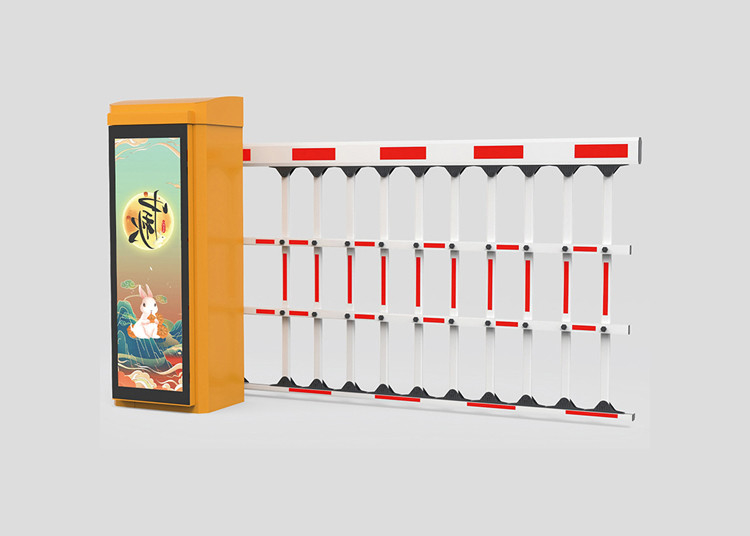

250W LED Background Advertising Playing Automatic Fencing Barrier Gate
This heavy-duty automatic barrier gate is engineered for high-traffic environments where traditional gates are impractical. Featuring advanced mold design technology and die-casting manufacturing, it delivers exceptional performance with double-row five tension springs for optimal balance and longevity.
Technical Specifications
Parameter Specification
Working Temperature -35℃ to +85℃
Power Supply 24/100/240VAC, 50/60Hz
Open/Close Speed 3-10 seconds (adjustable)
Rated Power 250W
Driving Method DC Motor
Humidity <90%
Remote Control Distance <100m (open, sunny weather)
Protection Grade IP44
Motor No-load Speed 2500r/min
Max Boom Length 4.5M
Advanced Features
  • Adjustable running speed from 3 to 10 seconds
  • Manual operation capability during power outages with automatic reset
  • Curved crank arm three-link movement structure for stable operation
  • Wireless remote control operation
  • Auto-reverse function with adjustable force sensitivity
  • Infrared photocell compatibility
  • Loop detector integration
  • Parking management system connectivity
  • Traffic light port support (2A12V/220VAC)
  • Limit signal output for parking management systems
  • RS485 or CAN network communication interface
  • Counting interface for traffic monitoring
  • 24V backup battery interface with solar charging capability
  • Automatic delay when closing (adjustable)
250W LED Background Advertising Playing Automatic Fencing Barrier Gate 0
Arm Specifications and Performance
Arm Type Arm Length (L) Operation Time (S) Center Height (H)
Advertising Arm 4.5m 8S H=1.04M (Height of arms center above ground)
Standard Arm 3.8m 6S H=1.04M
Standard Arm 3m 4S H=1.04M
Function Setting Instructions
To configure functions, press the menu button on the control panel. The digital display will show H00-00 or similar codes. Refer to the function parameter table to enter required settings. For example, H00-00 adjusts opening speed. Press confirm to enter parameter setting mode, use up/down keys to adjust values, then press confirm to save. All other functions follow the same configuration process.
